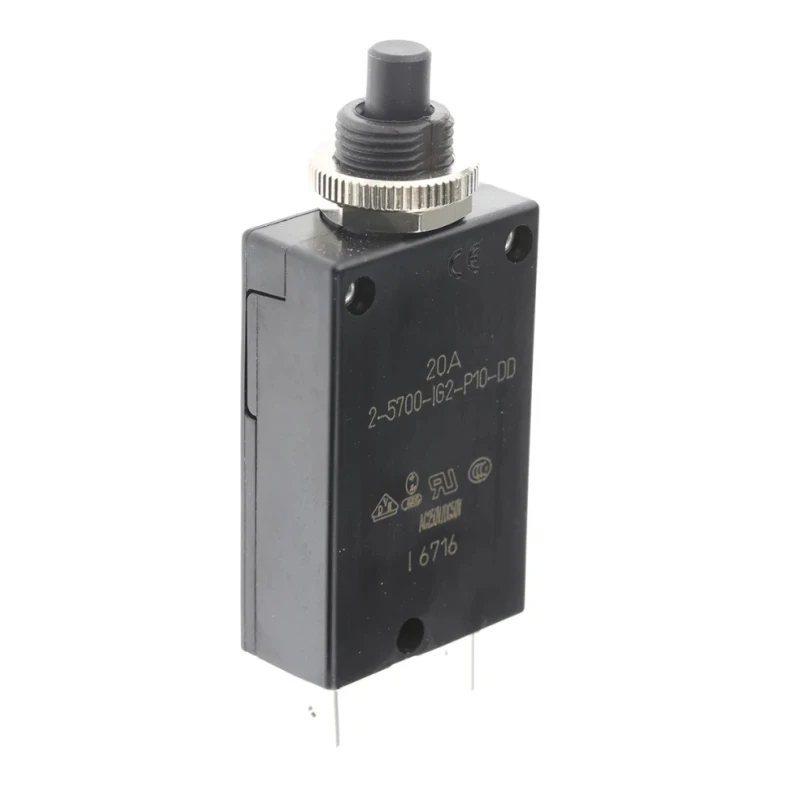

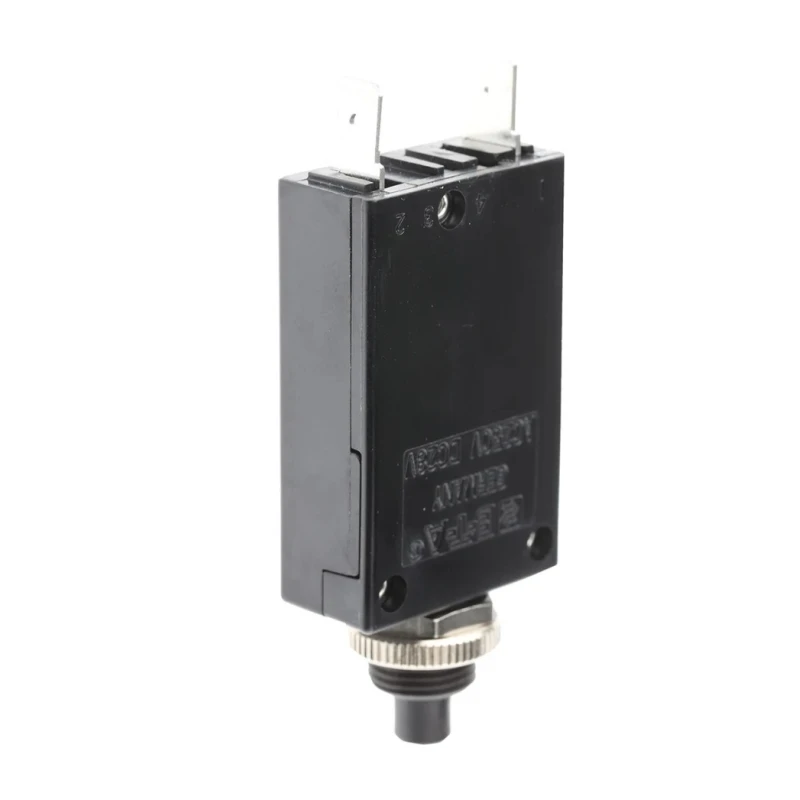

ETA 2 5700 Thermal Circuit Breaker 20A Current Rating 1-Pole Panel Mount 2-5700-IG2-P10-DD-000040-20A

The ETA 2-5700-IG2-P10-DD-000040-20A thermal circuit breaker is engineered for industrial, laboratory, and commercial applications requiring reliable circuit protection. This 1-pole device is designed specifically for panel mounting using a 3/8 inch or M12 moulded thread-neck single-hole system, suited for motors, transformers, power supplies, and extra low voltage uses.

The breaker features a thermal tripping mechanism with a trip time characterized as medium, providing dependable overload and short circuit protection. Its compact dimensions - 15.7 mm width and 44 mm height - allow for space-saving installations in electrical panels.

The 6.3-0.8 mm blade terminals ensure firm electrical connections with ease of installation. The tease free, trip free mechanism increases the lifespan and safety of the breaker by preventing accidental trips and providing consistent performance over time. The push-to-release and push-to-reset button actuator simplifies manual control while the on/off status indication offers immediate circuit condition insight.

Rated for 20A current, this device supports up to 250V AC and 50V DC voltage systems, with a breaking capacity of 25A, meeting stringent IEC and CE standards. It also complies with RoHS environmental requirements, confirming its quality and safety standards. Made in Tunisia, the breaker’s robust design enables a typical operational life of 5000 cycles at twice the nominal current rating.

Applications include use in motors, transformers, power supplies, and extra low voltage systems commonly found in industrial, HVAC, manufacturing, and electrical assembly environments. Its compact and efficient design makes it suited for automated control panels and electrical distribution installations.

This thermal circuit breaker features a panel mount design with a 3/8 inch or M12 moulded thread-neck single-hole. Includes 6.3-0.8 mm blade terminals for secure electrical connections. Tease free, trip free mechanism for enhanced durability.

Push-to-release/push-to-reset button actuator for easy manual operation. On/off status indication for instant circuit feedback. Overload and short circuit protection with 25A breaking capacity. Compact dimensions of 15.7mm width and 44mm height.

Typical life of 5000 operations at twice nominal current. Explore more ETA Thermal Circuit Breakers and electrical protection devices at EnvMart for reliable and industrial-grade solutions.
