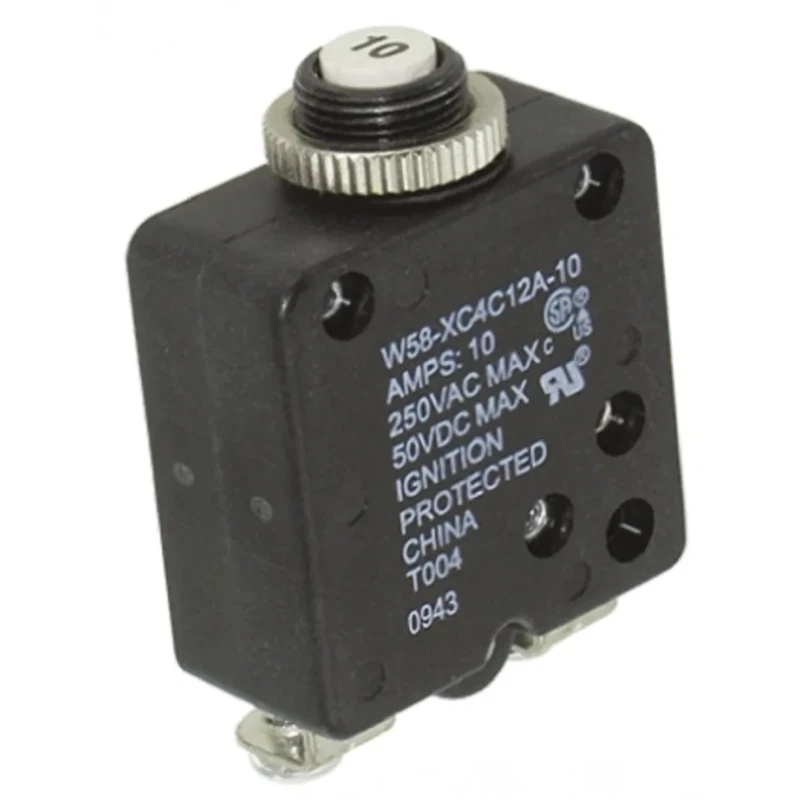

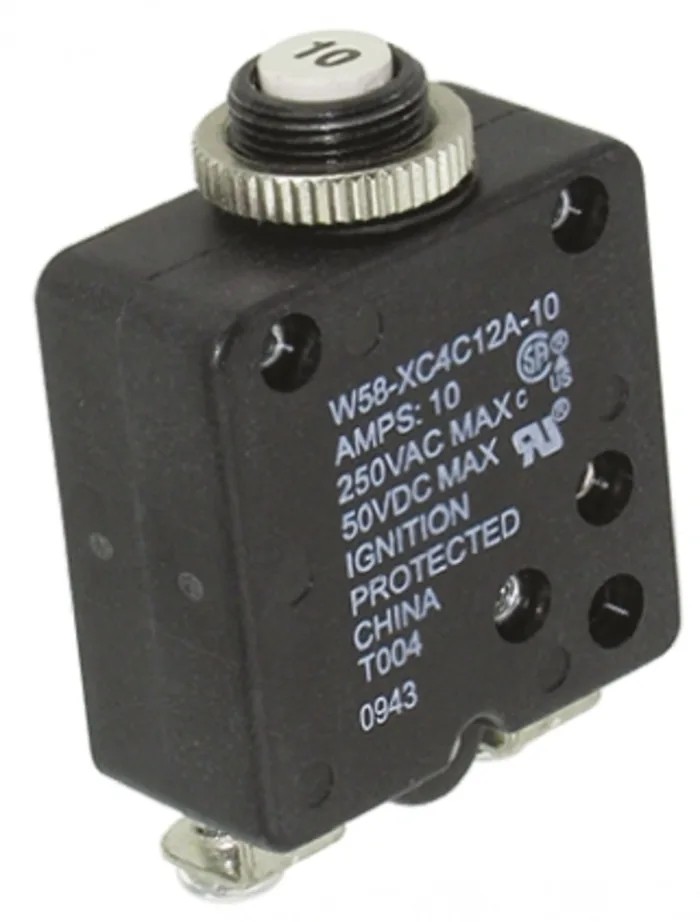

TE Connectivity W58 Thermal Circuit Breaker 10A Current Rating 1-Pole Direct Mount W58-XC4C12A-10

Name: TE Connectivity W58 Thermal Circuit Breaker 10A Current Rating 1-Pole Direct Mount W58-XC4C12A-10
Brand: TE Connectivity
SKU: 131350
Price: 11.94 USD
Availability: InStock



Category Thermal Circuit Breaker Brand TE Connectivity Condition New

Specifications

Country of Origin	China
Brand	TE Connectivity
Height	46.11mm
Model	W58-XC4C12A-10
Depth	34.93mm
Width	16.76mm
Mount Type	Direct
Current Rating	10A
Series	W58
Terminal type	Screw
Breaking Capacity	1000A
Number of Poles	1
Standards/Approvals	RoHS, CE
Rated AC Voltage	250V ac
Rated DC Voltage	50V dc
Tripping Characteristics	May trip between 101% and 145%, Must trip at 145% at 25°C
Tripping Mechanism	Thermal
Reset Actuator Type	Toggle Switch
Mount Hole Size	18.8 mm
Break Time	Medium

Key Features

Rated for 250V AC and 50V DC operational voltage.
Breaking capacity of 1000A with medium break time for reliable protection.
Thermal tripping mechanism with adjustable trip characteristics between 101% and 145% at 25°C.
Mount hole size of 18.8 mm and screw terminal type for easy installation.
Includes toggle switch for manual reset of the breaker.
RoHS and CE compliant, suitable for industrial and commercial electrical applications.
Originates from China, ensuring quality manufacturing standards.

Product Description

TE Connectivity W58-XC4C12A-10 Thermal Circuit Breaker is a high-quality electrical protection device designed for industrial, commercial, and automation applications. Featuring a 10A current rating with a single pole configuration and direct mount, this breaker offers dependable safety against overcurrent conditions in circuits rated up to 250V AC and 50V DC.

This thermal circuit breaker uses a thermal tripping mechanism that operates with precision between 101% and 145% of rated current, ensuring timely disconnection to prevent electrical faults. The toggle switch reset actuator enables easy manual resetting after tripping, enhancing operational convenience in various settings.

The compact form factor with width of 16.76mm, height of 46.11mm, and depth of 34.93mm allows for efficient space utilization in panel designs. The mounting hole size of 18.8 mm and screw terminal connections provide secure installation and robust electrical contact.

Rated for breaking capacity of 1000A and medium break time, this breaker balances safety with performance, suitable for sensitive electrical components protection. It conforms to RoHS and CE standards, reflecting compliance with international safety and environmental standards.

Specifically engineered by TE Connectivity, a trusted leader in electrical components, this W58 series breaker is ideal for applications in industrial automation, electrical distribution, HVAC systems, and other commercial installations requiring reliable overcurrent protection.

Rated for 10A current at 250V AC and 50V DC. Single pole configuration with direct mount type. Thermal tripping mechanism with toggle switch reset. Breaking capacity of 1000A with medium break time. Compact dimensions with screw terminal type.

RoHS and CE compliant for safety and environmental standards. Manufactured in China with quality assurance. Explore TE Connectivity and Thermal Circuit Breaker categories on EnvMart for advanced electrical protection solutions tailored to industrial and commercial needs.
