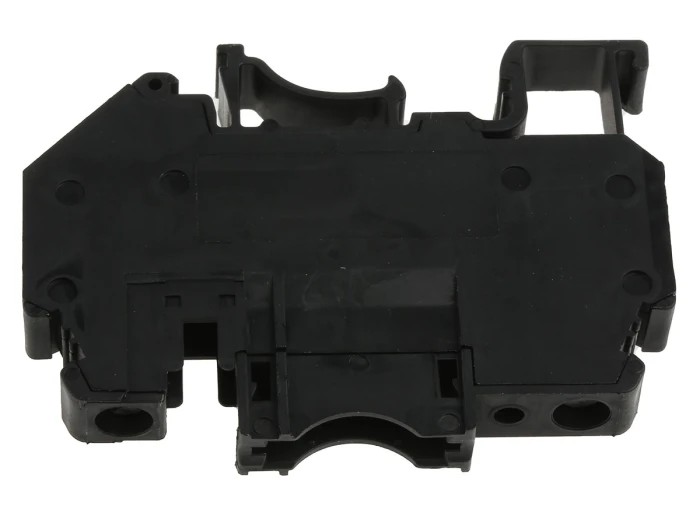

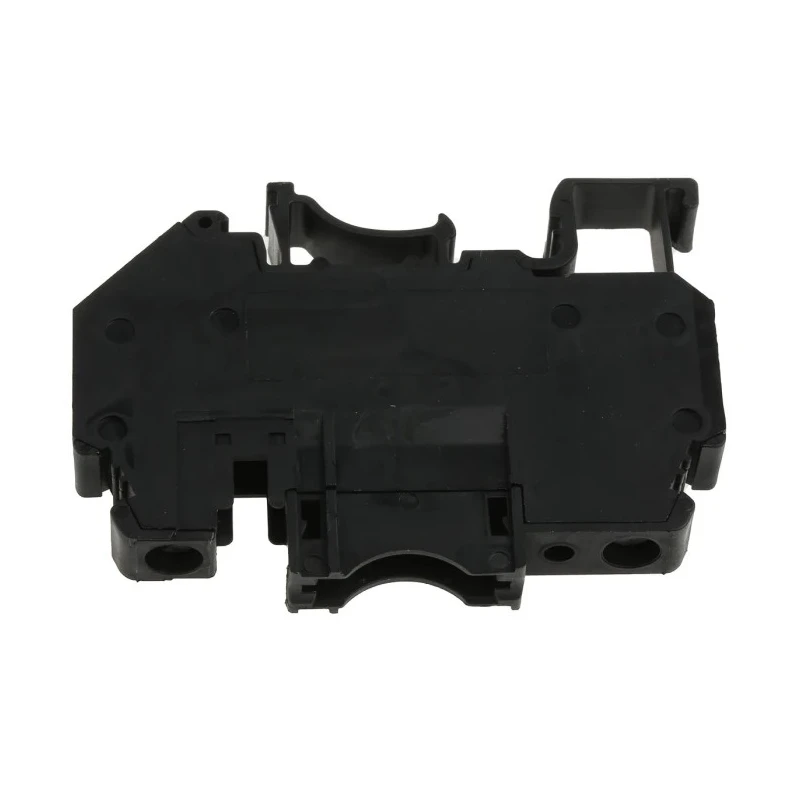

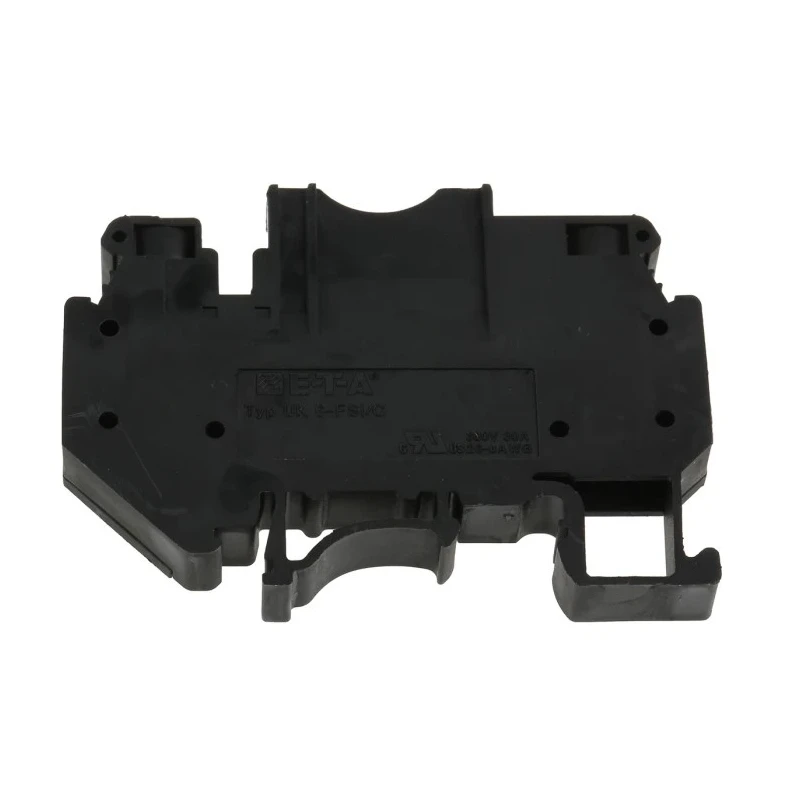

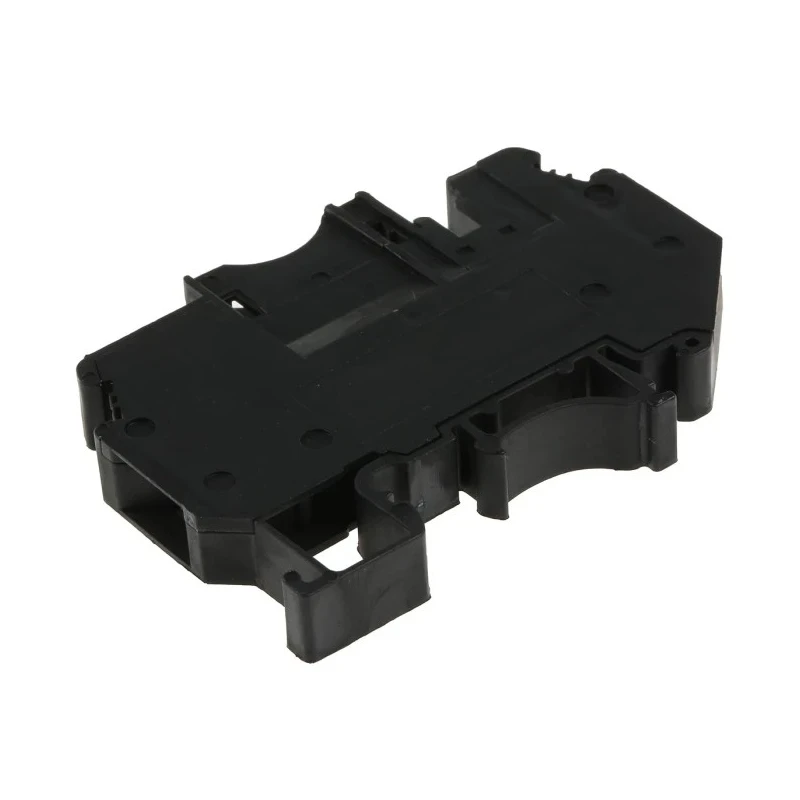

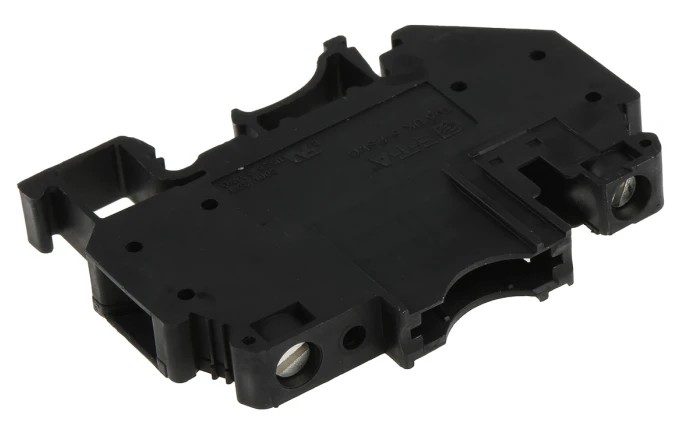

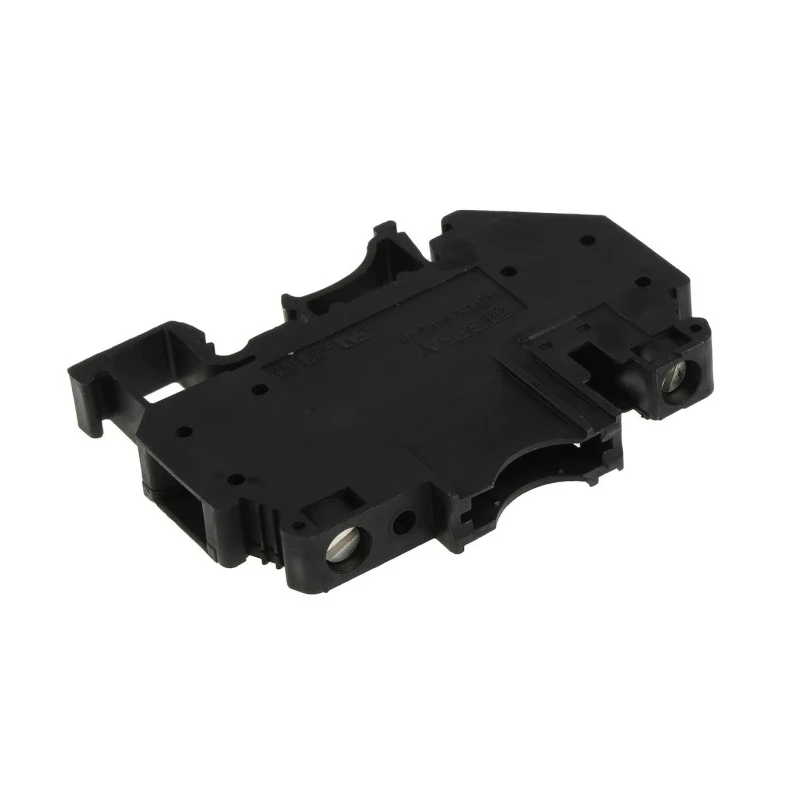

ETA 0.1 to 10 A Terminal Block for use with 1180 X222.233.01 1180 BASE

ETA X222.233.01 1180 BASE Terminal Block is an essential electrical accessory for the 1180 series thermal automotive circuit breakers. It supports a wide current range from 0.1 to 10 Amperes, making it versatile for diverse industrial and electrical applications.

This terminal block complies with various international standards such as IEC 60664A, UL 1077, CSA, VDE, and others ensuring high reliability and safety. The product features a miniaturised single pole circuit breaker classification S/TO with a thermal magnetic convertible mechanism for precise and reliable circuit protection.

The device utilizes a push-push switching function and incorporates a trip-free mechanism, ensuring snap action response under fault conditions. The blade terminals seamlessly fit into optional DIN rail sockets, which include screw terminals suitable for cables up to 6 mm² cross-sectional area. The sockets themselves measure 64 mm by 42.5 mm by 8.2 mm with a width of 8.2 mm, facilitating compact and efficient panel assembly.

With a breaking capacity of 250 Vac at 2000 Amps and 60 Vdc at 200 Amps, this terminal block ensures effective protection in demanding electrical environments. It exhibits a typical mechanical lifespan of 3000 operations under resistive load and 500 operations under inductive load, ensuring durability and extended service life.

The product is specifically designed for industrial, electrical automation, and circuit breaker accessory applications, providing reliable performance and ease of integration. It is manufactured in Turkey adhering to stringent quality controls and regulatory approvals including CSA, UL, and VDE certifications.

Conforms to multiple international standards including IEC, UL, CSA, and VDE. Thermal magnetic convertible breaker with reliable snap action and trip-free mechanism. Blade terminals compatible with optional DIN rail sockets having screw terminals up to 6mm² cable.

Compact dimensions of sockets: 64 x 42.5 x 8.2 mm and 8.2 mm width. Breaking capacity rated at 250 Vac - 2000 A and 60 Vdc - 200 A providing robust protection. Typical mechanical life of 3000 operations at 1xIN resistive load and 500 at 2xIN inductive load.

Suitable for industrial, electrical automation, and circuit breaker accessory applications. Explore more in our Electrical Terminal Blocks category at EnvMart for reliable products matching your industrial requirements.
