Vishay High Current Thyristor Module Screw Mount 600 V 380 A 25 A VS-P102W

Free Delivery in India | Lowest Global Shipping Charges

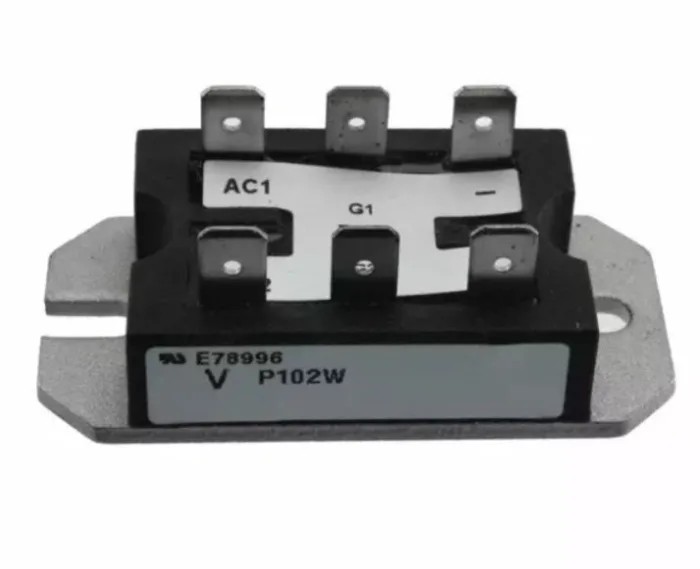

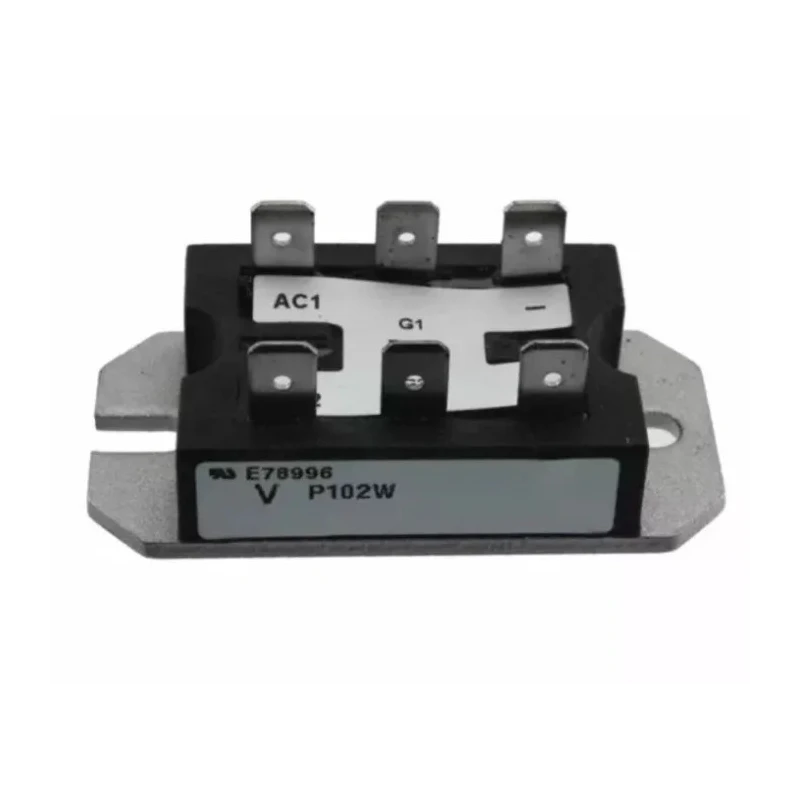

Vishay High Current Thyristor Module Screw Mount 600 V 380 A 25 A VS-P102W

Name: Vishay High Current Thyristor Module Screw Mount 600 V 380 A 25 A VS-P102W
Brand: Vishay
SKU: 313431
Price: 3936.4 INR
Availability: InStock



Category Thyristor Module Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	15.5mm
Length	63.5mm
Model	VS-P102W
Width	32.5mm
Mount Type	Screw
Series	VS-P100
Maximum Operating Temperature	125°C
Pin Count	6
Rated Average On-State Current Irms	25A
Repetitive Peak Reverse Voltage VDRM	600V
Surge Current Rating	380A
Maximum Gate Trigger Current Igt	60mA
Maximum Holding Current Ih	130mA
Maximum Gate Trigger Voltage Vgt	2V
Peak On-State Voltage	1.35V
Repetitive Peak Off-State Current	0.1mA

Key Features

Rated average on-state current is 25 A for steady performance.
Repetitive peak reverse voltage rating of 600 V ensures robust voltage tolerance.
Surge current rating of 380 A supports transient load conditions.
Maximum gate trigger current is 60 mA with 6 pins for connection.
Maximum operating temperature reaches 125°C for durable industrial use.
Compact dimensions of 63.5 mm length, 32.5 mm width, and 15.5 mm height.
Peak on-state voltage is 1.35 V ensuring efficient conduction.
Maximum holding current of 130 mA to maintain conduction stability.

Product Description

Vishay VS-P102W Thyristor Module is engineered for applications requiring high power control with rated voltage of 600 volts and surge capability of 380 amperes. This module features a screw mount type allowing secure mechanical attachment and excellent electrical connection in power electronics systems.

The device includes 6-pin connection with gate trigger current of 60 mA and a maximum holding current of 130 mA, making it suitable for controlled rectification in bridge circuits. Its compact size of 63.5 mm by 32.5 mm by 15.5 mm supports integration in tight spaces while its peak on-state voltage of 1.35 V leads to minimized conduction losses.

Operating temperature up to 125°C provides reliability in demanding industrial conditions including power supplies, motor controls, and heating applications. The VS-P102W belongs to Vishay's VS-P100 series of single-phase and three-phase fully controlled bridge rectifiers with isolated base plates, optimized for fast and secure connections using screw terminals.

Rated average on-state current of 25 A ensures steady current flow under normal operation. 600 V repetitive peak reverse voltage protects against reverse voltage spikes. High surge current rating of 380 A for handling transient current spikes.

Gate trigger parameters enable precise control of thyristor switching. Screw mounting facilitates reliable and durable installation. Compact form factor for use in varied industrial automation and power electronics. Robust thermal rating supports equipment safety and longevity.

Ideal for use in industrial, manufacturing, HVAC, and power management systems.

Vishay VS-P102W Thyristor Module is a dependable solution for power control applications demanding robust electrical ratings and compact industrial design. It is well-suited for assembly into machinery, improving production efficiency and operational reliability. Explore other semiconductor components in the Vishay series and the broad selection of Thyristor Modules available at EnvMart for your electronic system requirements.
