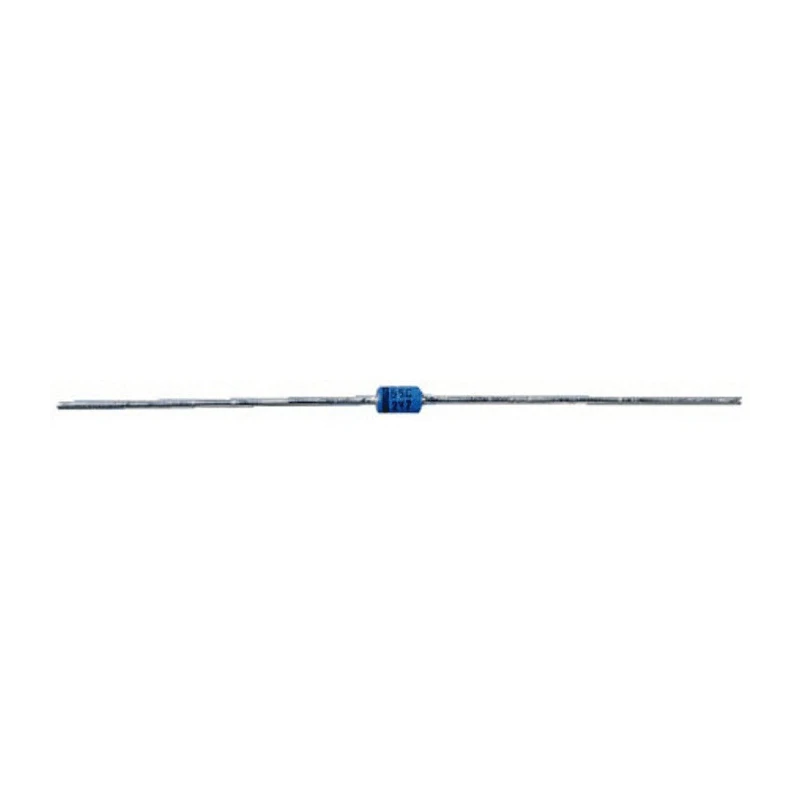

Vishay 5.6 V General Purpose Zener Diode, Single, 1.3 W, Through Hole DO-41 Package ZPY5V6-TAP

Vishay ZPY5V6-TAP is a high-quality general purpose Zener diode designed for voltage stabilization and clipping circuits in various industrial and electronic applications. This single-element diode comes in a robust DO-41 through-hole package, making it suitable for easy PCB mounting and durable field use.

The diode features a nominal Zener voltage of 5.6 V and a maximum power dissipation of 1.3 W, making it optimal for reliable voltage regulation tasks where consistent breakdown voltage and power handling are critical. It operates efficiently within a temperature range of -55°C to 175°C, accommodating demanding environmental conditions often encountered in industrial, laboratory, and manufacturing electronics.

Its maximum reverse leakage current is limited to 500 nA, ensuring low power losses and improved circuit stability. The device exhibits a typical voltage temperature coefficient of -3 mV/°C, enhancing performance under varying thermal conditions. With a maximum Zener impedance of 2 Ω at the test current of 100 mA, the diode offers stable voltage regulation with minimal voltage drop variation.

This DO-41 package diode is RoHS certified, aligning with current electronic manufacturing environmental standards for safer usage and disposal. The diode's through-hole configuration simplifies integration in prototyping and production environments requiring durable and user-friendly component installation.

Common applications include clipping and voltage regulation in power supplies, reference voltage stabilization in circuits, protection against voltage spikes, and use in automotive and instrumentation control circuits. Its reliable performance makes it a preferred choice for industrial electronics, communication devices, and precision laboratory equipment.

This diode features a nominal Zener voltage of 5.6 V for stabilization and clipping applications. It can dissipate a maximum power of 1.3 W, supporting robust operation. The device has a ±7% voltage tolerance and a maximum reverse leakage current of 500 nA.

Designed with a general purpose Zener type and a 2-pin through-hole DO-41 package for easy mounting. Operates reliably between -55°C and 175°C ambient temperatures. Its maximum Zener impedance is 2 Ω ensuring minimal voltage variation at the test current.

Typical voltage temperature coefficient is -3 mV/°C, suitable for temperature-sensitive use cases. RoHS compliant, ensuring environmentally safe manufacturing standards. Explore more Vishay semiconductor components and Zener Diode products for advanced electronics design at EnvMart.
