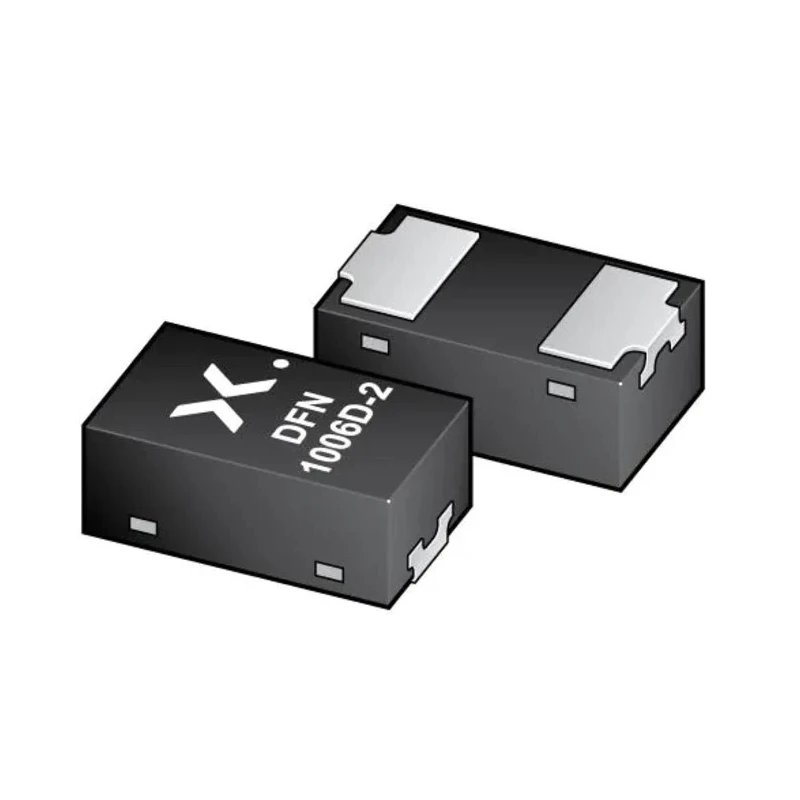

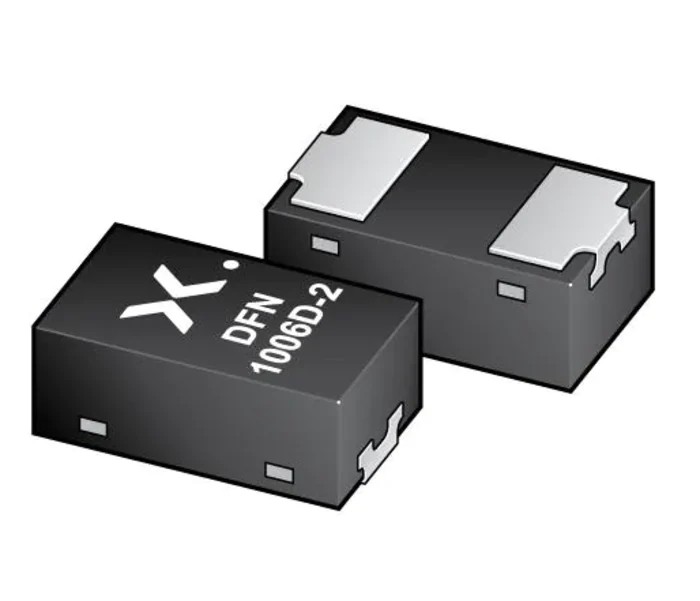

Nexperia Bi-Directional ESD Protection Diode, Surface Mount DFN1006BD-2 Package, 24V Reverse Stand-off PESD1ETH1G-LSYL
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | PESD1ETH1G-LSYL |
| Width | 0.6mm |
| Mount Type | Surface |
| Series | PESD1ETH1G-LS |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Interfaces | Ethernet |
| Standards/Approvals | AEC-Q101 |
| Pin Count | 2 |
| Clamping Voltage VC | 3.3V |
| Direction Type | Bi-Directional |
| Maximum Reverse Stand-off Voltage Vwm | 24V |
| Maximum Peak Pulse Current Ippm | 2.3A |
| Maximum Reverse Leakage Current | 100nA |
Key Features
- Features a maximum reverse stand-off voltage of 24 volts.
- Capable of handling peak pulse current up to 2.3 amperes.
- Low clamping voltage rated at 3.3 volts for effective transient suppression.
- Operates reliably between -55°C to 150°C ambient temperature.
- Small form factor with dimensions of 1mm length, 0.6mm width, and 0.47mm height.
- Designed according to AEC-Q101 standards ensuring automotive compliance.
- Offers electrostatic discharge protection up to 30 kV per industry norms.
- Suitable for applications in Ethernet interfaces including IEEE 100/1000BASE-T1 standards.
Product Description
The Nexperia PESD1ETH1G-LSYL is a bi-directional electrostatic discharge (ESD) protection diode encased in a small 2-pin DFN1006BD-2 (SOD882BD) plastic surface mount package. Engineered to protect automotive in-vehicle network bus lines, this device complies fully with OPEN Alliance IEEE 100BASE-T1 and 1000BASE-T1 Ethernet standards, supporting low-voltage differential signaling (LVDS) automotive networks.
This diode features a high trigger voltage minimum of 100 V and a low capacitance below 1.8 pF, which helps maintain signal integrity in high-speed data networks. It offers robust ESD protection up to 30 kV conforming to IEC 61000-4-2 and ISO 10605 standards, capable of surviving 1000 contact discharge events with 15 kV per the OPEN Alliance specification.
Operating over a wide temperature range from -55°C to 150°C, it provides reliable performance in harsh automotive environments. The device is rated with a maximum reverse stand-off voltage of 24 volts and a peak pulse current capacity of 2.3 amperes. Its compact dimensions of 1mm length, 0.6mm width, and 0.47mm height facilitate space-saving PCB designs.
The PESD1ETH1G-LSYL meets AEC-Q101 automotive quality standards ensuring dependable operation for automotive electronics applications. It is an ideal choice for protecting sensitive semiconductor circuits against transient voltage events and ESD damage in automotive and other industrial Ethernet applications.
Maximum reverse stand-off voltage of 24 V. Peak pulse current rating of 2.3 A. Low clamping voltage of 3.3 V. Wide operating temperature from -55°C to 150°C. Compact 2-pin DFN1006BD-2 surface mount package. Compliant with AEC-Q101 automotive standards.
Supports Ethernet interfaces and LVDS applications. ESD protection up to 30 kV per IEC and ISO standards.
This product is well-suited for industrial, automotive, networking, and communications applications where robust ESD protection is required. Users can rely on Nexperia’s PESD1ETH1G-LSYL diode for enhancing system reliability and longevity.
Explore more semiconductor protection components and related electronic parts in EnvMart’s electronics & electricals category to find complementary products that fit your industrial or automotive design needs.
Explore more products in our ESD Protection Diode category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum reverse stand-off voltage of the PESD1ETH1G-LSYL is 24 volts.
It has a peak pulse current rating of 2.3 amperes.
The clamping voltage is rated at 3.3 volts, which is effective for transient suppression.
This diode has dimensions of 1mm length, 0.6mm width, and 0.47mm height.
It operates reliably between -55°C to 150°C ambient temperature.
Yes, it is designed according to AEC-Q101 standards, ensuring automotive compliance.
The PESD1ETH1G-LSYL is suitable for Ethernet interfaces, including IEEE 100/1000BASE-T1 standards.
This model is a bi-directional ESD protection diode.
The maximum reverse leakage current is 100nA.
It has a pin count of 2.
The diode features a low capacitance below 1.8 pF, which helps maintain signal integrity in high-speed data networks.
It offers electrostatic discharge protection up to 30 kV per IEC and ISO standards.
