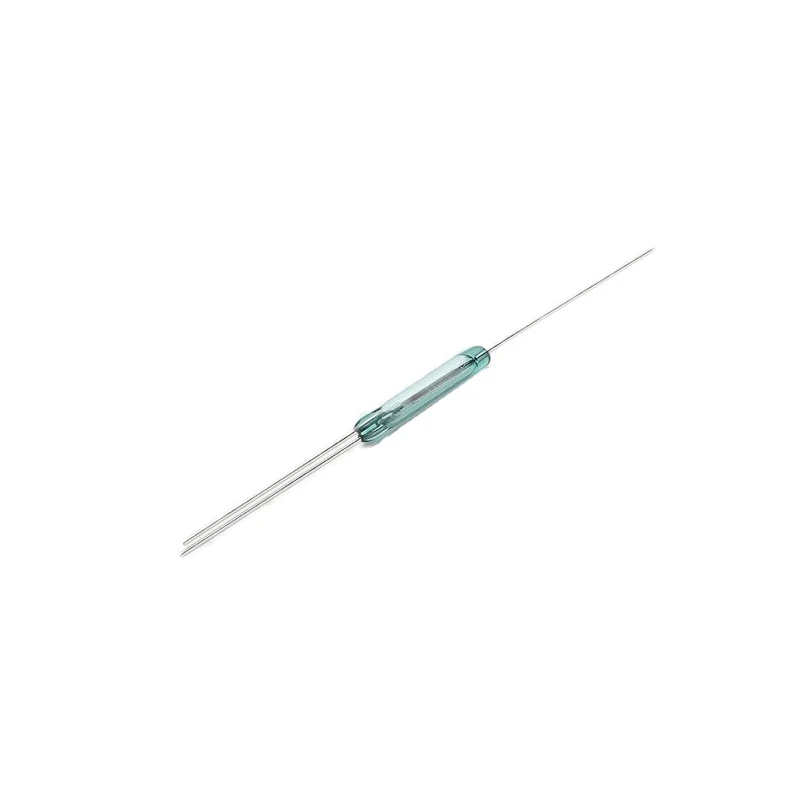

Littelfuse PCB Reed Switch 500 mA 200 V MDRR-DT-10-15-F

Littelfuse MDRR-DT-10-15-F PCB Reed Switch 500 mA 200 V is a compact, subminiature axial lead reed switch designed for low power electrical switching applications. The device can switch up to 125 V dc at 5 watts and is hermetically sealed in a glass envelope measuring 14.73 mm by 2.54 mm. It utilizes a Form C (SPDT change over) contact configuration with nickel iron alloy contacts that provide a low 100 mΩ contact resistance.

This reed switch operates within a temperature range of -40°C to 105°C, suitable for demanding industrial and commercial environments. It features a wire terminal type designed for straightforward PCB mounting. The device is magnetically operated, ensuring high reliability and resilience to contamination, even in conditions where other switch technologies may fail.

The maximum switching current is 500 mA at a power rating of 10 W and maximum voltage of 200 V, making it fit for use in industrial controls, security systems, office equipment, and home appliance applications. The switching speed is optimized with a maximum release time of 0.2 ms and operating time including bounce of 0.6 ms, offering responsive switching performance.

This product conforms to recognized safety and quality standards including UR certification, enhancing its suitability for industrial and commercial use. The switch belongs to the MDRR series, manufactured in Mexico with an AT value sensitivity rating from 10 to 15 AT, ensuring consistent magnetic sensitivity for reliable operation.

Capable of switching 500 mA current and 10 W power. Maximum switching voltage of 200 V. Hermetically sealed for contamination resistance. Form C (SPDT) configuration for versatile switching. AT sensitivity rating between 10 to 15 AT.

Operating temperature range from -40°C to 105°C. Wire terminal type and PCB mountable. Low contact resistance of 100 mΩ for efficient conduction. Manufactured in Mexico as part of the MDRR series. UL and ATEX certifications for safety compliance.

This Littelfuse PCB Reed Switch is ideal for industrial automation, security equipment, office machinery, and household appliance controls. EnvMart offers a comprehensive range of Littelfuse switches and components for reliable and efficient circuit designs.
