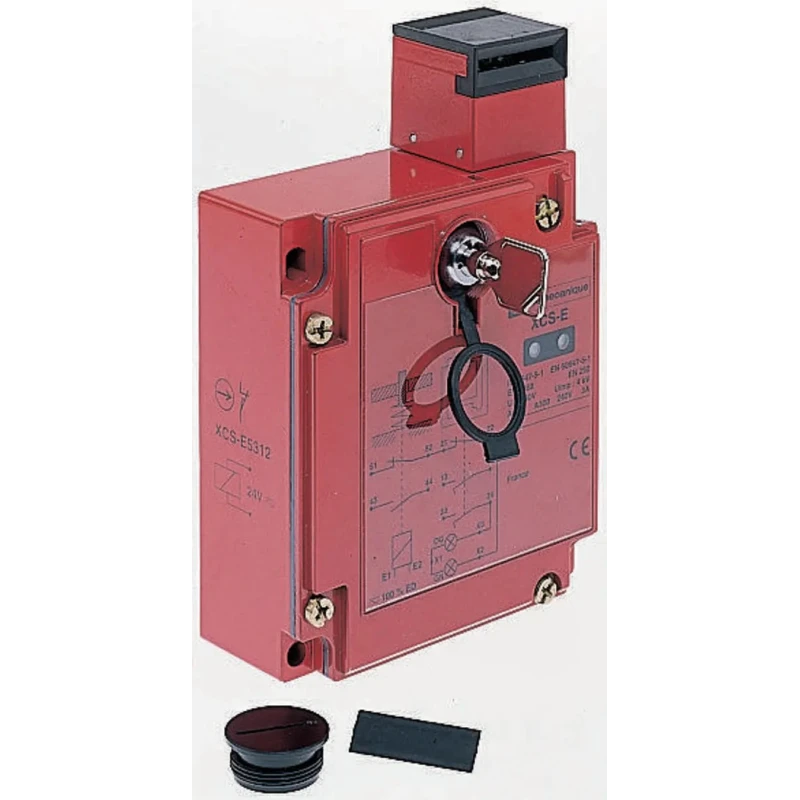

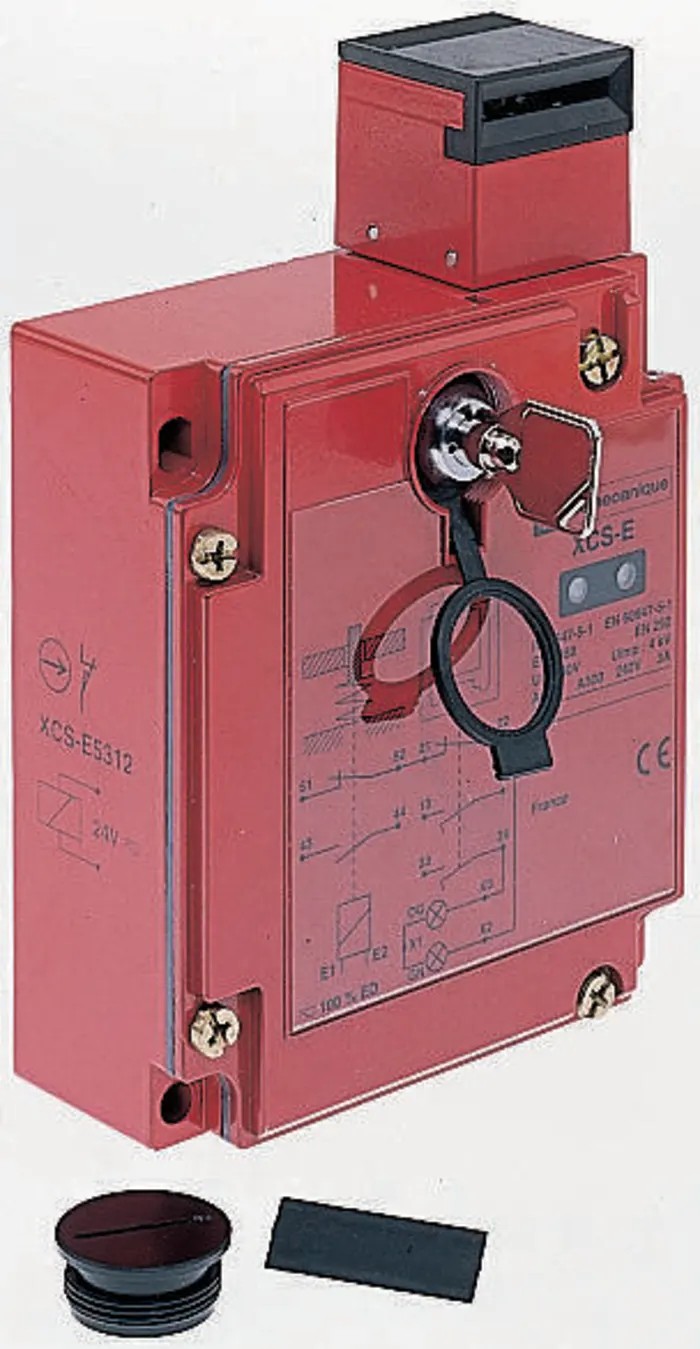

Telemecanique Sensors XCS-E Series Solenoid Interlock Switch with Power to Lock Actuator XCSE5512

Telemecanique Sensors XCSE5512 Solenoid Interlock Switch is part of the robust XCS-E series built for industrial safety interlock applications, providing secure locking solutions for machinery doors and guards. Operating at 24V AC/DC supply voltage with a power consumption of 10VA, this switch ensures rapid machine shutdown if safety covers are opened, enhancing operator and equipment protection.

The metal housing offers IP67 ingress protection, suitable for demanding environments in manufacturing, automation, and heavy machinery industries. Two safety contacts (2 NC) combined with one auxiliary contact (1 NO) and eight auxiliary contacts facilitate reliable multiple safety circuit designs. The actuator provided allows for a power-to-lock function, securing access points until proper unlocking conditions are met.

Key operation allows authorized override, and 360-degree turret heads enable flexible installation positions. LED indicators provide clear visual status of guard position and lock engagement, aiding in diagnostics and operational safety.

This solenoid interlock conforms to major international safety and electrical standards such as IEC 60947-5-1, IEC 60204-1, EN 1088, ISO 14119, CSA C22.2 No 14, UL 508, and ISO 12100, ensuring compliance with stringent safety regulations.

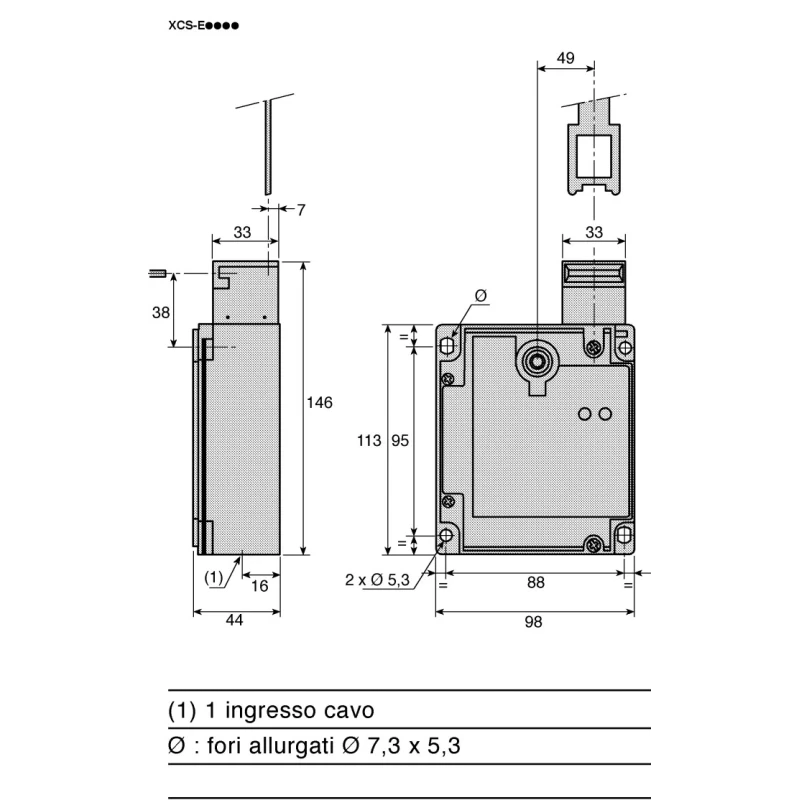

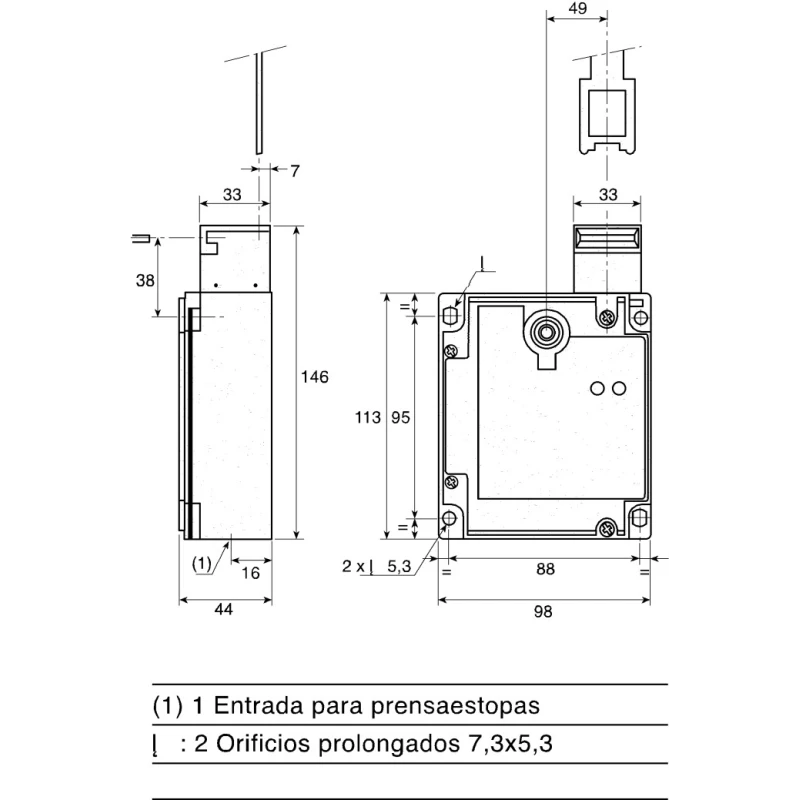

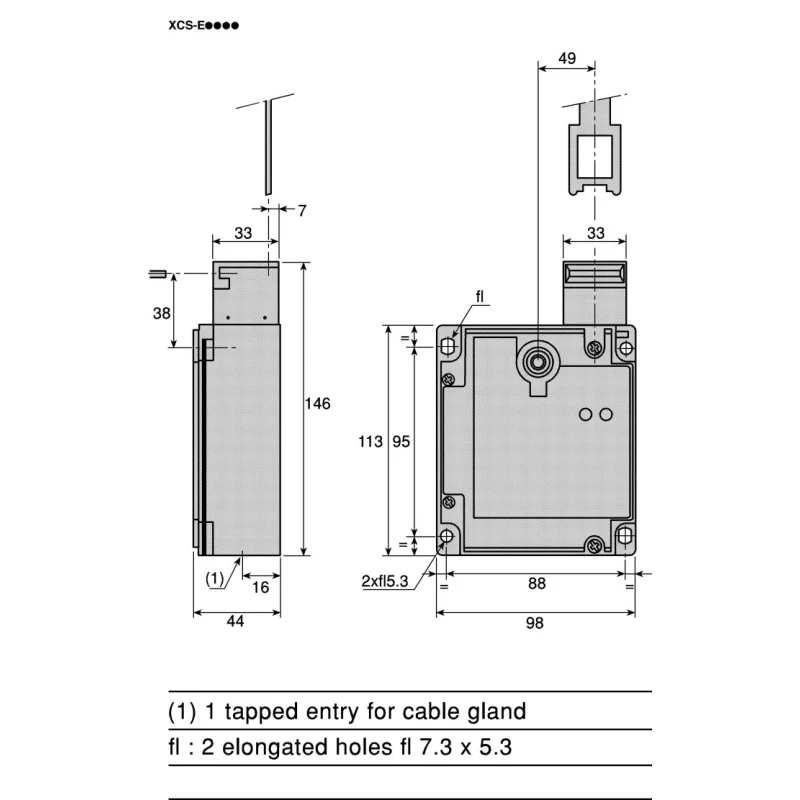

The switch’s dimensions are 98 mm in length, 44 mm in width, and 146 mm in depth, designed for integration into safety systems with PG13.5 conduit entry and terminal clamping connections.

Ideal for use in industrial automation, manufacturing, material handling, and other applications requiring secure interlocking of machinery guards and doors. This switch enhances safety by preventing machinery operation when access points are open.

Available with detailed technical support and reliable operational longevity, the Telemecanique Sensors XCSE5512 Solenoid Interlock Switch is a trusted component for industrial safety enforcement.

Includes power to lock actuator to secure machinery guards or doors. Key operated override with supplied key for authorized access. High durability metal housing rated IP67 for harsh environments. Two safety contacts (2 NC) and one auxiliary contact (1 NO) for reliable operation.

8 auxiliary contacts allow extensive safety wiring options. Contact voltage up to 230V AC and 24V DC with substantial current ratings. 360° rotatable turret heads configurable in 90° steps. LED indicators for guard status and key lock position improve operator awareness.

Conforms to international safety standards including IEC 60947-5-1 and EN 1088. Browse the Electronics & Electricals category at EnvMart for more safety interlock switches and industrial automation components.
