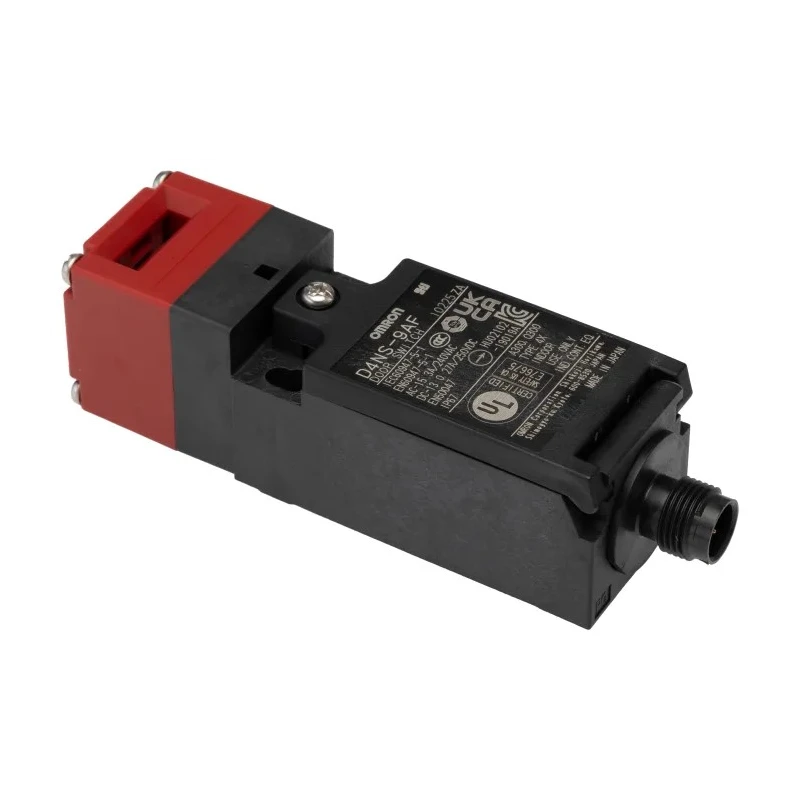

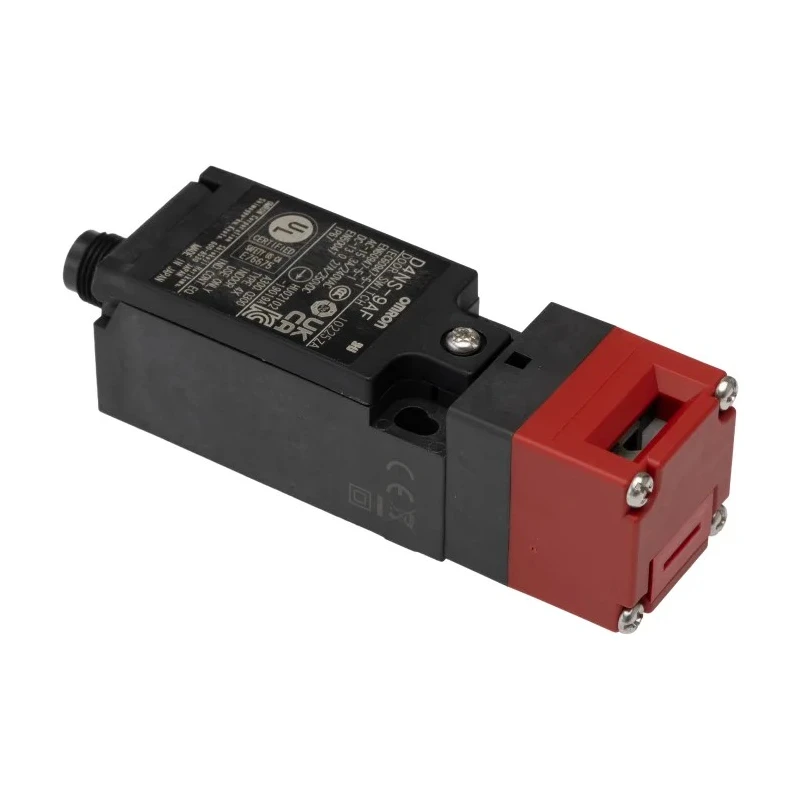

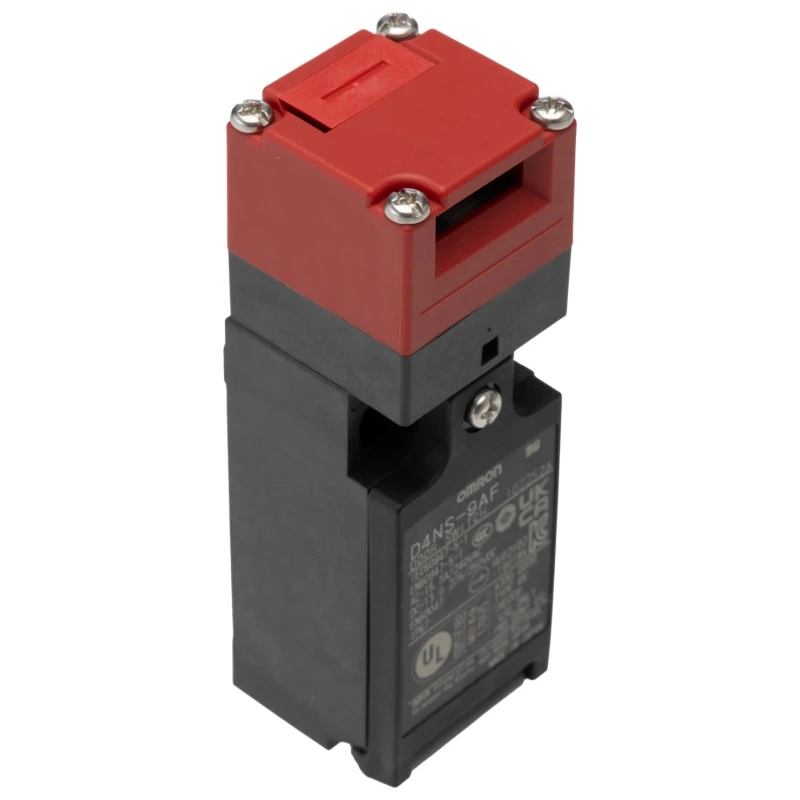

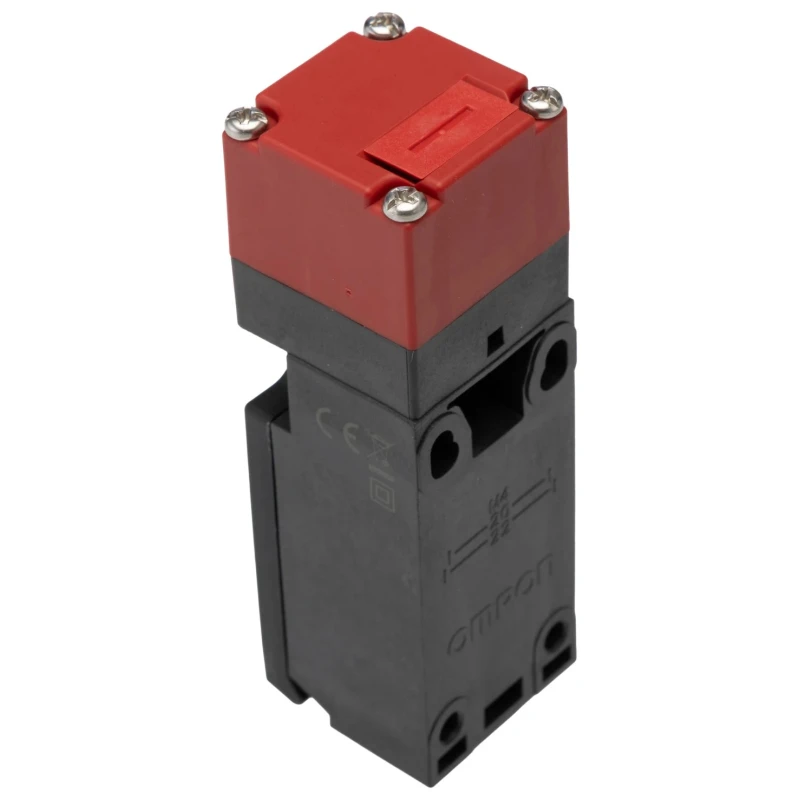

Omron Solenoid Interlock Switch Power to Lock/Unlock , IP67, M12 Conduit, 2 Auxiliary Contacts, 110V AC/50mA, 96x31x30mm D4NS

The Omron D4NS-9AF Solenoid Interlock Switch is engineered for secure access control on guards and machine doors, making it an essential safety device in industrial automation systems. Designed for situations where reliable door-position feedback is required, it integrates a removable operation key with direct-locking functionality to prevent unsafe machine access.

This switch features a rugged IP67 enclosure, providing excellent resistance to dust and water ingress during operation and ensuring performance even in demanding environments such as assembly cells and press machinery. The compact form factor - 31mm width, 96mm length, and 30mm depth - makes it suitable for installations with limited space, while the plastic housing enhances electrical isolation and overall robustness.

Equipped with two auxiliary contacts (NC and NO), the device supports advanced signalling and control logic for integration with safety panels or production line controls. The power-to-lock/unlock function assures effective mechanical interlocking, and the screw-type terminals allow straightforward field wiring using standard AWG22 - 20 conductors. The M12 conduit/connector provides convenience for retrofit projects or fast replacement.

Operational flexibility is augmented by a rotatable head that supports four mounting directions, accommodating varying machine layouts and access configurations. Mechanical durability is rated to at least 1,000,000 operations, with electrical endurance of up to 500,000 cycles at 3A resistive load, promoting long-term reliability.

Applications include automated production lines, presses and forming machinery, electronics assembly cells, and retrofit contexts where door safety and monitoring are critical. The switch is compatible with panel designs requiring auxiliary output, and its auxiliary contacts facilitate integration with multiple signalling paths.

Installation precautions recommend indoor use only, away from corrosive gases, oil, direct water entry through the keyhole, or severe vibration. Proper tightening of terminal screws and use of compatible connectors maintain enclosure integrity and IP67 protection.

The Omron D4NS-9AF complies with international safety standards including UL508, EN60947-5-1, CE, and CSA C22.2 No.14, providing assurance for compliance-driven industrial projects. EnvMart's Solenoid Interlock Switch selection includes Omron and other industry leaders for advanced industrial safety and machine protection needs.
