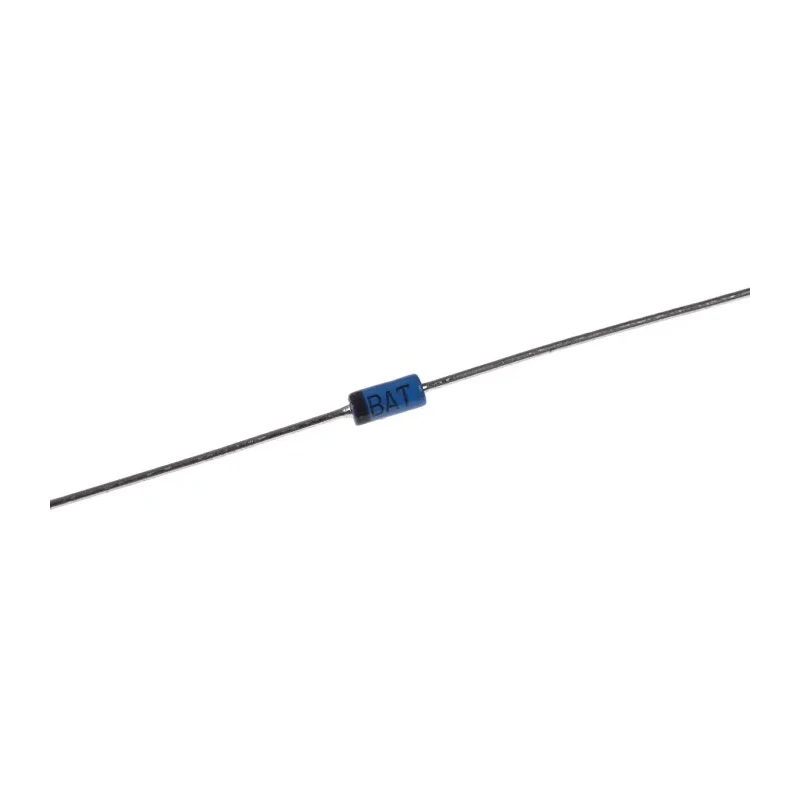

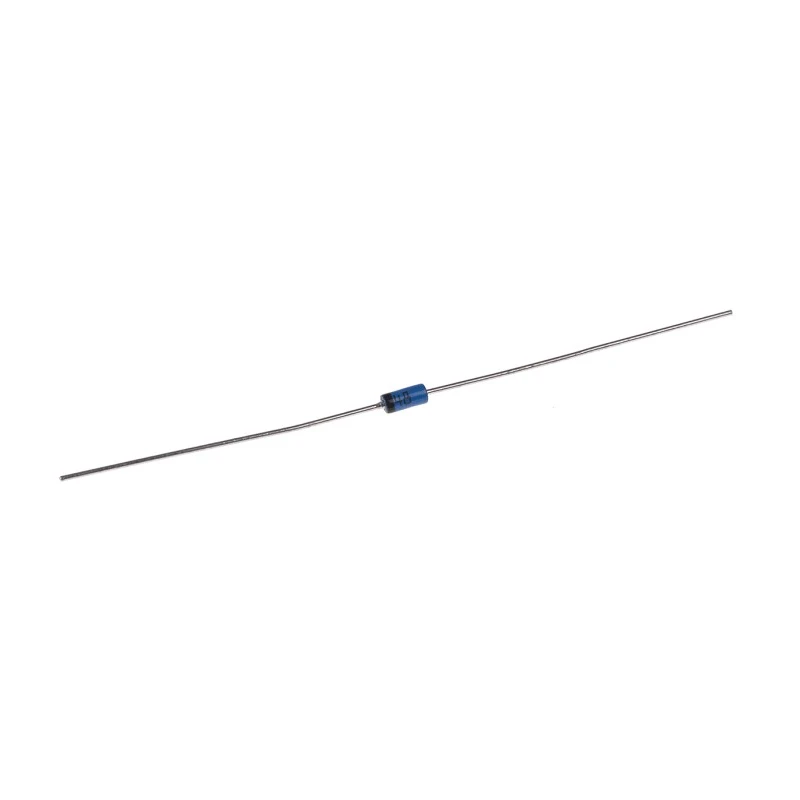

STMicroelectronics Schottky Diode, 40 V, 350 mA, Through Hole, 2-Pin DO-35, BAT48

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics Schottky Diode, 40 V, 350 mA, Through Hole, 2-Pin DO-35, BAT48

Name: STMicroelectronics Schottky Diode, 40 V, 350 mA, Through Hole, 2-Pin DO-35, BAT48
Brand: STMicroelectronics
SKU: 307325
Price: 0.09 USD
Availability: InStock



Category Schottky Diode Brand STMicroelectronics Condition New

Specifications

Country of Origin	China
Diameter	2mm
Brand	STMicroelectronics
Height	2mm
Length	4.5mm
Model	BAT48
Width	2mm
Mount Type	Through Hole
Series	BAT48
Maximum Operating Temperature	125°C
Package Type	DO-35
Minimum Operating Temperature	-65°C
Pin Count	2
Maximum Continuous Forward Current If	350mA
Peak Reverse Repetitive Voltage Vrrm	40V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	25μA
Peak Non-Repetitive Forward Surge Current Ifsm	2A
Maximum Forward Voltage Vf	900mV
STMicroelectronics 20V 350mA, Schottky Diode, 2-Pin DO-35 BAT47Brand	STMicroelectronics

Key Features

This diode features a 2-pin DO-35 package designed for through-hole mounting.
Maximum forward voltage is 900 mV ensuring efficient conduction.
It has a peak reverse repetitive voltage (Vrrm) of 40 V for robust performance.
Peak reverse current is extremely low at 25 μA to minimize leakage.
Temperature range spans from -65°C minimum to 125°C maximum operating temperature.
Peak non-repetitive forward surge current rating is 2 A for transient overloads.
Ideal for power-sensitive applications requiring high efficiency and density.
Manufactured in China with consistent quality standards for electronics assembly.

Product Description

STMicroelectronics BAT48 Schottky Diode is a 40 V, 350 mA rated discrete semiconductor device designed for through-hole applications in electronic circuits. This single diode in a 2-Pin DO-35 package ensures low forward voltage drop of 900 mV, enabling efficient power conversion with minimal losses.

The diode supports a peak reverse repetitive voltage of 40 V and a low peak reverse current of 25 μA which contributes to improved circuit reliability and reduced leakage current under reverse bias conditions. Its high surge current capability of 2 A allows brief transient overload handling without damage.

For industrial and commercial electronics such as power supplies, rectifiers, and switching devices, this diode offers high power efficiency and compact form factor. The device fits well in circuits requiring through-hole mounting with a minimal package size of 4.5 mm length and 2 mm diameter.

Operating temperature flexibility from -65°C to 125°C permits usage in a wide range of environmental conditions including automotive and industrial temperature extremes. The diode conforms to standard semiconductor manufacturing quality but does not hold specific approvals or automotive certifications.

The product is manufactured in China and distributed by STMicroelectronics, a recognized leader in semiconductor technology and discrete component innovation. Its robust electrical characteristics make it suitable for applications in electronics, power management, and signal rectification.

2-Pin DO-35 through-hole package configuration. Maximum continuous forward current: 350 mA. Peak reverse repetitive voltage: 40 V. Maximum forward voltage: 900 mV. Peak reverse current: 25 μA. Operating temperature range: -65°C to 125°C.

Peak non-repetitive forward surge current: 2 A. Compact dimensions: 4.5 mm length, 2 mm diameter. Explore more STMicroelectronics Schottky Diodes and electronic components at EnvMart for reliable industrial and commercial solutions.
