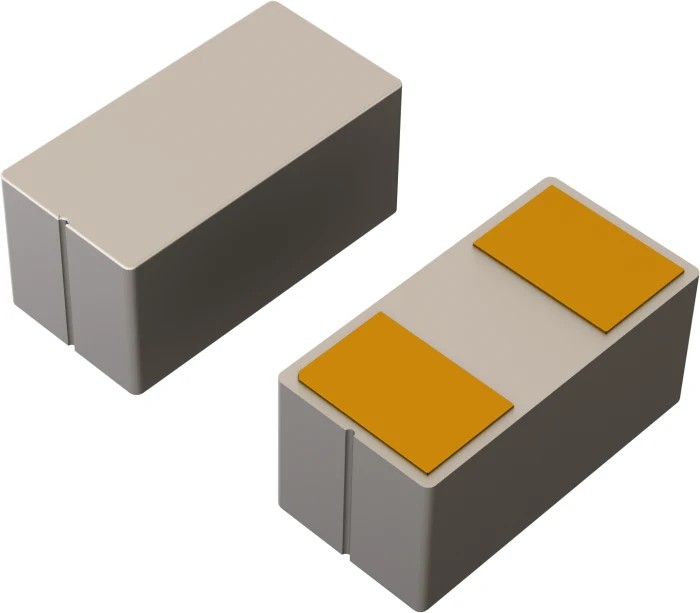

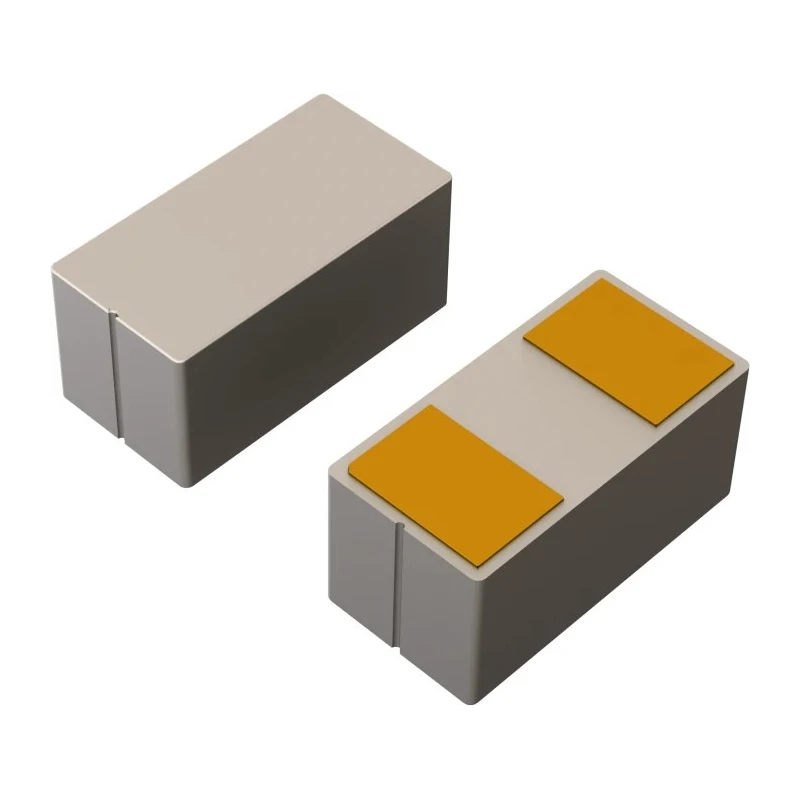

ROHM 30 V 100 mA Schottky Diode Surface Mount SMD0603
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Height | 0.29mm |
| Length | 0.61mm |
| Model | SMD0603 |
| Width | 0.31mm |
| Mount Type | Surface |
| Series | RB522ES |
| Maximum Operating Temperature | 150°C |
| Package Type | SMD0603 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 100mA |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 7μA |
| Maximum Forward Voltage Vf | 0.37V |
Key Features
- Surface mount package type SMD0603 ideal for compact PCB layouts.
- Maximum continuous forward current rated at 100 mA for reliable circuit performance.
- Peak reverse repetitive voltage of 30 V enables high voltage blocking capability.
- Maximum forward voltage of 0.37 V reduces power loss in switching applications.
- Wide operating temperature range from -40°C to 150°C ensures durability in harsh environments.
- Single diode configuration with 2 pins suitable for general rectification tasks.
- Small package dimensions 0.61 mm length, 0.31 mm width, and 0.29 mm height for space-saving installation.
- Peak reverse current of 7 μA ensures low leakage current and high efficiency.
Product Description
The ROHM RB522ES-30T15R is a 30 V, 100 mA Schottky barrier diode designed with an epitaxial planar type structure. It is housed in a surface mount SMD0603 package, making it suitable for compact electronic circuit boards. The small silicon package and low forward voltage of 0.37 V make it highly efficient for general rectification applications in electronic circuits.
This diode features a maximum continuous forward current rating of 100 mA and can withstand a peak reverse repetitive voltage of 30 V, providing reliable performance under typical operating conditions. The device supports a broad operating temperature range from -40°C up to 150°C, ensuring stable operation in industrial, automotive, and consumer electronics environments.
With a single diode configuration and 2-pin design, it offers ease of integration into surface mount technology layouts. Its small package size of 0.61 mm length, 0.31 mm width, and 0.29 mm height contributes to efficient PCB space utilization.
The peak reverse current of only 7 μA enhances efficiency by minimizing leakage currents. This diode does not carry any automotive standards or formal certifications but meets industry expectations for Schottky diode performance.
Surface mount SMD0603 packaging for compact design. 100 mA continuous forward current for dependable rectification. 30 V peak reverse repetitive voltage suitable for moderate voltage circuits. Low forward voltage of 0.37 V minimizes power dissipation.
Wide -40°C to +150°C operating temperature range for versatile use. Small dimensions aid in PCB space management. Low peak reverse current for higher efficiency.
This ROHM diode is ideal for use in industrial, electronic manufacturing, power supply, and automotive auxiliary circuits requiring efficient, compact Schottky rectifiers. Explore the Schottky Diodes & Rectifiers category for more component options on EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is rated at 100 mA.
The maximum forward voltage of this Schottky diode is 0.37 V, which helps reduce power loss in switching applications.
It operates within a wide temperature range from -40°C to 150°C, making it suitable for various environments.
The dimensions of the SMD0603 package are 0.61 mm in length, 0.31 mm in width, and 0.29 mm in height.
This diode features a single configuration with 2 pins, making it easy to integrate into surface mount technology layouts.
This model uses a surface mount configuration, specifically designed for compact PCB layouts.
The rectifier type of this diode is Schottky, known for its efficiency in rectification tasks.
The diode is manufactured in India.
It is suitable for industrial, electronic manufacturing, power supply, and automotive auxiliary circuits requiring efficient rectification.
The series name of this diode is RB522ES, indicating its specific model within the Schottky diode category.
