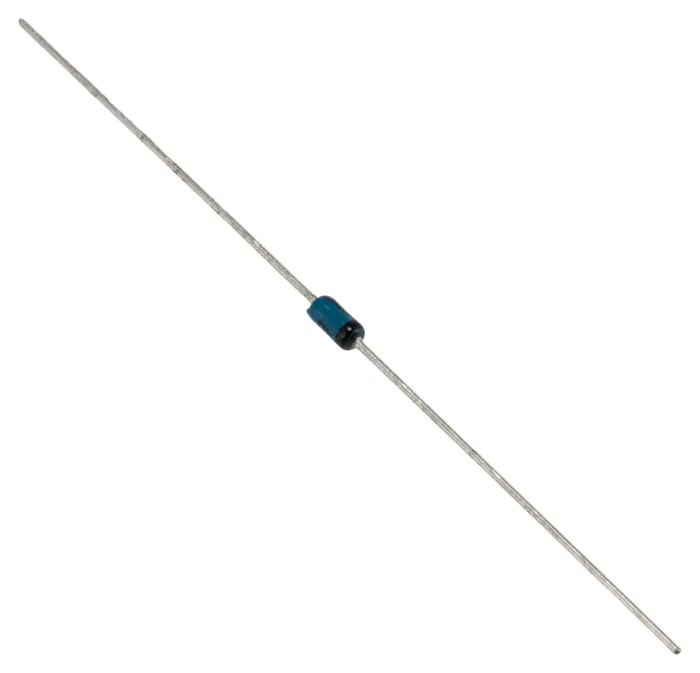

STMicroelectronics 100 V 150 mA Schottky Diode 2-Pin DO-35 BAT46

Free Delivery in India | Lowest Global Shipping Charges

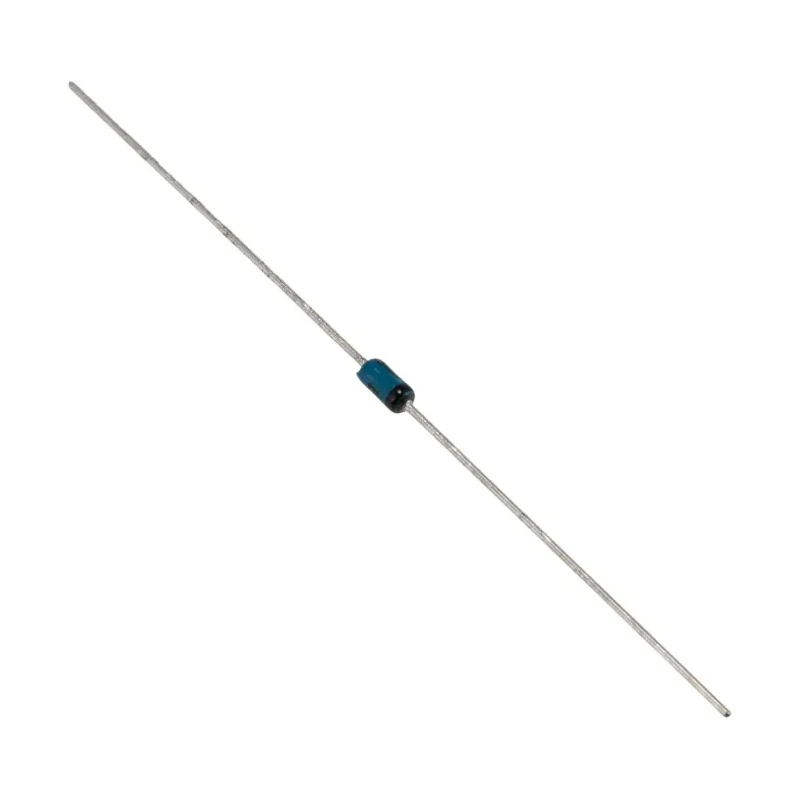

STMicroelectronics 100 V 150 mA Schottky Diode 2-Pin DO-35 BAT46

Name: STMicroelectronics 100 V 150 mA Schottky Diode 2-Pin DO-35 BAT46
Brand: STMicroelectronics
SKU: 307324
Price: 0.05 USD
Availability: InStock



Category Schottky Diode Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Diameter	1.7mm
Brand	STMicroelectronics
Height	2mm
Length	4.5mm
Model	BAT46
Width	2mm
Mount Type	Through Hole
Series	BAT46
Maximum Operating Temperature	125°C
Package Type	DO-35
Minimum Operating Temperature	-65°C
Pin Count	2
Maximum Continuous Forward Current If	150mA
Peak Reverse Repetitive Voltage Vrrm	100V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	5μA
Peak Non-Repetitive Forward Surge Current Ifsm	750mA
Maximum Forward Voltage Vf	1V

Key Features

Through hole mount type suitable for easy PCB installation.
Package type is DO-35 with a compact 2 mm diameter and 4.5 mm length.
Maximum forward voltage drop of 1 V ensures low power loss during operation.
Operates reliably in temperatures ranging from -65°C to 125°C.
Features low leakage current with a peak reverse current of 5 μA.
Peak non-repetitive forward surge current rating of 750 mA.
Single diode configuration with 2 pins for straightforward circuit integration.
Ideal for automotive, industrial, and consumer electronics applications requiring efficient rectification.

Product Description

STMicroelectronics BAT46 is a high-efficiency Schottky diode designed for through hole mounting in a 2-pin DO-35 package. It offers a maximum continuous forward current of 150 mA and peak reverse voltage of 100 V, making it suitable for power rectification in electronic circuits where space and efficiency are essential.

The diode's maximum forward voltage of 1 V minimizes power loss, contributing to effective thermal and energy management. Withstanding operating temperatures from -65°C to 125°C, this diode ensures long-term reliability in demanding environments such as automotive electronics, industrial equipment, and consumer devices.

Its single diode configuration and low peak reverse current of 5 μA reduce leakage and improve overall circuit stability. The compact DO-35 package, measuring 4.5 mm in length and 2 mm in both height and width, facilitates easy PCB integration.

This diode is engineered for efficient performance in switching, rectification, and protection circuits, benefiting applications in power supplies, DC-DC converters, and voltage clamping.

Through hole mount type suitable for easy PCB installation. Compact DO-35 package ensures space-saving placement. Low forward voltage drop of 1 V reduces energy loss during conduction. Wide operating temperature range from -65°C to 125°C for versatile use.

Minimal leakage current with a peak reverse current of 5 μA enhances efficiency. High surge current capacity of 750 mA for transient events. Single diode with 2 pins for simple circuit design integration. Applications include automotive, industrial, and consumer electronics requiring reliable rectification.

This product is ideal for industrial, electronics manufacturing, laboratory, and research environments requiring high-quality Schottky diodes. Explore more Schottky Diodes & Rectifiers and related electronic components on EnvMart, your trusted source for industrial-grade electronic parts.
