STMicroelectronics 30 V 200 mA Schottky Diode 2-Pin DO-35 BAT43

Free Delivery in India | Lowest Global Shipping Charges

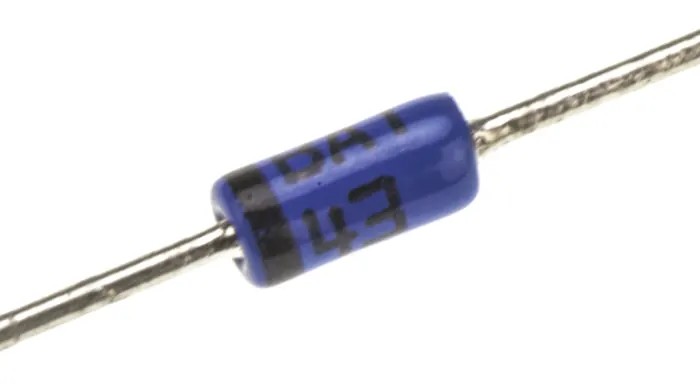

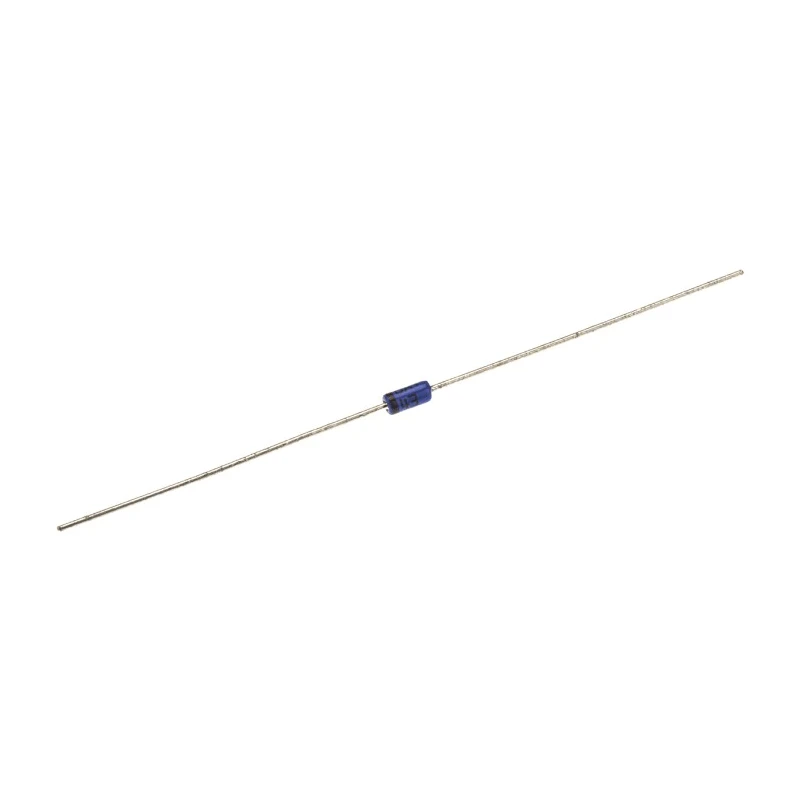

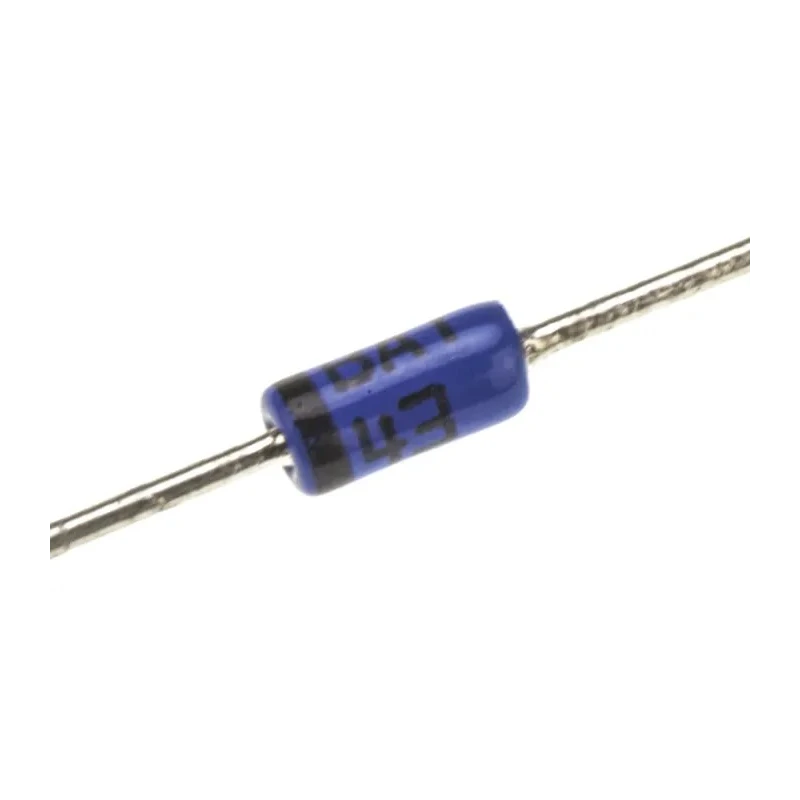

STMicroelectronics 30 V 200 mA Schottky Diode 2-Pin DO-35 BAT43

Name: STMicroelectronics 30 V 200 mA Schottky Diode 2-Pin DO-35 BAT43
Brand: STMicroelectronics
SKU: 307326
Price: 0.11 USD
Availability: InStock



Category Schottky Diode Brand STMicroelectronics Condition New

Specifications

Country of Origin	China
Diameter	1.7mm
Brand	STMicroelectronics
Height	2mm
Length	4.5mm
Model	BAT43
Width	2mm
Mount Type	Through Hole
Series	BAT43
Maximum Operating Temperature	125°C
Package Type	DO-35
Minimum Operating Temperature	-65°C
Standards/Approvals	RoHS
Pin Count	2
Maximum Continuous Forward Current If	200mA
Peak Reverse Repetitive Voltage Vrrm	30V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	500nA
Peak Non-Repetitive Forward Surge Current Ifsm	4A
Maximum Forward Voltage Vf	450mV
Peak Reverse Recovery Time trr	5ns

Key Features

Package type is DO-35 with through-hole mount configuration.
Maximum continuous forward current is 200 mA ensuring reliable operation.
Peak reverse repetitive voltage rating is 30 V.
Features a maximum forward voltage of 450 mV for efficient conduction.
Peak non-repetitive forward surge current is 4 A for transient protection.
Operating temperature ranges from -65°C to 125°C for robust performance.
2-pin configuration in a compact 4.5 mm length and 2 mm diameter package.
Low peak reverse current of 500 nA improves leakage performance.

Product Description

STMicroelectronics BAT43 is a small signal Schottky diode packaged in a DO-35 through-hole configuration, designed for efficient switching and low voltage drop applications.

This diode features a maximum continuous forward current rating of 200 mA and a peak reverse repetitive voltage of 30V, suitable for protection and rectification uses in electronic circuits.

The device has a compact form factor with dimensions of 4.5 mm length, 2 mm width, and 2 mm height, making it ideal for space-constrained electronic assemblies. Operating temperature ranges from -65°C to 125°C, supporting use in automotive and industrial environments excluding automotive standard compliance.

Its peak forward voltage of 450 mV and low peak reverse current of 500 nA ensure minimal power loss during operation, while the 5 ns peak reverse recovery time enhances performance in fast switching circuits.

Manufactured in China and RoHS compliant, the BAT43 diode meets environmental and safety standards expected in modern electronics manufacturing. Package type is DO-35 with through-hole mount configuration. Maximum continuous forward current is 200 mA ensuring reliable operation.

Peak reverse repetitive voltage rating is 30 V. Features a maximum forward voltage of 450 mV for efficient conduction. Peak non-repetitive forward surge current is 4 A for transient protection. Operating temperature ranges from -65°C to 125°C for robust performance.

2-pin configuration in a compact 4.5 mm length and 2 mm diameter package. Low peak reverse current of 500 nA improves leakage performance. Fast peak reverse recovery time of 5 ns enhances switching speed. Compliant with RoHS standards, ensuring environmental safety.

This diode is ideal for use in industrial, automotive (non-automotive standard), and commercial circuit designs requiring efficient rectification and voltage protection. Explore our wide range of Schottky Diodes and rectifiers to find the perfect component for your electronic design projects at EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum continuous forward current of this diode is 200 mA, ensuring reliable operation in various applications.

The peak reverse repetitive voltage rating for the BAT43 is 30 V, making it suitable for voltage protection applications.

This diode has a compact form factor with a length of 4.5 mm, a diameter of 2 mm, and a height of 2 mm.

The maximum forward voltage of the BAT43 is 450 mV, which allows for efficient conduction in electronic circuits.

The operating temperature range for the BAT43 is from -65°C to 125°C, supporting its use in various environments.

The peak non-repetitive forward surge current for the BAT43 is 4 A, providing transient protection in circuits.

This model features a through-hole mount configuration, suitable for various circuit designs.

The peak reverse recovery time for this diode is 5 ns, enhancing its performance in fast switching applications.

The peak reverse current for the BAT43 is 500 nA, which improves leakage performance in circuits.

Yes, the BAT43 is RoHS compliant, ensuring it meets environmental and safety standards in electronics manufacturing.

The BAT43 is a Schottky diode, designed for efficient switching and low voltage drop applications.

This diode is suitable for use in industrial, automotive (non-automotive standard), and commercial circuit designs requiring efficient rectification and voltage protection.
