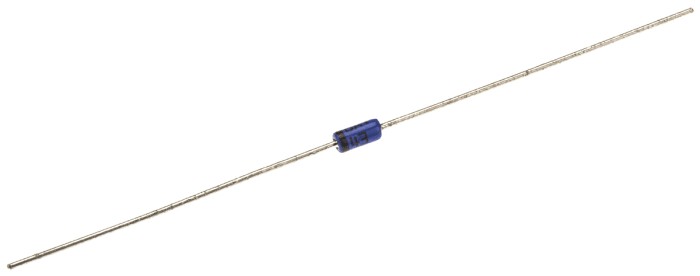

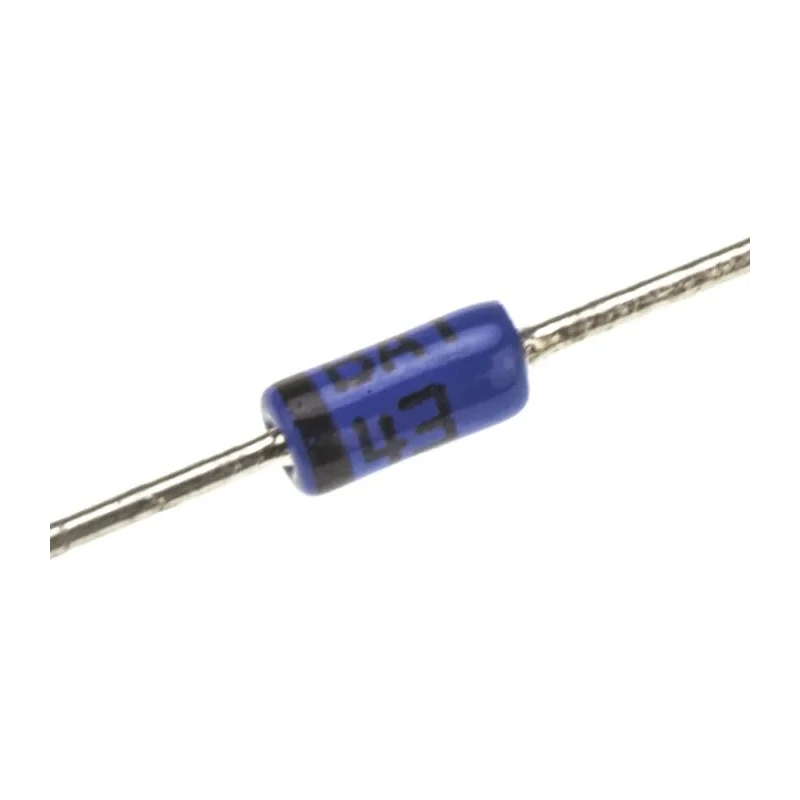

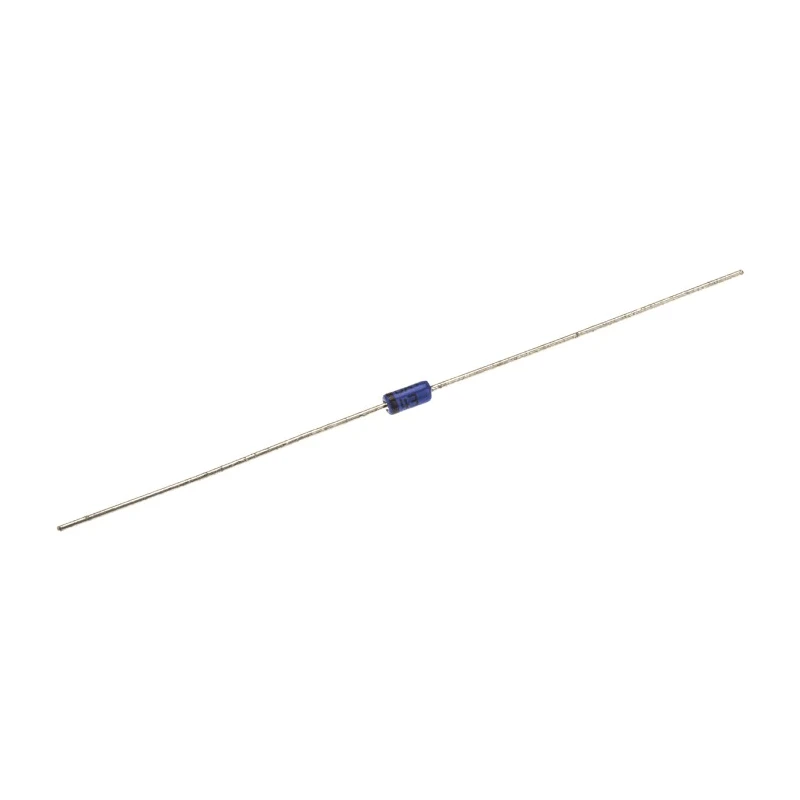

STMicroelectronics 30 V 200 mA Schottky Diode, Single, DO-35 Package BAT43

Name: STMicroelectronics 30 V 200 mA Schottky Diode, Single, DO-35 Package BAT43
Brand: STMicroelectronics
SKU: 307322
Price: 0.09 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Diameter	1.7mm
Brand	STMicroelectronics
Height	2mm
Length	4.5mm
Model	BAT43
Width	2mm
Mount Type	Through Hole
Series	BAT43
Maximum Operating Temperature	125°C
Package Type	DO-35
Minimum Operating Temperature	-65°C
Standards/Approvals	RoHS
Pin Count	2
Maximum Continuous Forward Current If	200mA
Peak Reverse Repetitive Voltage Vrrm	30V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	500nA
Peak Non-Repetitive Forward Surge Current Ifsm	4A
Maximum Forward Voltage Vf	450mV
Peak Reverse Recovery Time trr	5ns

Key Features

Rated for a maximum continuous forward current of 200 mA.
Peak reverse repetitive voltage of 30 volts ensures reliability in voltage blocking applications.
Robust DO-35 through-hole package with 2 pins for easy PCB mounting.
Low forward voltage of 450 mV improves efficiency in high frequency circuits.
Operating temperature range from -65°C up to 125°C.
Minimal peak reverse current of 500 nA enhances low leakage performance.
Fast peak reverse recovery time of 5 ns suitable for high-speed switching.
Peak non-repetitive forward surge current of 4 A for transient protection.

Product Description

STMicroelectronics BAT43 is a small signal Schottky diode featuring a 30 V peak reverse voltage and 200 mA maximum continuous forward current. The diode is housed in a compact DO-35 package with 2 pins for through-hole mounting. It is designed for general purpose applications requiring efficient high-speed switching and low forward voltage drop.

The diode maintains excellent electrical characteristics with a low forward voltage of 450 mV and fast peak reverse recovery time of 5 ns. It offers minimal leakage current with a peak reverse current of only 500 nA. The BAT43 withstands an operating temperature range from -65°C to 125°C, making it suitable for various environmental conditions.

This diode also features a peak non-repetitive forward surge current of 4 A to endure transient spikes. It is RoHS compliant, indicating adherence to environmental safety standards. Its compact physical dimensions - length 4.5 mm, diameter 1.7 mm, and height and width of 2 mm - make it ideal for space-constrained electronic circuits.

Typical industrial applications include circuits in electronics, semiconductors, power and connectors sectors within industrial, laboratory, and manufacturing environments where reliable small signal diode performance is critical. This product is essential for designers and engineers working on diode rectifiers and switching applications.

Rated for maximum continuous forward current of 200 mA. Peak reverse voltage of 30 V. Low forward voltage of 450 mV. Fast reverse recovery time (5 ns) for high-speed switching. Temperature operating range from -65°C to 125°C.

2-lead DO-35 through-hole package. Peak forward surge current of 4 A. Minimal leakage current of 500 nA. RoHS compliant for environmental safety. Compact dimensions reduce PCB space consumption. Explore the Schottky Diodes & Rectifiers category at EnvMart for additional high-quality semiconductor components from trusted brands including STMicroelectronics.
