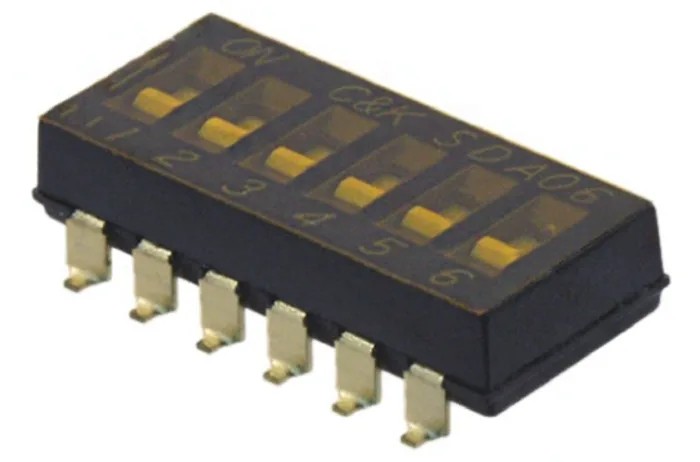

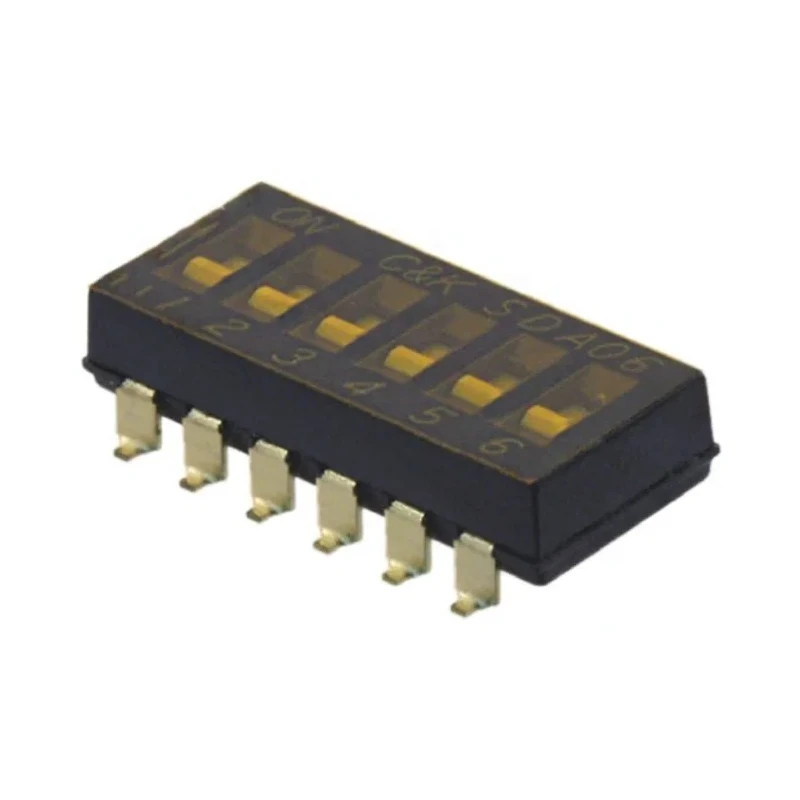

C & K Rotary Coded DIP Switch Surface Mount Flush Actuator SDA06H0SB

The C & K SDA06H0SB Rotary Coded DIP Switch with Surface Mount and Flush Actuator is a low-profile SPST switch engineered specifically for applications in telecom, computers, test equipment, security systems, and instrumentation. This switch features surface mount terminals allowing for automated insertion and soldering on printed circuit boards, ensuring reliable connectivity and ease of manufacturing.

Designed as part of the SDA series, this device offers a flush actuator that contributes to a compact form factor suitable where space constraints exist. The switch meets a contact rating of 100 mA at 5 V DC and 25 mA at 24 V DC, supporting low current control signals typical in industrial and commercial electronic systems.

With an electrical life rated at a minimum of 1000 cycles, the SDA06H0SB is built to withstand multiple actuations, providing dependable performance in switching roles. Its SPST configuration facilitates simple on/off rotary switching functions vital in encoding and signal routing.

This rotary coded DIP switch finds use in industrial and commercial sectors including automation, telecommunications, measurement, and security instrumentation, where accurate and repeatable switching is critical. Its surface mount design supports modern PCB assembly techniques, enhancing production efficiency.

The compact, low-profile design of the SDA06H0SB enables engineers to implement precise rotary switch inputs within limited spaces, making it ideal for embedded systems and compact control panels. The flush actuator provides a smooth, streamlined interface, reducing potential mechanical interference during operation.

The switch is a SPST type suitable for telecom, computers, test equipment, security, and instrumentation applications. Features surface mount terminals with a flush actuator design for compact assembly. Switch contact rating supports 100 mA at 5 V DC and 25 mA at 24 V DC.

Electrical life minimum of 1000 cycles ensures durability under repeated switching. Low profile SDA series provides efficient layout flexibility for PCB designs. Ideal for use in precise rotary coded switching configurations in automated and electronic devices.
