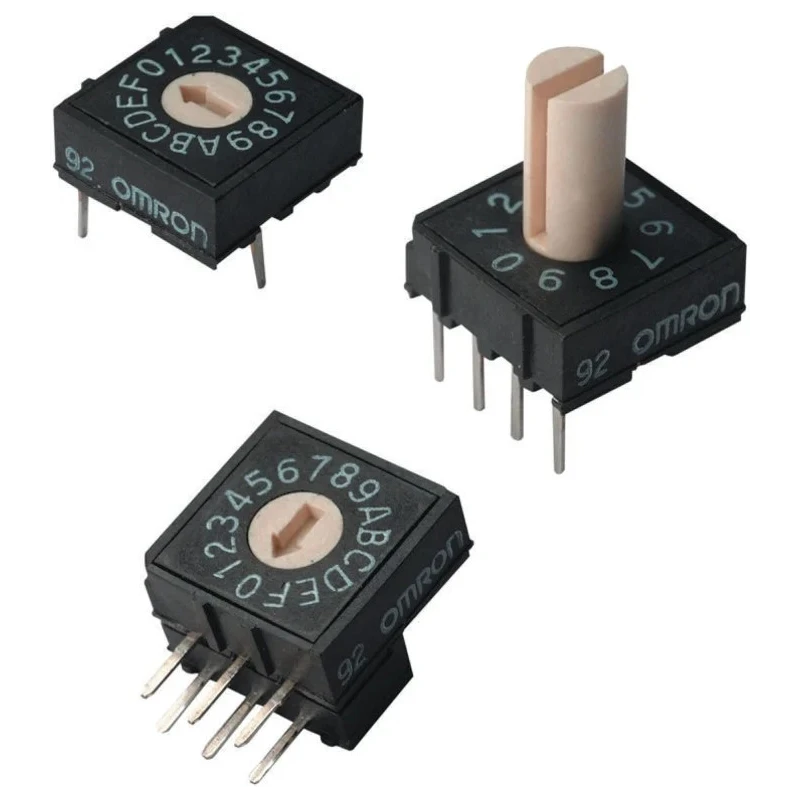

Omron Rotary Shaft Through Hole Rotary Coded DIP Switch A6R-162RS CHN
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Operating Temperature | -25 to +80°C |
| Model | A6R-162RS CHN |
| Mount Type | Through Hole |
| Actuator Type | Rotary Shaft |
| Contact Rating | 25mA @ 24Vdc |
| Insulation resistance | 100MΩ min @ 250Vdc |
| Contact Resistance | 200mΩ max |
| Electrical Life | 5000 steps per min |
| Omron Rotary Flush Rotary Coded DIP Switch Through HoleBrand | Omron |
Key Features
- Provides 10 or 16 way switching positions for flexible circuit configurations.
- Contact rating of 25mA at 24Vdc suitable for low power switching applications.
- Contact resistance maximum of 200 milliohms ensures reliable electrical performance.
- Insulation resistance of minimum 100 megaohms at 250Vdc prevents leakage currents.
- Electrical life rated at 5000 steps per minute for durable operation.
- Operates effectively within a temperature range of -25 to +80 degrees Celsius.
- Designed for through hole mounting with a rotary shaft actuator type for precise switching.
Product Description
The Omron A6R-162RS CHN Rotary Shaft Through Hole Rotary Coded DIP Switch is an industrial-grade component engineered for precise rotary switching applications on PCBs. It features an O-ring sealed rotor providing an IP60 rating that ensures protection against dust and dirt ingress, enhancing reliability in industrial automation and electrical systems.
This rotary DIP switch offers either 10 or 16 switching positions, allowing flexible and accurate configuration of control circuits. The switch is designed with a through hole mount type facilitating firm PCB attachment and stable mechanical operation.
Electrical specifications include a contact rating of 25mA at 24Vdc, suitable for low voltage signal control. Its contact resistance is capped at 200 milliohms, ensuring minimal voltage drop during switching. Insulation resistance is guaranteed to meet or exceed 100 megaohms at 250Vdc, minimizing leakage currents and enhancing circuit integrity.
Rated for an electrical life of 5000 steps per minute, this component is suited for high-cycle applications demanding durability and longevity. Operating temperatures range from -25 to +80 degrees Celsius, making it compatible with a wide range of environments, including industrial automation, manufacturing systems, and electrical control panels.
The rotary shaft actuator provides smooth, tactile operation for setting or adjustment in equipment design. Being RoHS compliant, it supports environmentally conscious manufacturing.
10 or 16 switching positions for flexible circuit control. Contact rating of 25mA at 24Vdc for low power applications. Contact resistance max 200mΩ for dependable electrical connection. Insulation resistance minimum 100MΩ at 250Vdc prevents current leakage.
Electrical life of 5000 steps/min ensures durability. Operating temperature from -25 to +80°C for versatile environment operation. Through hole mount type for stable PCB integration. Rotary shaft actuator for precise switching control.
This Rotary Coded DIP Switch is ideal for use in industrial tools, automation systems, electronic instrumentation, and control devices requiring reliable, multi-position switch input.
Explore the extensive range of Omron electronic components on EnvMart to find compatible devices and accessories for your projects and installations.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact rating is 25mA at 24Vdc, making it suitable for low power switching applications.
It has a minimum insulation resistance of 100 megaohms at 250Vdc, which helps prevent leakage currents.
The maximum contact resistance is 200 milliohms, ensuring reliable electrical performance during operation.
This model operates effectively within a temperature range of -25 to +80 degrees Celsius.
It offers either 10 or 16 switching positions, allowing for flexible circuit configurations.
It is designed for through hole mounting, which provides stable attachment to PCBs.
The electrical life is rated at 5000 steps per minute, suitable for high-cycle applications.
It features a rotary shaft actuator, which allows for precise switching control.
Yes, it is RoHS compliant, supporting environmentally conscious manufacturing practices.
It is ideal for use in industrial tools, automation systems, electronic instrumentation, and control devices.
The country of origin is China.
Specific dimensions and weight details are not provided in the available data.
