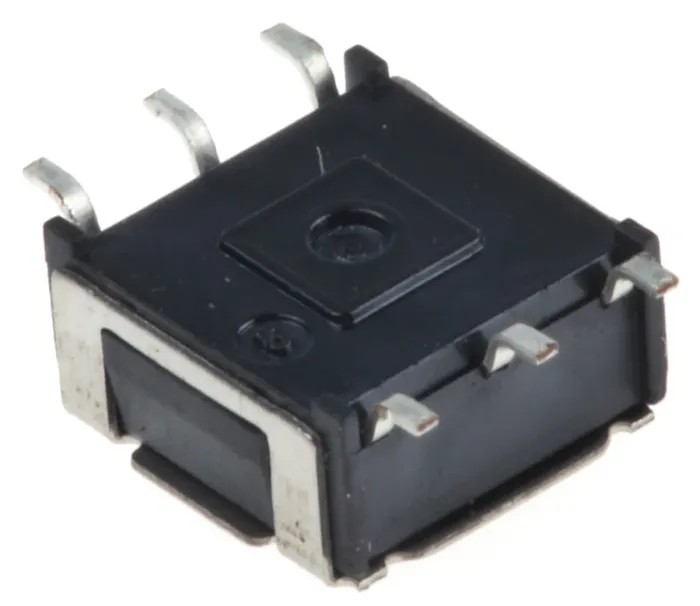

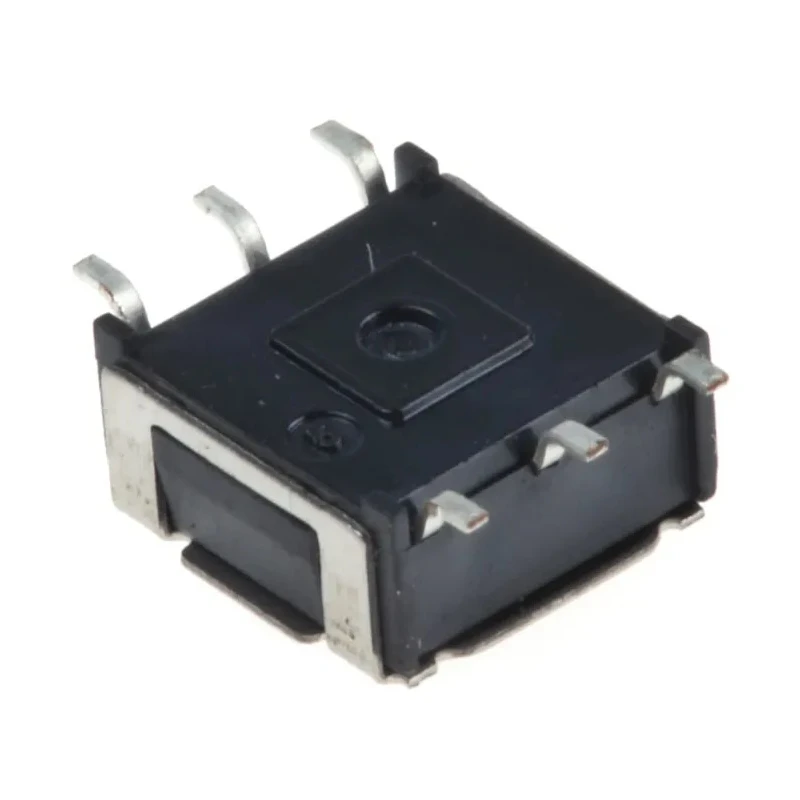

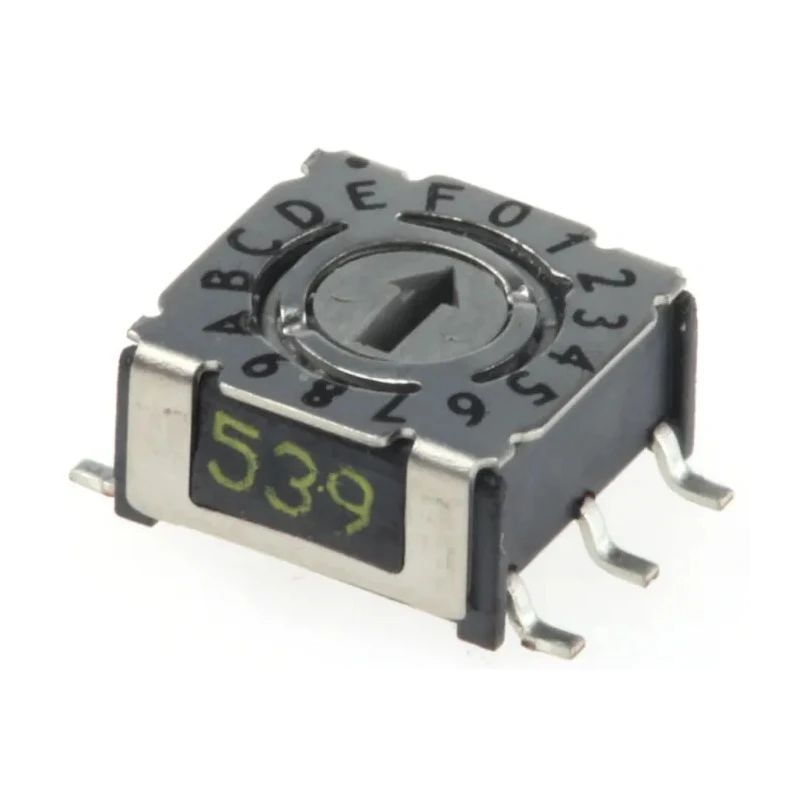

Hartmann Rotary Flush Rotary Coded DIP Switch Surface Mount P36S103
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Hartmann |
| Operating Temperature | -30 to +90°C |
| Model | P36S103 |
| Mount Type | Surface Mount |
| Actuator Type | Rotary Flush |
| Contact Rating | 150mA @ 24Vdc |
Key Features
- The switch features a surface mount type with rotary flush actuator for precise control.
- Contact rating is rated at 150mA at 24Vdc for low power signal switching.
- Mechanical life exceeds 104 operations ensuring long service life and durability.
- Operating temperature ranges from -30 to +90 degrees Celsius suitable for industrial environments.
- The device is flux sealed and process washable for enhanced robustness in manufacturing processes.
- Positive detent mechanism assures precise position feedback when switched.
- Gold plated contacts ensure low contact resistance and corrosion resistance.
- This product is made in Germany, reflecting quality manufacturing standards.
Product Description
Hartmann P36S103 rotary flush rotary coded DIP switch surface mount is designed for use in electronics and electrical systems requiring precise rotary encoding for signal control and selection.
It is a low profile in-line switch with a surface mount type, featuring a rotary flush actuator that provides accurate rotary coded dip switching.
The switch supports a contact rating of 150mA at 24Vdc suitable for low current applications and ensures mechanical life well above 100,000 operations, providing long-term reliability.
Operating temperature spans from -30 to +90 degrees Celsius, making it suitable for use in various industrial and automation environments.
The switch is flux sealed and process washable, ensuring durability in assembly lines and during cleaning processes. It also features a positive detent for tactile feedback and gold plated contacts for superior conductivity and corrosion resistance.
The surface mount design supports efficient PCB mounting in compact electronics assemblies. Gold plated contacts reduce contact resistance and improve switch longevity. Mechanical life rating supports extensive usage in industrial control and automation setups.
Operating temperature range enables performance stability under varying environmental conditions. Flux sealed construction allows process washing without damage, increasing manufacturing efficiency. Positive detent mechanism facilitates reliable switching position feedback for control circuitry.
Contact rating supports low power switching needs typical in signal processing and control systems.
This Hartmann Rotary Coded DIP Switch is made in Germany, reflecting its high-quality engineering standards. It is ideal for use in industrial automation, electrical control panels, instrumentation, and electronic assembly applications where precise rotary position encoding is required.
Browse the Electronics & Electricals category at EnvMart for compatible rotary coded switches and related components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact rating of this model is 150mA at 24Vdc, suitable for low power signal switching applications.
It operates within a temperature range of -30 to +90 degrees Celsius, making it suitable for various industrial environments.
This switch features a surface mount type design, allowing for efficient PCB mounting in compact electronic assemblies.
It uses a rotary flush actuator, providing precise control and accurate rotary coded dip switching.
The mechanical life of the switch exceeds 100,000 operations, ensuring long-term reliability in use.
Yes, it is flux sealed and process washable, enhancing its durability during manufacturing and cleaning processes.
It has a positive detent mechanism that provides tactile feedback, ensuring precise position feedback when switched.
This product is made in Germany, reflecting high-quality manufacturing standards.
Gold plated contacts ensure low contact resistance and corrosion resistance, enhancing the switch's longevity and performance.
It is ideal for use in industrial automation, electrical control panels, instrumentation, and electronic assembly applications requiring precise rotary position encoding.
The rotary coded DIP switch design allows for precise rotary encoding for signal control and selection, making it essential for various electronic systems.
Yes, the switch is designed for low current applications, supporting a contact rating of 150mA at 24Vdc.
