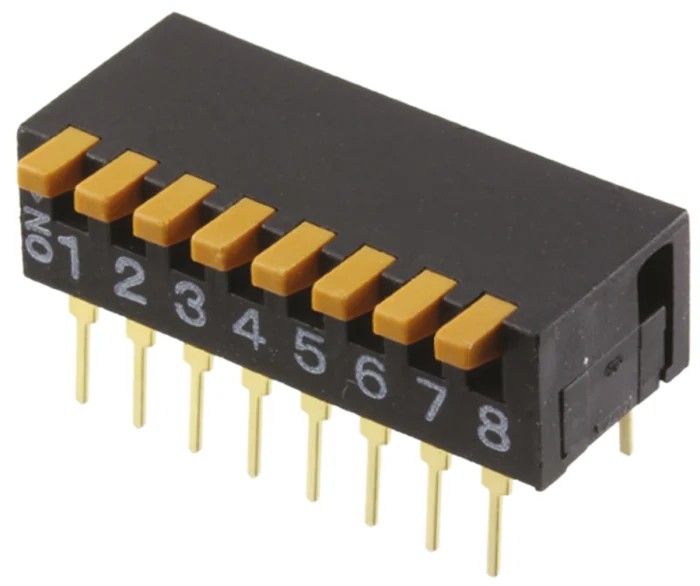

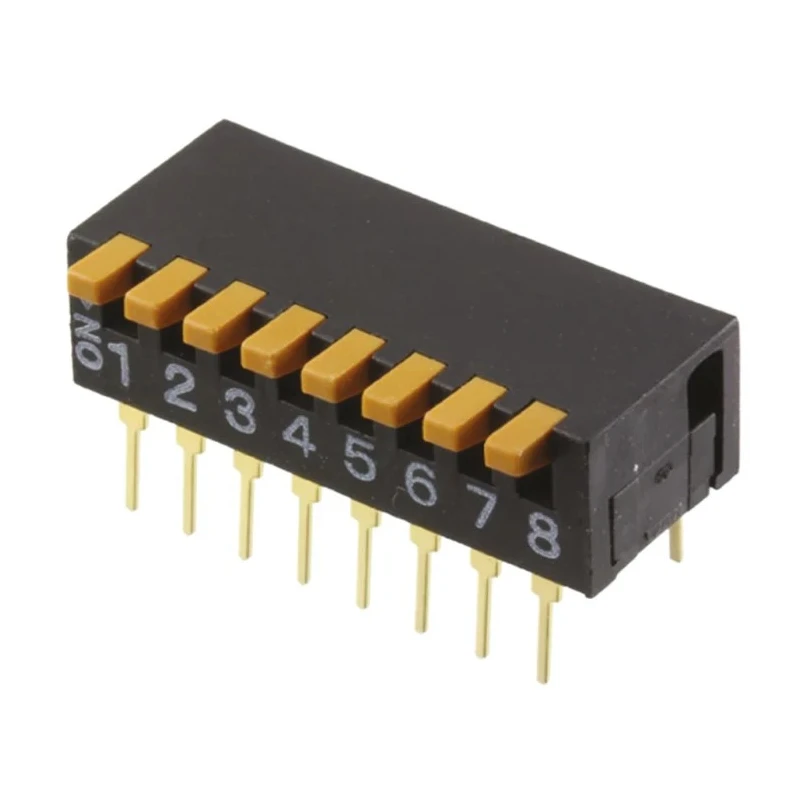

Omron Piano Rotary Coded DIP Switch Through Hole A6DR-8100

Omron A6DR-8100 Piano Rotary Coded DIP Switch Through Hole is a dustproof slide switch designed for precise and reliable rotary coded switching in various industrial and electronic applications.

The switch is engineered with a through hole mount type suitable for printed circuit board assemblies and features a piano actuator ensuring a smooth operational feel and definite tactile feedback. The use of gold plated twin contacts provides both self-cleaning action and a low contact resistance not exceeding 100 milliohms, critical for maintaining signal integrity in automation, electrical control systems, and instrumentation.

Rated for a mechanical life of 5,000 cycles, the switch ensures durability and longevity in industrial environments. Its insulation resistance is guaranteed at a minimum of 100 milliohms at 250 Vdc, providing excellent electrical isolation and safety. As a RoHS compliant product manufactured in China, it meets environmental standards for hazardous substances.

Applications include electrical automation, electronic switches, rotary encoding in control boards, instrumentation panels, and prototype PCB designs in laboratory and manufacturing settings.

This switch features a dustproof construction ensuring durability in challenging environments. It supports PCB through hole mounting for secure integration in electronic assemblies. Gold plated twin contacts provide a self-cleaning and low contact resistance functionality.

The switch actuator type is piano style for smooth, sure switching action. It exhibits a maximum contact resistance of 100 milliohms and insulation resistance of 100 milliohms minimum at 250 Vdc. The mechanical life of the switch is rated at 5,000 cycles.

Manufactured in China, this component complies with RoHS standards. Explore Omron switches and Rotary Coded DIP Switch solutions at EnvMart for reliable components suited for industrial, laboratory, and electronic manufacturing applications.
