Releco 24V DC Coil PCB Power Relay DPDT 6A Switching Current C7-T21X / DC 24 V

Free Delivery in India | Lowest Global Shipping Charges

Releco 24V DC Coil PCB Power Relay DPDT 6A Switching Current C7-T21X / DC 24 V

Name: Releco 24V DC Coil PCB Power Relay DPDT 6A Switching Current C7-T21X / DC 24 V
Brand: Releco
SKU: 306128
Price: 59.64 USD
Availability: InStock



Category Power Relay Brand Releco Condition New

Specifications

Country of Origin	India
Brand	Releco

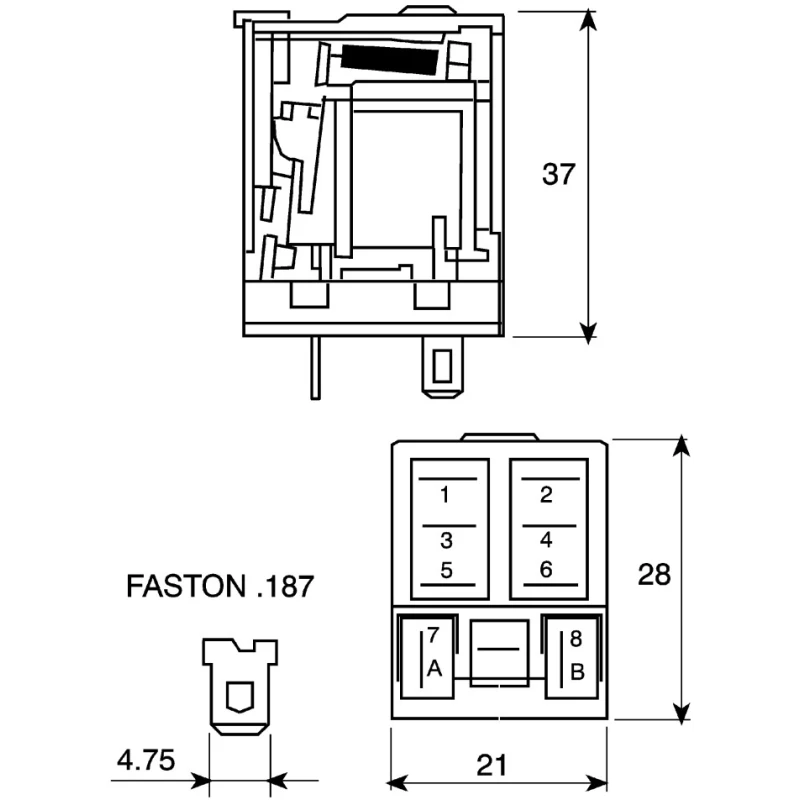

Height	56mm
Length	35mm
Model	C7-T21X / DC 24 V
Mount Type	PCB
Contact Material	Gold Plated
Series	C7
Maximum Operating Temperature	60°C
Contact Configuration	DPDT
Minimum Operating Temperature	-40°C
Switching Current	6A
Terminal type	Quick Connect
Standards/Approvals	RoHS, UL, IEC, EN, CSA
ANSI/ESD S20.20	2014
BS EN 61340-5-1	2007
Coil Resistance	594Ω
Coil Voltage	24V dc
Switching AC Voltage	240V ac
Coil Power	900mW

Key Features

Compact PCB mounting design with quick connect terminals for ease of installation.
Coil power consumption is 900mW with resistance of 594 ohms ensuring efficient operation.
Switching capability of up to 2.5kVA and maximum AC voltage of 240V AC.
Wide operating temperature range from -40°C to 60°C suitable for diverse environments.
Gold plated bifurcated contacts provide reliable low-level signal switching.
Test button with color-coded mechanical and LED indicators enhances troubleshooting.
Complies with RoHS, UL, IEC, EN, and CSA safety and quality standards.
Includes removable marking label for easy identification of relay functions.

Product Description

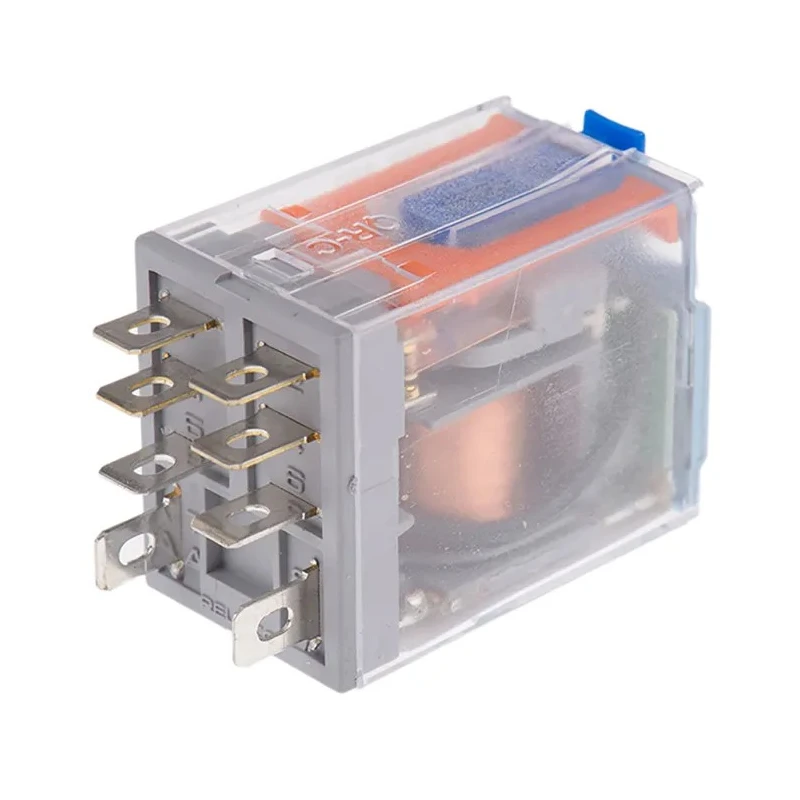

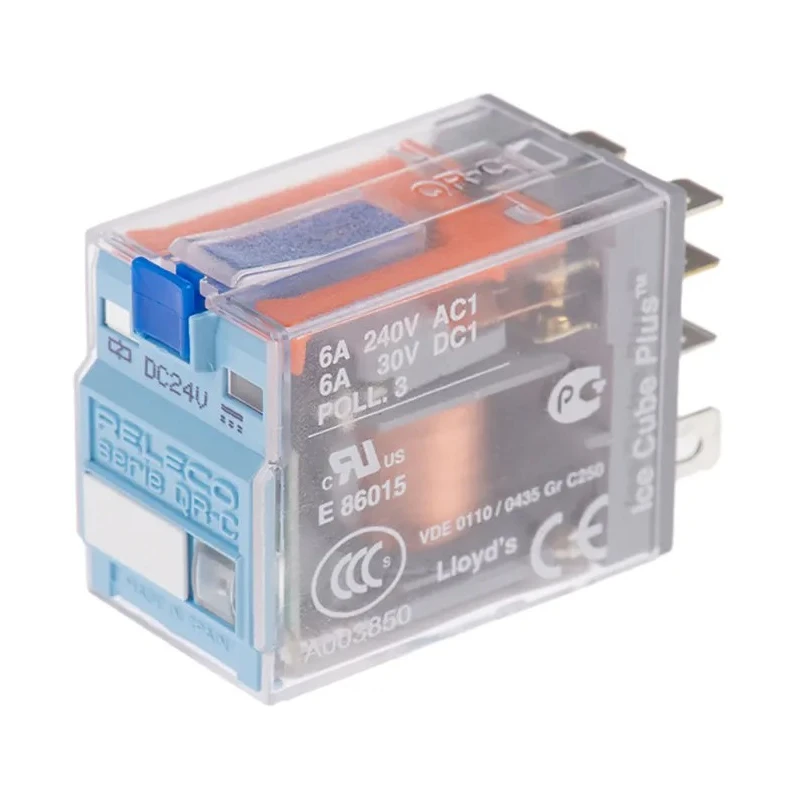

Releco C7-T21X / DC 24 V PCB Power Relay is a high-performance double pole double throw (DPDT) relay designed for printed circuit board mounting with a 24V DC coil voltage. The relay supports a switching current of 6A and switching power up to 2.5kVA, making it suitable for various industrial and automation applications.

This relay features quick connect terminal types to facilitate fast installation and maintenance. Its coil power consumption is 900mW with a coil resistance of 594 ohms, optimizing energy efficiency during operation. The relay can operate reliably in temperatures ranging from -40°C minimum to 60°C maximum, ensuring durability in harsh environments.

The contact material is gold plated and bifurcated, which improves conductivity and supports low-level signal switching down to 5mA at 5V DC. A color-coded test button with mechanical flag and LED indicator enables easy status monitoring and manual testing or latching functions. Additionally, a removable marking label assists with clear identification during maintenance and assembly.

Certified to international standards including RoHS, UL, IEC, EN, and CSA, this Releco power relay is ideal for industrial automation, control panels, HVAC systems, power management circuits, and signal conditioning tasks.

Compact PCB mount format with quick connect terminals. High efficiency coil with 900mW power and 594 ohm resistance. Switching capacity of 6A at 240V AC and 2.5kVA power. Wide operating temperature range from -40°C to 60°C.

Gold plated bifurcated contacts for enhanced signal switching. Color-coded test button, LED, and mechanical indicators for operational status. Removable labeling for ease of identification and maintenance. Compliance with global standards RoHS, UL, IEC, EN, CSA.
