| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.15mm |
| Length | 1.95mm |
| Model | GDZ2V0B-G3-08 |
| Mount Type | Surface |
| Series | GDZ-G |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-323 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | AEC-Q101, UL 94 V-0 |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 0.2W |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 120μA |
| Nominal Zener Voltage Vz | 2.2V |
| Zener Type | Small Signal |

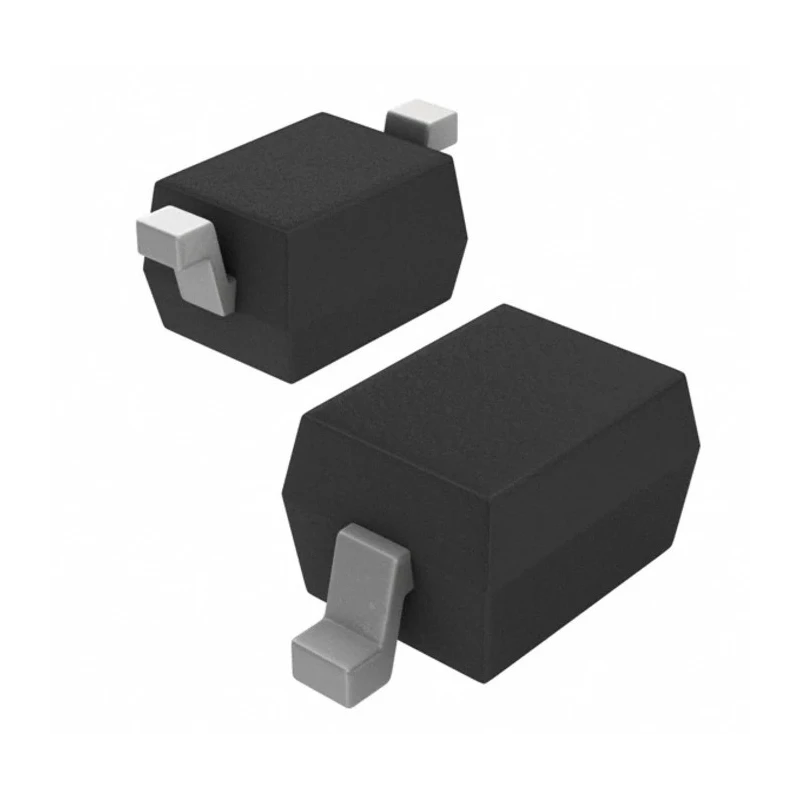

Vishay GDZ2V0B-G3-08 is a single small signal Zener Diode with a nominal Zener voltage of 2.2 V and maximum power dissipation of 0.2 W, designed for surface mount technology in a 3-pin SOD-323 package.
This diode offers excellent voltage regulation and stabilization capabilities, making it suitable for various electronic circuit applications. The device features low Zener impedance and minimal leakage current, contributing to efficient and reliable performance.
It is qualified to the stringent automotive standard AEC-Q101 and is UL 94 V-0 listed, providing assurances for safety and thermal performance under defined conditions. The diode operates reliably across a wide temperature range of -55°C to 150°C.
Featuring ESD capability beyond 8 kV (human body model) and 800 V (machine model), this diode ensures robustness in sensitive electronic environments. Additionally, it is lead-free and halogen-free, supporting compliance with environmental directives.
Common industrial, automotive, and consumer electronics applications include voltage regulators, voltage stabilization circuits, and protective circuitry against voltage spikes. Nominal Zener voltage: 2.2 V with 2% tolerance.
Maximum power dissipation: 0.2 W. Surface mount 3-pin SOD-323 package. Operating temperature range: -55°C to 150°C. AEC-Q101 qualified for automotive applications. Low leakage current and low Zener impedance. High ESD robustness per AEC-Q101 standards.
Lead (Pb) free and halogen free design. Suitable for automated PCB assembly processes. Ideal for voltage regulation and stabilization tasks. Explore more Vishay components and other semiconductors on EnvMart for industrial electronics needs.
