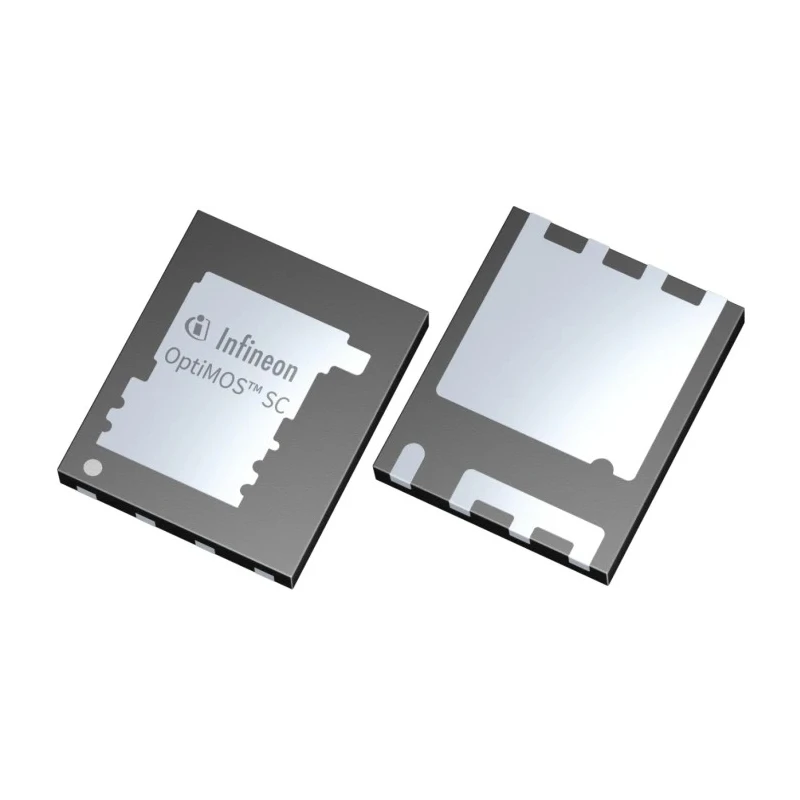

Infineon N-Channel MOSFET, 381 A, 40 V, 8-Pin SuperSO8 5 x 6 DSC, Surface Mount, OptiMOS 5 Technology BSC040N10NS5SCATMA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Model | BSC040N10NS5SCATMA1 |
| Mount Type | Surface |
| Series | BSC |
| Maximum Operating Temperature | 175°C |
| Package Type | SuperSO8 5 x 6 DSC |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Channel Type | N |
| Maximum Continuous Drain Current Id | 381A |
| Maximum Drain Source Voltage Vds | 40V |
| Maximum Drain Source Resistance Rds | 0.7mΩ |
| Channel Mode | N |
| Maximum Power Dissipation Pd | 81W |
| Typical Gate Charge Qg @ Vgs | 80nC |
| Maximum Gate Source Voltage Vgs | 20V |
| Forward Voltage Vf | 1V |
Key Features
- Employs latest OptiMOS 5 technology for high efficiency and low conduction losses.
- Features low RDS(on) value of 0.7mΩ ensuring minimal power dissipation.
- Constructed with dual-side cooling via exposed clip reducing thermal resistance.
- Operates reliably over -55°C to 175°C temperature range.
- Maximum power dissipation up to 81 W suits demanding industrial applications.
- Max gate-source voltage of 20 V allows flexible drive voltage range.
- Pin count of 8 supports standard SuperSO8 footprint for easy integration.
- RoHS compliant ensuring environmental safety standards.
Product Description
Infineon BSC040N10NS5SCATMA1 is a high-performance N-Channel MOSFET designed with the latest OptiMOS™ 5 technology, housed in a compact SuperSO8 5 x 6 DSC surface mount package with 8 pins. This MOSFET supports a maximum continuous drain current of 381 A at a voltage rating of 40 V, making it well-suited for demanding electronic environments.
The component features low on-resistance RDS(on) of 0.7mΩ which reduces conduction losses, thereby enhancing energy efficiency in power-sensitive industrial circuits. Its exposed clip for dual-side cooling significantly lowers thermal resistance, allowing improved heat dissipation for more reliable operation under high loads.
The device supports a power dissipation maximum of 81 W and operates safely across a broad temperature range from -55°C to 175°C. The maximum gate-source voltage rating is 20 V, providing a robust drive range compatible with many control circuits.
This MOSFET fits the standard SuperSO8 footprint, facilitating drop-in replacement and straightforward implementation on PCBs. It complies with RoHS standards, ensuring adherence to environmental safety regulations.
Applications include telecommunications equipment, server power supplies, and motor drive systems, where high efficiency and power density are critical. Employs OptiMOS 5 technology for optimized switching and conduction.
Low thermal resistance design with dual-side cooling clip. High maximum drain current of 381 A at 40 V rating. Wide operating temperature range from -55°C to 175°C. Surface mount package suitable for high-density electronics.
Low gate charge of 80 nC enabling fast switching performance. Standard SuperSO8 footprint with 8 pins for easy PCB integration. RoHS compliant ensuring eco-friendly manufacturing. Designed for high power density applications in telecom and servers.
Explore more Infineon semiconductor products and related MOSFETs on EnvMart to enhance your industrial and commercial electronics projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous drain current for this model is 381 A.
This MOSFET has a maximum drain-source voltage rating of 40 V.
It features a low on-resistance RDS(on) value of 0.7 mΩ, which helps reduce conduction losses.
The operating temperature range is from -55°C to 175°C.
It supports a maximum power dissipation of 81 W, suitable for demanding applications.
This model is housed in a SuperSO8 5 x 6 DSC surface mount package with 8 pins.
The maximum gate-source voltage rating is 20 V, allowing for a flexible drive voltage range.
The typical gate charge at Vgs is 80 nC, enabling fast switching performance.
Yes, it is RoHS compliant, ensuring it meets environmental safety standards.
It is suitable for applications such as telecommunications equipment, server power supplies, and motor drive systems.
It employs the latest OptiMOS 5 technology for high efficiency and low conduction losses.
It features dual-side cooling via an exposed clip, which reduces thermal resistance for improved heat dissipation.
