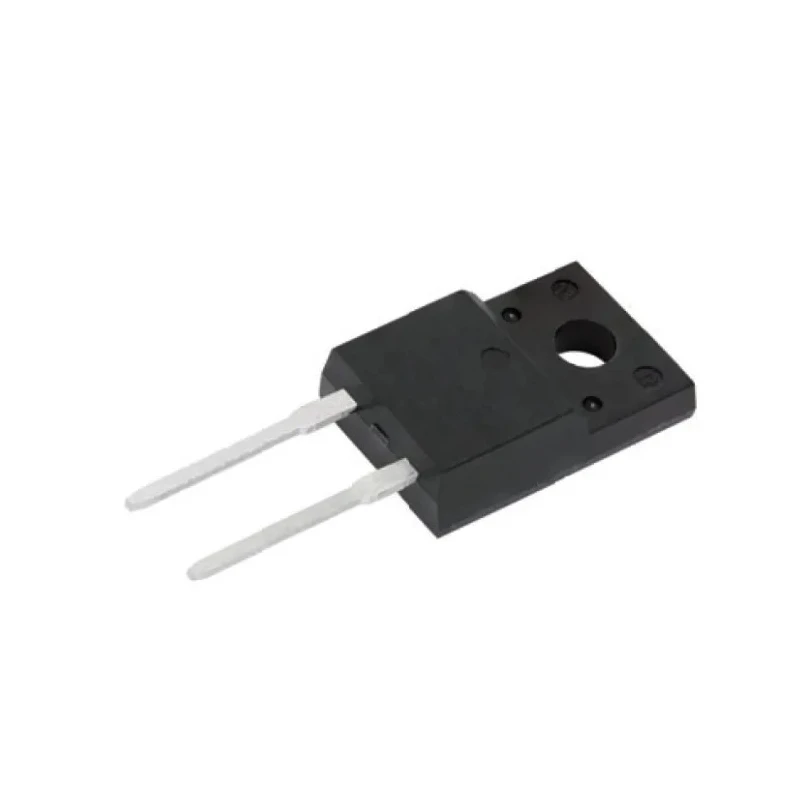

Vishay 600 V 30 A General Purpose Rectifier & Schottky Diode Surface Mount TO-220FP VS-ETH3106FP-N3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | VS-ETH3106FP-N3 |
| Mount Type | Surface |
| Series | FRED Pt |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-220FP |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 30A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Non-Repetitive Forward Surge Current Ifsm | 280A |
| Maximum Forward Voltage Vf | 1.4V |
Key Features
- Features hyperfast soft recovery time to reduce switching losses.
- Low forward voltage drop enhances energy efficiency.
- Operates at junction temperatures up to 175°C.
- Fully isolated TO-220FP package with 2500 VRMS isolation.
- Low leakage current for reliable performance in power supplies and inverters.
- Compliant with RoHS and automotive AEC-Q101 standards.
- Designed for use in AC/DC switch mode power supplies and motor drives.
- True 2-pin configuration with rugged planar structure and platinum-doped lifetime control.
Product Description
Vishay VS-ETH3106FP-N3 is a high-performance general purpose rectifier and Schottky diode designed for surface mounting in TO-220FP package. Rated for a maximum continuous forward current of 30 A and capable of withstanding peak reverse repetitive voltage up to 600 V, it ensures superior efficiency and reliability in power applications.
This diode features hyperfast soft recovery time, which significantly reduces switching losses, and a low forward voltage drop, contributing to lower power dissipation. It is capable of operating at elevated junction temperatures up to 175°C, making it suitable for demanding industrial and automotive environments.
Its fully isolated package offers an isolation voltage of 2500 VRMS, improving safety and design flexibility. The device has low leakage current, enhancing operational reliability in power factor correction (PFC), AC/DC switch mode power supplies, UPS systems, inverters, high-frequency welding equipment, and motor drives.
The planar structure combined with platinum-doped lifetime control results in excellent ruggedness and durability. The two-pin configuration simplifies circuit integration. This diode is designed and qualified according to JEDEC JESD 47 standards and is compliant with RoHS directives as well as automotive standard AEC-Q101.
Hyperfast soft recovery time minimizes switching losses. Low forward voltage drop improves energy efficiency. High operating junction temperature up to 175 °C. Fully isolated TO-220FP package with 2500 VRMS electrical isolation.
Low leakage current ensures reliable operation. Meets RoHS and automotive AEC-Q101 standards. Ideal for power factor correction and switch mode power supplies. Durable planar construction with platinum lifetime control for ruggedness.
This Vishay rectifier diode is widely used in industrial, automotive, and commercial electronic applications requiring efficient and robust power rectification. Explore related electronic components and Schottky Diodes at EnvMart for versatile selection and compatibility.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the Vishay VS-ETH3106FP-N3 is 30 A.
It has a peak reverse repetitive voltage rating of 600 V.
The diode operates within a temperature range of -55°C to 175°C.
This model comes in a fully isolated TO-220FP package.
The maximum forward voltage drop is 1.4 V.
It is compliant with RoHS and automotive AEC-Q101 standards.
The isolation voltage rating is 2500 VRMS.
The peak non-repetitive forward surge current is rated at 280 A.
It uses a single diode configuration.
This diode is designed for use in AC/DC switch mode power supplies, UPS systems, inverters, and motor drives.
It features hyperfast soft recovery time, which reduces switching losses.
The diode is manufactured in India.
