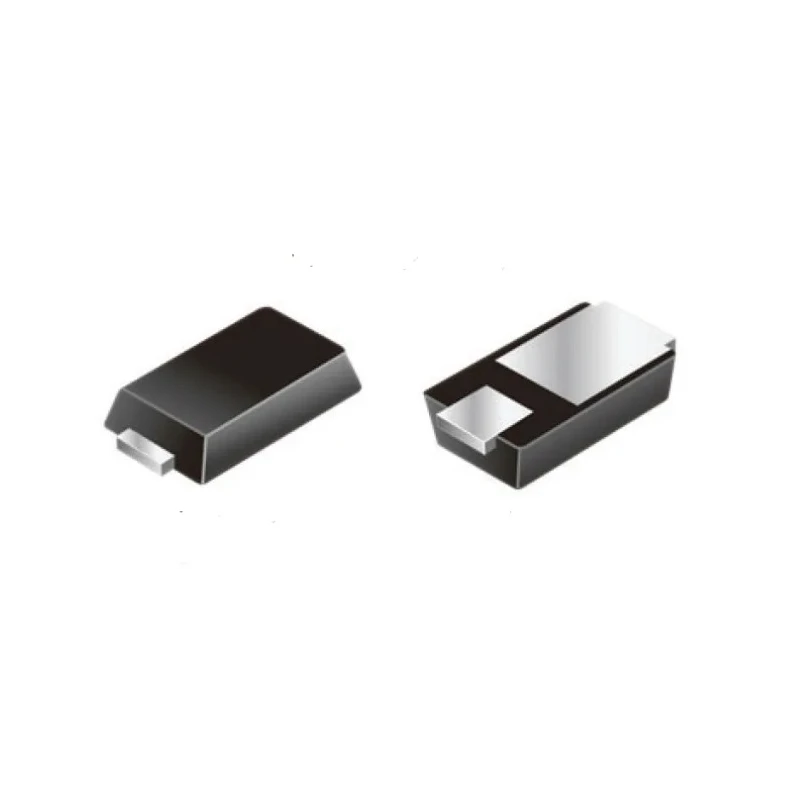

Vishay 100 V 1 A Rectifier & Schottky Diode General Purpose MicroSMP VS-1EQH01HM3/H
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | VS-1EQH01HM3/H |
| Mount Type | Surface |
| Series | FRED Pt |
| Maximum Operating Temperature | 175°C |
| Package Type | MicroSMP |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 0.72V |
Key Features
- Rated for continuous forward current of 1 ampere.
- Maximum peak reverse repetitive voltage of 100 volts.
- Low forward voltage drop at 0.72 volts reducing power losses.
- Operates reliably in temperatures ranging from -55°C to 175°C.
- Qualified to AEC-Q101 automotive standard ensuring high reliability.
- Utilizes surface mount MicroSMP packaging for automated assembly.
- Low leakage current ideal for high efficiency circuits.
- Capable of handling 30 amp peak non-repetitive surge currents.
Product Description
The Vishay VS-1EQH01HM3/H is a high-quality rectifier and Schottky diode designed for general purpose applications in electronic circuits. This diode is constructed in a low profile MicroSMP surface mount package with a typical height of 0.65 mm, making it ideal for automated placement on densely populated PCBs.
It has a maximum continuous forward current rating of 1 ampere and a peak reverse repetitive voltage rating of 100 volts. The maximum forward voltage drop is a low 0.72 volts, contributing to low power loss and improved efficiency in power conversion and rectification applications. The diode is capable of handling surge currents of up to 30 amperes peak non-repetitive forward surge, ensuring robustness under transient conditions.
The device operates reliably over a wide temperature range from -55°C up to 175°C, supporting demanding industrial and automotive environments. It conforms to the AEC-Q101 automotive qualification standard demonstrating its suitability for automotive electronics applications.
The Vishay rectifier Schottky diode is designed for usage in high frequency switching circuits such as freewheeling diodes, DC/DC converters, power factor correction (PFC) circuits, and snubber applications. With low leakage currents and excellent switching performance, it contributes to enhanced energy efficiency and circuit reliability.
This diode also meets RoHS environmental standards, ensuring compliance with global ecological safety requirements. Its compact MicroSMP package supports modern automated manufacturing techniques, increasing production efficiency and consistency.
Rated continuous forward current of 1A and peak reverse voltage of 100V. Low forward voltage drop for improved efficiency. Wide operating temperature range from -55°C to 175°C. AEC-Q101 qualified automotive standard compliance.
Surface mount MicroSMP package ideal for automated PCB assembly. Suitable for industrial, automotive, power conversion, and high frequency applications. Low leakage current and high surge current capability. RoHS compliant for environmental protection.
Explore more Vishay Schottky Diode products and components on EnvMart for reliable semiconductor solutions designed for high-performance electronics.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of this diode is 1 ampere.
The peak reverse repetitive voltage for this model is 100 volts.
The maximum forward voltage drop is 0.72 volts, which helps reduce power losses.
This diode operates reliably in temperatures ranging from -55°C to 175°C.
It can handle peak non-repetitive forward surge currents of up to 30 amperes.
It utilizes a MicroSMP surface mount package, which is suitable for automated assembly.
Yes, it is qualified to the AEC-Q101 automotive standard, ensuring high reliability for automotive applications.
This model is suitable for high frequency switching circuits, DC/DC converters, and power factor correction circuits.
It meets RoHS environmental standards, ensuring compliance with global ecological safety requirements.
The diode configuration is single, designed for general purpose applications.
This diode belongs to the FRED Pt series.
The minimum operating temperature for this diode is -55°C.
