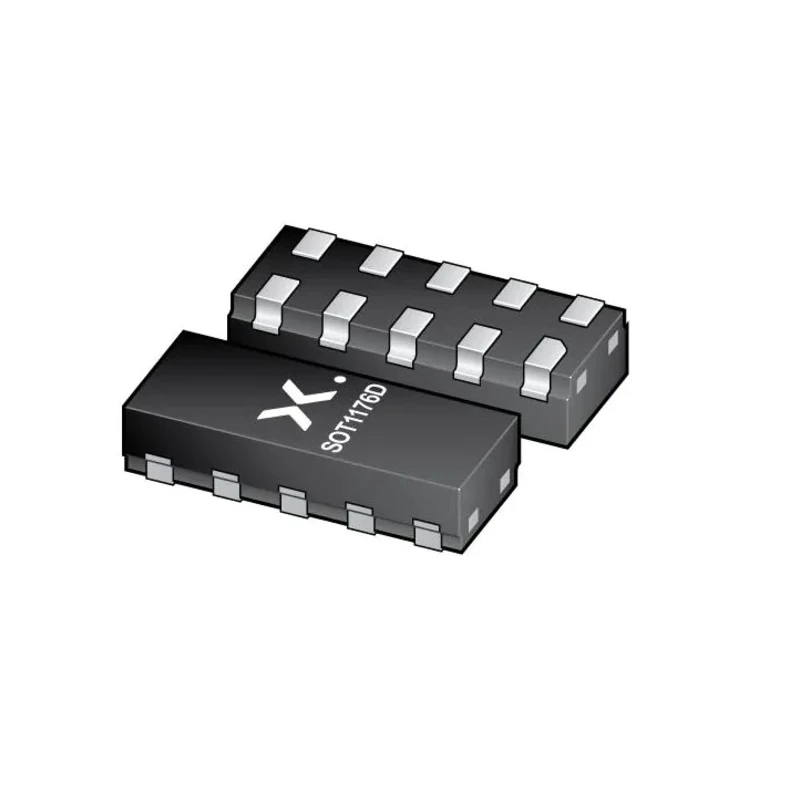

Nexperia Bi-Directional ESD Protection Diode DFN2510D Package, 6V Breakdown Voltage, 7A Peak Pulse Current PESD4USB5B-TBS
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1mm |
| Length | 2.5mm |
| Model | PESD4USB5B-TBS |
| Width | 0.75mm |
| Mount Type | Surface |
| Series | PESD4USB5B-TBS |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN2510D |
| Minimum Operating Temperature | -65°C |
| Interfaces | USB 2 |
| Standards/Approvals | IEC 61000-4-2 |
| Clamping Voltage VC | 5.5V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 6V |
| Maximum Reverse Stand-off Voltage Vwm | 5V |
| Maximum Peak Pulse Current Ippm | 7A |
| Maximum Reverse Leakage Current | 100nA |
| Infotainment applications | USB 2.0, SuperSpeed USB 3.2 at 10 Gbps, HDMI 2.0, HDBaseT |
Key Features
- Provides system-level ESD protection for USB 2.0 and SuperSpeed USB 3.2 at 10 Gbps.
- Compatible with HDMI 2.0, DisplayPort, eSATA, and LVDS interfaces.
- Features a low line capacitance of 0.5 pF per channel ensuring signal integrity.
- Very low dynamic resistance of 0.4 Ω for outstanding system protection.
- Has matched 0.5 mm trace spacing and side-wettable flanks for assembly ease.
- Suitable for infotainment, automotive A/V monitors, displays, and cameras.
- Complies with IEC 61000-4-2 and Automotive AEC-Q101 standards.
- Ultra-compact DFN2510D package with dimensions 2.5mm × 0.75mm × 1mm.
Product Description
The Nexperia PESD4USB5B-TBS is a bi-directional ESD Protection Diode designed to shield sensitive high-speed data interfaces from electrostatic discharge. This device is ideal for protecting USB 2.0, SuperSpeed USB 3.2 at 10 Gbps interfaces, HDMI 2.0, DisplayPort, external Serial Advanced Technology Attachment (eSATA), Low Voltage Differential Signalling (LVDS), and Gigabit Multimedia Serial Link (GMSL) Serializer/Deserializer (SerDes) applications.
The diode features a minimal line capacitance of 0.5 pF per channel, preserving signal quality and reducing distortion. Outstanding system protection is achieved through a deep snap-back characteristic combined with a dynamic resistance of 0.4 Ω. Its construction includes matched 0.5 mm trace spacing and side-wettable flanks (SWF) that facilitate automated optical inspection (AOI) and soldering processes.
Compact in the DFN2510D package measuring 2.5 mm length, 0.75 mm width, and 1 mm height, the diode supports wide operating temperatures ranging from -65°C to 150°C. This device conforms to IEC 61000-4-2 and meets automotive-grade standards including AEC-Q101.
System-level ESD protection for USB 2.0 and SuperSpeed USB 3.2 at 10 Gbps. Protects HDMI 2.0, DisplayPort, eSATA, LVDS, and automotive A/V applications. Low line capacitance of 0.5 pF maintains high-speed signal integrity.
Dynamic resistance of 0.4 Ω enables superior ESD clamping performance. Side-wettable flanks and matched trace spacing ensure design compatibility. Automotive qualified to AEC-Q101 for high reliability. Compact footprint DFN2510D surface mount package ideal for space-constrained designs.
This diode is perfectly suited for industrial, automotive, consumer electronics, and infotainment applications requiring robust electrostatic discharge protection in compact form factors. For more reliable semiconductor and electronic component solutions, browse the Electronics & Electricals and Semiconductor sections at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PESD4USB5B-TBS diode has a minimum breakdown voltage of 6V.
This model can handle a maximum peak pulse current of 7A.
The DFN2510D package measures 2.5 mm in length, 0.75 mm in width, and 1 mm in height.
It provides ESD protection for USB 2.0, SuperSpeed USB 3.2 at 10 Gbps, HDMI 2.0, DisplayPort, eSATA, and LVDS interfaces.
The operating temperature range for this diode is from -65°C to 150°C.
The diode features a low line capacitance of 0.5 pF per channel, which helps maintain signal integrity.
Yes, it complies with IEC 61000-4-2 and meets the automotive standard AEC-Q101.
The dynamic resistance of this diode is 0.4 Ω, contributing to its effective ESD clamping performance.
The PESD4USB5B-TBS is designed for surface mounting.
It is suitable for infotainment, automotive A/V monitors, displays, and cameras.
The maximum reverse stand-off voltage for the PESD4USB5B-TBS is 5V.
It has matched 0.5 mm trace spacing and side-wettable flanks, which ease the assembly process.
