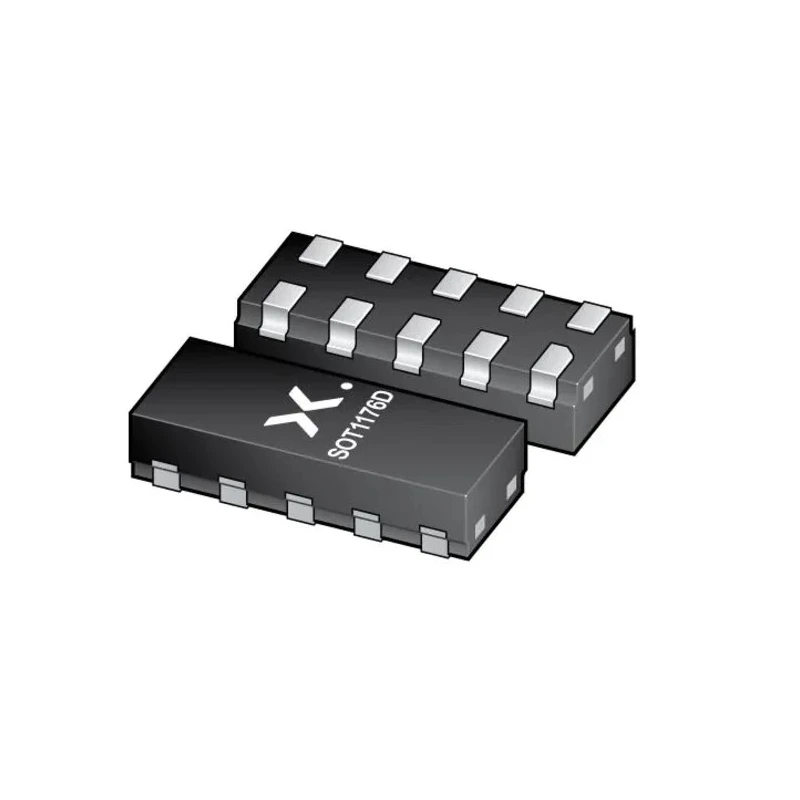

Nexperia Uni-Directional ESD Protection Diode DFN2510D 6V Breakdown Voltage 7A Peak Pulse Current PESD4USB3U-TBS
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1mm |
| Length | 2.5mm |
| Model | PESD4USB3U-TBS |
| Width | 0.78mm |
| Mount Type | Surface |
| Series | PESD4USB3U-TBS |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN2510D |
| Minimum Operating Temperature | -65°C |
| Interfaces | USB 2 |
| Standards/Approvals | IEC 61000-4-2 |
| Clamping Voltage VC | 3.5V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6V |
| Maximum Reverse Stand-off Voltage Vwm | 3.3V |
| Maximum Peak Pulse Current Ippm | 7A |
| Maximum Reverse Leakage Current | 100nA |
| Infotainment applications | USB 2.0, SuperSpeed USB 3.2 at 10 Gbps, HDMI 2.0, HDBaseT |
Key Features
- The diode features a minimum breakdown voltage of 6V for reliable protection against voltage spikes.
- It supports a maximum peak pulse current of 7A ensuring high surge tolerance.
- Surface mount package type DFN2510D ensures compact and easy PCB integration.
- Operates over a wide temperature range from -65°C to 150°C for versatile industrial applications.
- Low line capacitance of 0.5 pF per channel maintains signal integrity in high-speed data lines.
- Compliant with IEC 61000-4-2 standard for ESD protection effectiveness.
- Suitable for automotive-grade applications with AEC-Q101 qualification.
- Designed for interfaces including USB 2.0, SuperSpeed USB 3.2, HDMI 2.0, DisplayPort, eSATA and LVDS.
Product Description
The Nexperia PESD4USB3U-TBS is a uni-directional electrostatic discharge protection diode designed specifically for safeguarding sensitive high-speed interfaces against potentially damaging ESD events. With a minimum breakdown voltage of 6V and the ability to handle peak pulse currents up to 7 amps, this diode offers reliable surge suppression while maintaining signal integrity through its minimal 0.5 pF line capacitance per channel. Its DFN2510D surface mount package allows for compact and space-saving application on printed circuit boards.
Operating effectively over a broad temperature range from -65°C to 150°C, this diode is suitable for demanding industrial, automotive, and telecommunication environments. It meets the IEC 61000-4-2 standard for ESD protection and is automotive qualified according to AEC-Q101 standards, making it an ideal choice for automotive A/V monitors, displays, and camera systems.
The PESD4USB3U-TBS supports critical interfaces such as USB 2.0, SuperSpeed USB 3.2 at 10 Gbps, HDMI 2.0, DisplayPort, eSATA, and Low Voltage Differential Signaling (LVDS), enabling protection across a wide range of high-speed data applications including infotainment systems and Serializer/Deserializer (SerDes) technologies like Gigabit Multimedia Serial Link (GMSL) and FPD-Link.
The diode offers unmatched system-level ESD robustness with dynamic resistance of 0.4 Ω and deep snap-back characteristics. Its matched 0.5 mm trace spacing and side-wettable flanks (SWF) facilitate effective automated optical inspection (AOI) and manufacturing processes.
The design allows pass-through signal routing, simplifying PCB layout requirements. Ideal for diverse industrial, automotive, consumer electronics, and communication equipment applications.
This component advances system safety in environments exposed to ESD threats and ensures long-term reliability of connected electronic systems. Suitable for use in industrial, automotive, and commercial electronic manufacturing aiming to enhance durability and compliance with international ESD standards. Explore similar components in the TVS Diode category at EnvMart for comprehensive surge and ESD protection solutions.
Explore more products in our ESD Protection Diode category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The minimum breakdown voltage of this diode is 6V, providing reliable protection against voltage spikes.
It can handle a maximum peak pulse current of 7A, ensuring high surge tolerance during ESD events.
This diode features a low line capacitance of 0.5 pF per channel, which helps maintain signal integrity in high-speed data lines.
It operates effectively over a wide temperature range from -65°C to 150°C, making it suitable for various industrial applications.
The PESD4USB3U-TBS comes in a DFN2510D surface mount package, which allows for compact and easy integration on PCBs.
It is compliant with the IEC 61000-4-2 standard for ESD protection effectiveness and is automotive qualified according to AEC-Q101 standards.
This model is designed for critical interfaces including USB 2.0, SuperSpeed USB 3.2, HDMI 2.0, DisplayPort, eSATA, and LVDS.
The clamping voltage (VC) is 3.5V, providing additional protection during ESD events.
The maximum reverse stand-off voltage (Vwm) is 3.3V, which defines the maximum voltage that can be applied without causing conduction.
The dimensions of this diode are 2.5mm in length, 0.78mm in width, and 1mm in height.
This diode is suitable for applications in automotive A/V monitors, displays, camera systems, and other high-speed data applications.
The maximum reverse leakage current is 100nA, which is critical for maintaining low power consumption in sensitive applications.
