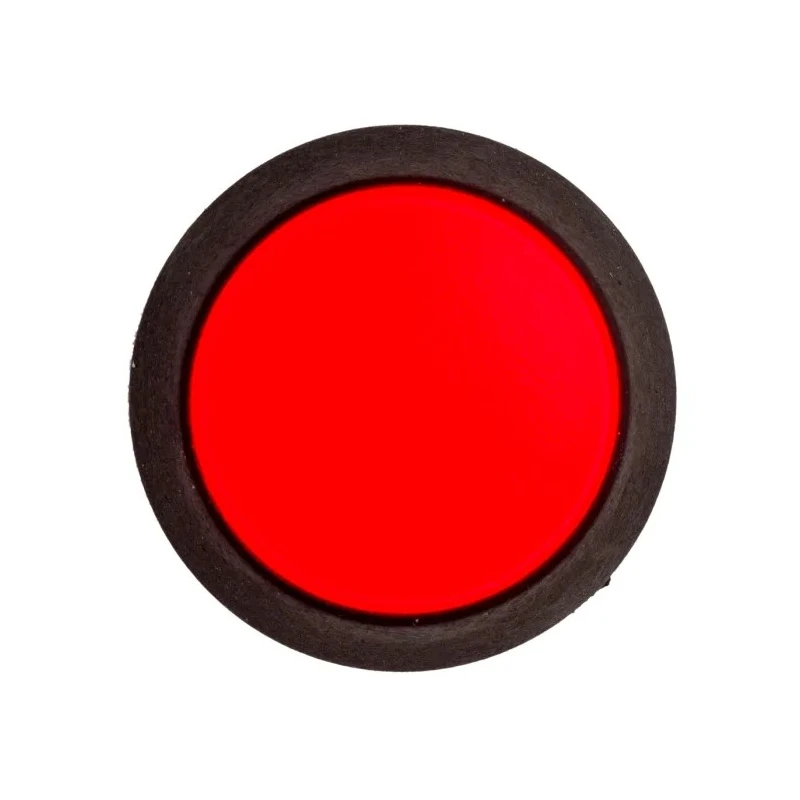

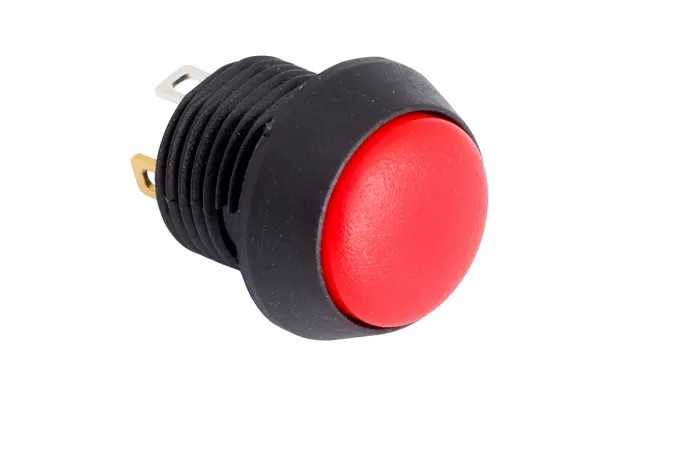

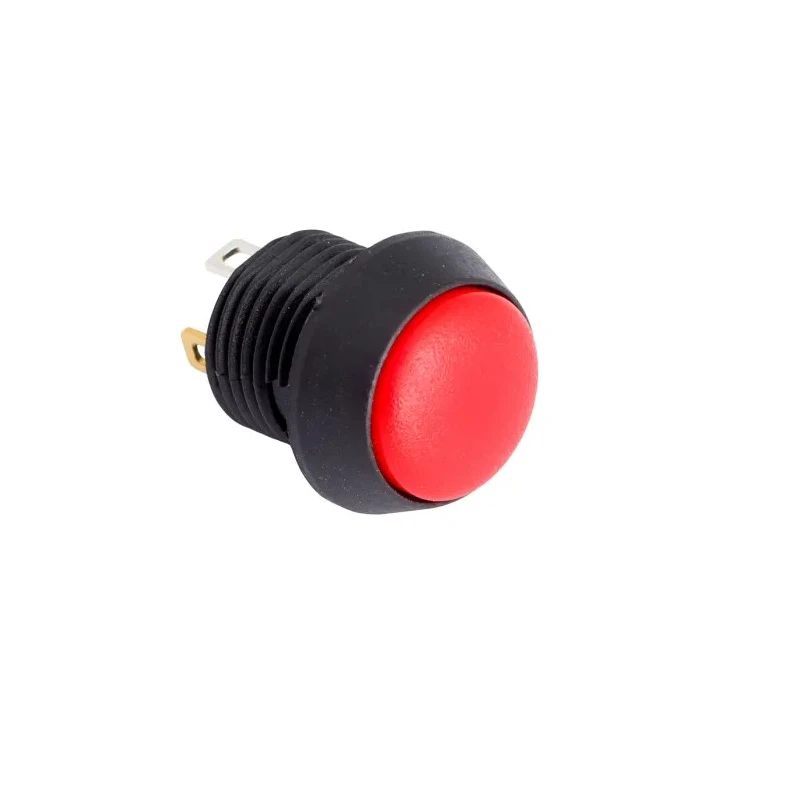

EOZ FL Series Illuminated Momentary Push Button Switch Panel Mount 12 mm Cutout SPST Red LED IP67 2.5 kV ac FL12LR5
Specifications
| Country of Origin | France |
|---|---|
| Brand | EOZ |
| Operating Temperature Range | -40 to +85°C |
| Model | FL12LR5 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Panel Thickness | 1 mm to 6 mm |
| Ingress Protection | IP67 |
| Series | FL |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | Momentary |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 12 mm |
| Terminal type | Plug-In |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Switch Operation | Momentary |
| Actuator Colour | Red |
| Actuator Style | Cap |
| Switch Contact Current | 65mA |
| Contact AC Voltage | 2.5kV ac |
| Contact terminals | Gold plated nickel |
| LED terminals | Silver plated nickel |
Key Features
- The switch features a red actuator colour with full face illumination.
- It operates momentarily with a SPST contact configuration and plug-in terminal type.
- The LED is red, powered by pre-installed 5 V LEDs within the cap which illuminates fully.
- The device is IP67 rated, providing ingress protection against dust and water immersion.
- Operating temperature ranges from -40°C to +85°C ensuring reliability in harsh conditions.
- The switch supports contact AC voltage up to 2.5 kV and a switch contact current up to 65 mA.
- The panel thickness supported ranges from 1 mm to 6 mm for versatile installation.
- Gold plated nickel contact terminals and silver plated nickel LED terminals enhance corrosion resistance and electrical performance.
Product Description
EOZ FL12LR5 Illuminated Push Button Switch is a momentary type panel-mounted switch with a 12 mm cutout, designed for industrial, electrical, and automation applications. Featuring a red illuminated actuator cap, the entire face lights up from integrated 5 V red LEDs ensuring clear visibility.
This switch belongs to EOZ's FL series and is renowned for its compact size and robust design. The SPST (Single Pole Single Throw) contact configuration provides simple ON/OFF switching with reliable contact integrity.
The switch is rated IP67, offering complete protection against dust ingress and water immersion, making it suitable for demanding environments including manufacturing, HVAC control panels, commercial electrical installations, and laboratory instrumentation.
The operating temperature range spans from -40°C to +85°C, ensuring stable operation in extreme conditions. The device accepts panel thicknesses from 1 mm to 6 mm, fitting most industrial control panels.
The contact terminals are gold plated nickel, while the LED terminals are silver plated nickel, providing excellent corrosion resistance and long service life in harsh conditions. The actuator colour is red, with momentary switch operation for precise control actions.
Terminal type is plug-in (2.8 x 0.5 mm), facilitating easy installation and maintenance. Contact AC voltage withstands up to 2.5 kV ensuring durability under electrical stress. Switch contact current rating is 65 mA suitable for low power signaling circuits.
Ingress protection IP67 guarantees resistance to dust and temporary submersion.
These features make the EOZ FL12LR5 an ideal choice for industrial control panels, automation equipment, and other electrical systems demanding durable, vandal resistant, and illuminated push button switches.
The product is manufactured in France and complies with RoHS standards, guaranteeing environmental safety. Explore more Push Button Switches and electrical components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating temperature range for the EOZ FL12LR5 is from -40°C to +85°C, ensuring reliable performance in extreme conditions.
This model features a Single Pole Single Throw (SPST) contact configuration, allowing for simple ON/OFF switching.
The switch is rated IP67, providing complete protection against dust ingress and temporary immersion in water.
The EOZ FL12LR5 requires a panel cutout size of 12 mm for proper installation.
The switch can withstand a maximum contact AC voltage of 2.5 kV.
The switch contact current rating is 65 mA, suitable for low power signaling circuits.
This unit supports panel thicknesses ranging from 1 mm to 6 mm, allowing for versatile installation options.
The EOZ FL12LR5 uses plug-in terminals, specifically 2.8 x 0.5 mm, facilitating easy installation and maintenance.
The contact terminals are made of gold plated nickel, while the LED terminals are silver plated nickel, enhancing corrosion resistance and electrical performance.
The actuator color is red, and it features a cap style for the actuator.
Yes, the switch complies with RoHS standards, ensuring environmental safety.
This switch is suitable for industrial control panels, automation equipment, and other electrical systems that require illuminated push button switches.
