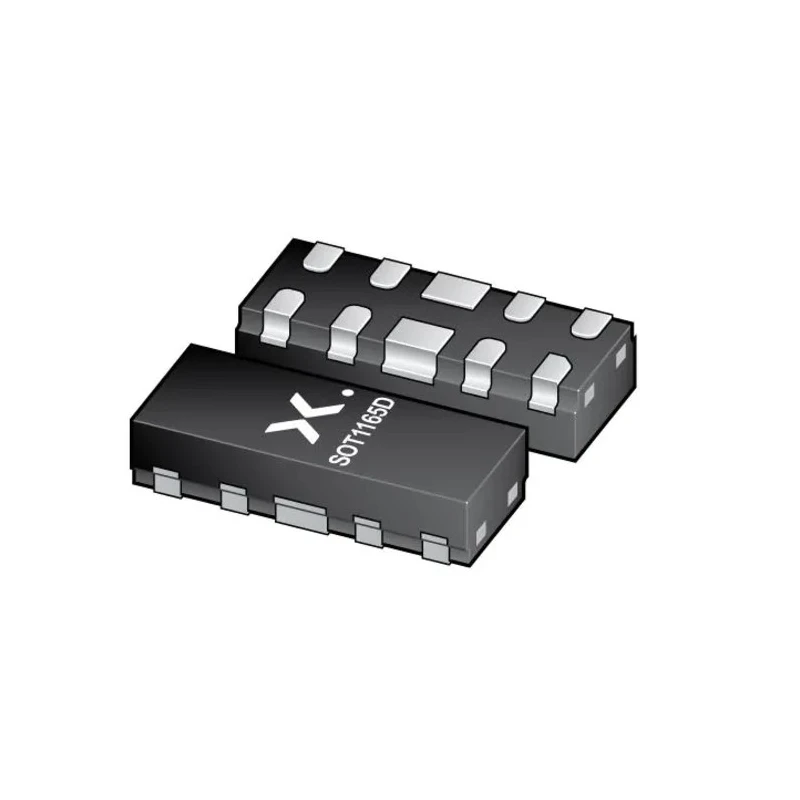

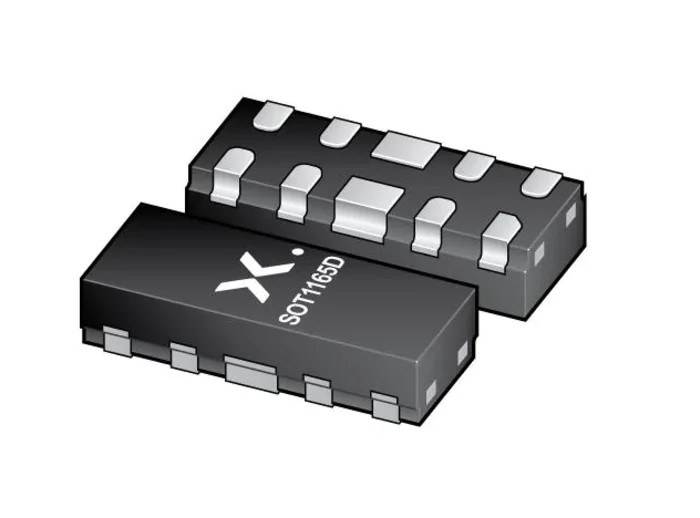

Nexperia Uni-Directional ESD Protection Diode PESD4USB3U-TTS 6V Breakdown Voltage 7A Peak Pulse Current DFN2510D Package

Nexperia PESD4USB3U-TTS uni-directional ESD Protection Diode is designed to safeguard high-speed digital interfaces in industrial, automotive, and consumer electronics applications. It offers comprehensive system-level protection for USB 2.0, SuperSpeed USB 3.2 at 10 Gbps, HDMI 2.0, DisplayPort, eSATA, and Low Voltage Differential Signalling (LVDS) lines.

This diode features a minimum breakdown voltage of 6 V and a maximum reverse stand-off voltage of 3.3 V, with a peak pulse current rating of 7 A, ensuring robust suppression of transient voltage spikes due to electrostatic discharge (ESD). The clamping voltage is maintained at 3.5 V to shield sensitive components effectively.

Packaged in a compact DFN2510D surface mount package (2.5 mm length, 0.75 mm width, and 1 mm height), the device delivers ultra-low line capacitance of 0.5 pF per channel. This ensures minimal signal distortion, benefiting high-speed data applications.

Additional attributes include matched 0.5 mm trace spacing and side-wettable flanks (SWF), facilitating enhanced PCB manufacturing and assembly processes. Designed for harsh environments, it supports operating temperatures from -65°C to 150°C and meets automotive standard AEC-Q101 certification. Compliance with IEC 61000-4-2 guarantees excellent ESD performance.

Typical applications include infotainment systems employing USB 2.0 and SuperSpeed USB 3.2, automotive A/V monitors, displays and cameras, as well as Serializer/Deserializer (SerDes) technologies such as GMSL and FPD-Link. Its design provides 'pass-through' signal routing enabling seamless integration.

Provides system-level ESD protection for SuperSpeed USB 3.2, HDMI, DisplayPort, eSATA, and LVDS interfaces. Uni-directional diode with 6 V minimum breakdown voltage. Maximum peak pulse current of 7 A for robust transient suppression.

Compact DFN2510D surface mount package with 2.5 mm length, 0.75 mm width, and 1 mm height. Low line capacitance of 0.5 pF per channel to preserve signal integrity. Side-wettable flanks and 0.5 mm trace spacing for easy PCB integration.

Automotive AEC-Q101 qualification and wide operating temperature range (-65°C to 150°C). Meets IEC 61000-4-2 ESD standards. Ideal for infotainment, automotive displays, cameras, and serial link technologies. Explore more Nexperia semiconductor components and protect your electronic designs with advanced ESD protection solutions from EnvMart.
