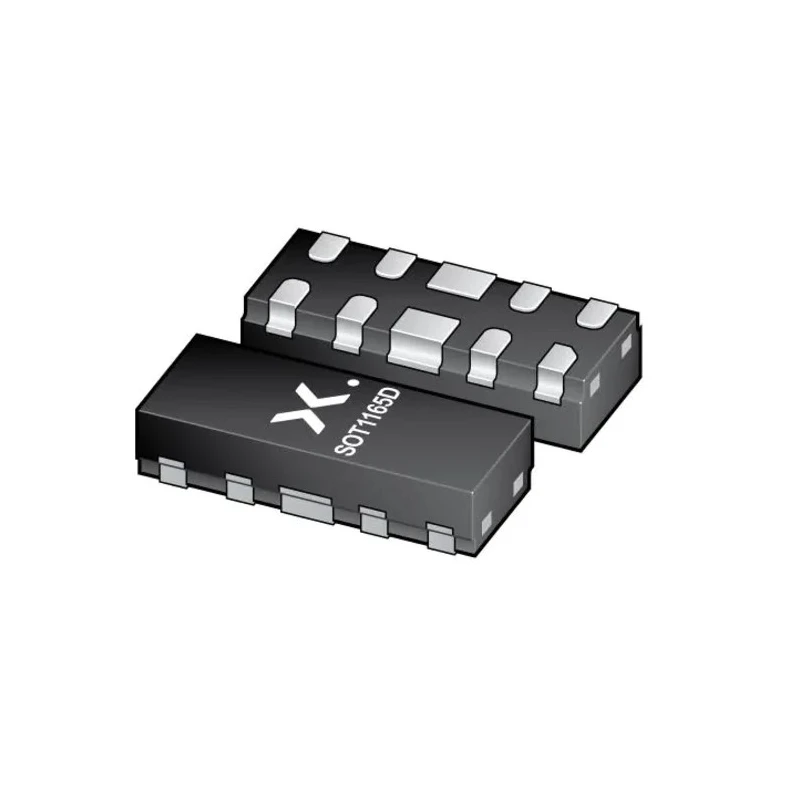

Nexperia Bi-Directional ESD Protection Diode 6V Breakdown, 7A Peak Pulse Current, Surface Mount DFN2510D PESD4USB5B-TTS

Nexperia PESD4USB5B-TTS bi-directional ESD protection diode in surface mount DFN2510D package provides superior electrostatic discharge protection for sensitive high-speed interfaces.

Designed specifically for industrial, automotive, and consumer electronics applications, this device safeguards SuperSpeed USB 3.2 at 10 Gbps, HDMI 2.0, DisplayPort, eSATA, Low Voltage Differential Signalling (LVDS), and Gigabit Multimedia Serial Link (GMSL) Serializer/Deserializer (SerDes) lines from damaging ESD events.

The device features a minimum breakdown voltage of 6V and a maximum reverse stand-off voltage of 5V, with a maximum peak pulse current of 7A, enabling it to clamp transient surges effectively while maintaining signal integrity.

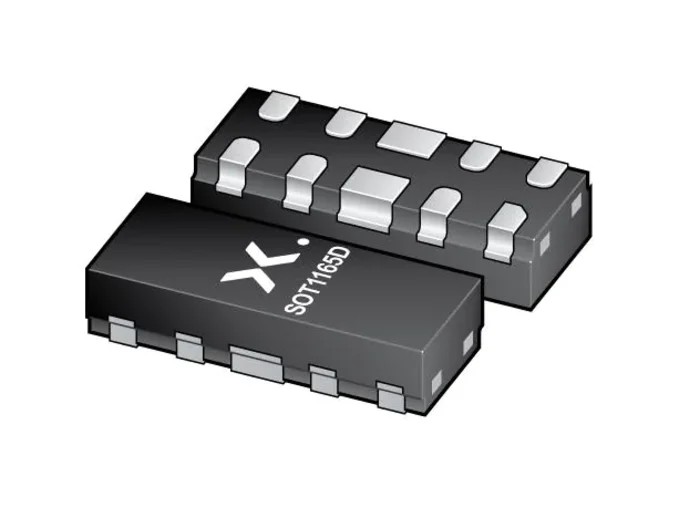

Its compact DFN2510D package (2.5 mm length × 0.75 mm width × 1 mm height) and surface mount technology facilitate integration into space-constrained printed circuit boards with design-friendly pass-through routing.

With a clamping voltage of 5.5V and an exceptionally low maximum reverse leakage current of 100nA, the diode offers efficient system-level ESD protection with minimal power dissipation.

Operating temperature range spans from -65°C to 150°C, accommodating demanding industrial and automotive environments. The product complies with the automotive standard AEC-Q101 and international standard IEC 61000-4-2, ensuring high reliability and ruggedness.

Matched 0.5 mm trace spacing and side-wettable flanks enhance PCB assembly quality, while its bidirectional functionality covers typical ESD scenarios in USB and audio-visual infotainment applications.

This ESD protection diode is suitable for use in infotainment systems, automotive A/V monitors, displays, cameras, and SerDes interfaces like GMSL, FPD-Link, and LVDS, making it ideal for high-speed data communication protection across multiple industries.

Minimum breakdown voltage of 6V ensures robust protection. Maximum peak pulse current rating of 7A supports transient surges. Compact DFN2510D package suitable for space-constrained PCB designs. Surface mount mount type enables automated assembly.

Offers low clamping voltage of 5.5V for efficient ESD suppression. Operating temperature range from -65°C to 150°C for varied environments. Meets automotive AEC-Q101 and IEC 61000-4-2 standards for reliability. Extremely low maximum reverse leakage current of 100nA reduces power loss.

Ideal for protecting USB 2.0, SuperSpeed USB 3.2, HDMI, DisplayPort, eSATA, and LVDS interfaces. Matched 0.5 mm trace spacing and side-wettable flanks optimize PCB layout. Find more products and detailed specifications within the ESD Protection Diode category at EnvMart for your electronic component needs.
