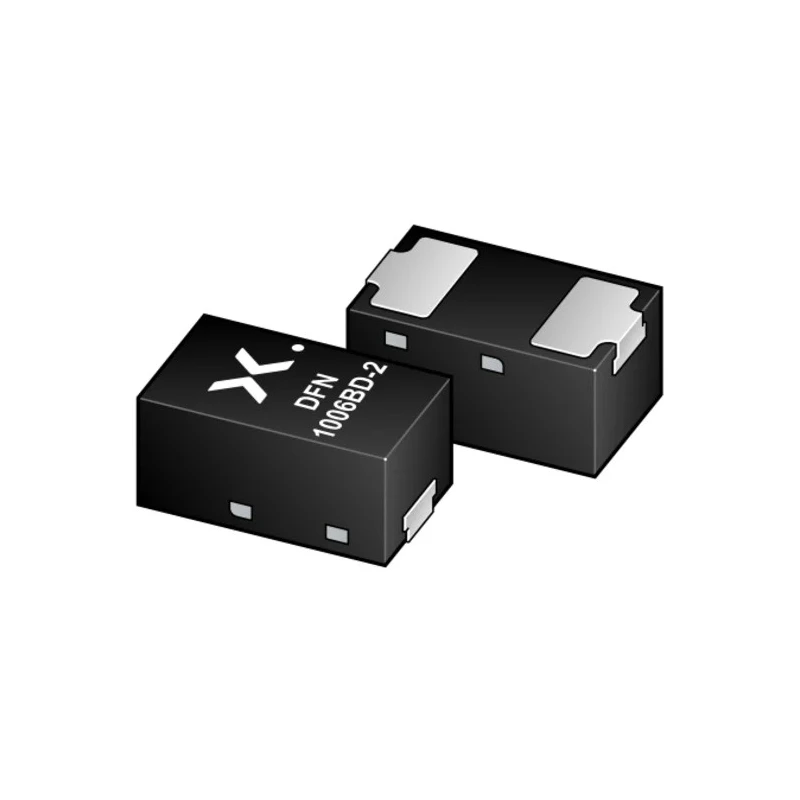

Nexperia Bi-Directional ESD Protection Diode 2-Pin DFN1006BD-2 24V 2.3A PESD1ETH1GLS-QYL
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | PESD1ETH1GLS-QYL |
| Width | 0.6mm |
| Mount Type | Surface |
| Series | PESD1ETH1GLS-Q |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Interfaces | Ethernet |
| Standards/Approvals | AEC-Q101 |
| Pin Count | 2 |
| Clamping Voltage VC | 3.3V |
| Direction Type | Bi-Directional |
| Maximum Reverse Stand-off Voltage Vwm | 24V |
| Maximum Peak Pulse Current Ippm | 2.3A |
| Maximum Reverse Leakage Current | 100nA |
Key Features
- Provides bi-directional ESD protection for automotive in-vehicle network bus lines.
- Compact surface-mount DFN1006BD-2 package with dimensions 1mm x 0.6mm x 0.47mm.
- Maximum reverse stand-off voltage of 24 volts with peak pulse current rating of 2.3 amps.
- Low clamping voltage of 3.3 volts ensuring fast transient suppression.
- Wide operating temperature range from -55°C to 150°C suitable for automotive applications.
- Compliant with AEC-Q101 automotive standards but not designed as automotive qualified device.
- Low capacitance less than 1.8 pF for high-speed data line protection.
- Protects against ESD up to 30 kV according to IEC 61000-4-2 and ISO10605 standards.
Product Description
Nexperia PESD1ETH1GLS-QYL is a bi-directional ESD Protection Diode tailored for protecting automotive in-vehicle network bus lines, particularly those conforming to IEEE 100BASE-T1 and 1000BASE-T1 Ethernet standards. Encapsulated in a compact 2-pin DFN1006BD-2 surface-mount package measuring 1mm length, 0.6mm width, and 0.47mm height, it ensures reliable protection without compromising PCB space.
This device offers robust ESD protection with a maximum reverse stand-off voltage of 24V and supports transient peak pulse currents up to 2.3A. The low clamping voltage of 3.3V enables fast suppression of voltage spikes, protecting sensitive components effectively.
Operating reliably in a broad temperature range from -55°C to 150°C, the diode is compliant with the automotive AEC-Q101 standard though it is not specifically designated as automotive grade. Featuring low capacitance under 1.8 pF, it is particularly suited for high-speed data line protection where signal integrity is critical.
The PESD1ETH1GLS-QYL is capable of handling ESD events up to 30 kV as per IEC 61000-4-2 and ISO10605 certifications, withstanding 1000 contact discharges at 15 kV to meet OPEN Alliance requirements, ensuring longevity in harsh automotive environments.
This semiconductor diode finds applications in automotive electronics, industrial controls, and communication equipment requiring robust transient voltage suppression. It is an ideal choice for designers prioritizing space-saving, high-performance ESD protection solutions in Ethernet and LVDS interfaces.
Provides bi-directional ESD protection for automotive in-vehicle network bus lines. Compact surface-mount DFN1006BD-2 package with dimensions 1mm x 0.6mm x 0.47mm. Maximum reverse stand-off voltage of 24 volts with peak pulse current rating of 2.3 amps.
Low clamping voltage of 3.3 volts ensuring fast transient suppression. Wide operating temperature range from -55°C to 150°C suitable for automotive applications. Compliant with AEC-Q101 automotive standards but not designed as automotive qualified device.
Low capacitance less than 1.8 pF for high-speed data line protection. Protects against ESD up to 30 kV according to IEC 61000-4-2 and ISO10605 standards. Supports IEEE 100BASE-T1 and 1000BASE-T1 Ethernet automotive networks.
Reliable in harsh environments with 1000 contact discharges at 15 kV per OPEN Alliance specification. Explore more high-quality semiconductor and ESD protection components within EnvMart's extensive industrial electronics catalogue.
