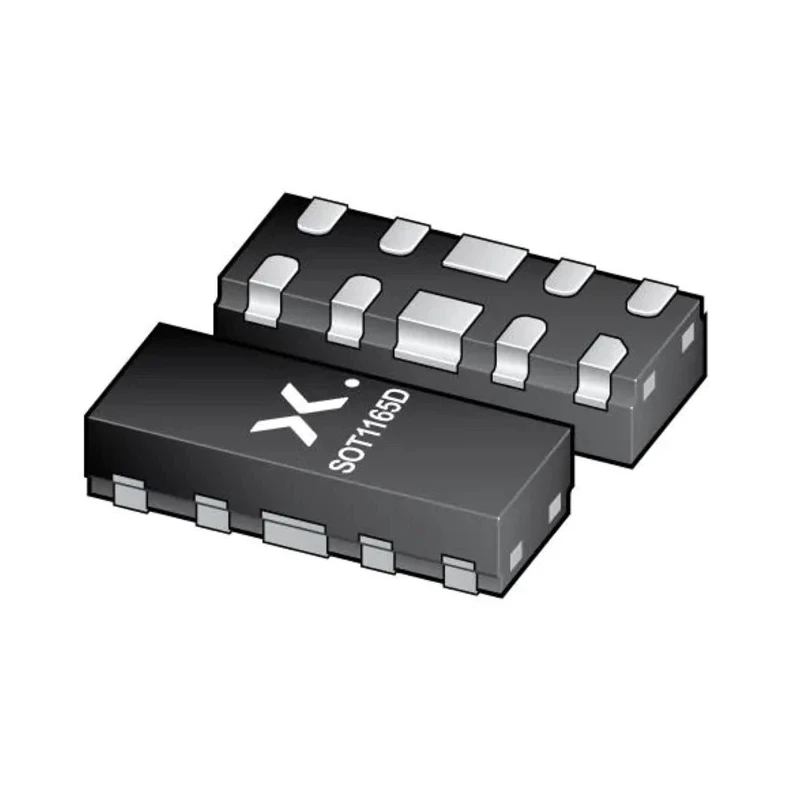

Nexperia Bi-Directional ESD Protection for High Speed Interface, 10-Pin DFN2510D PESD4USB3B-TTSX
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.75mm |
| Length | 2.5mm |
| Model | PESD4USB3B-TTSX |
| Width | 1mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN2510D |
| Minimum Operating Temperature | -55°C |
| Interfaces | USB 2 |
| Standards/Approvals | ISO10605, IEC61000-4-2 |
| Pin Count | 10 |
| Clamping Voltage VC | 5.5V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 6V |
| Maximum Reverse Stand-off Voltage Vwm | 3.3V |
| Maximum Peak Pulse Current Ippm | 7A |
| Maximum Reverse Leakage Current | 100nA |
Key Features
- Designed for high-speed interfaces including SuperSpeed USB 3.2 at 10 Gbps and HDMI.
- Offers ElectroStatic Discharge (ESD) protection up to ±15 kV.
- Extremely low line capacitance of 0.5 pF per channel minimizes signal distortion.
- Features matched 0.5 mm trace spacing and side-wettable flanks for ease of PCB assembly.
- Complies with automotive standard AEC-Q101 ensuring high reliability.
- Operating temperature range from -55°C to 150°C allows for use in harsh environments.
- Supports infotainment and automotive audiovisual applications effectively.
- Compact dimensions of 2.5 mm length, 1 mm width, and 0.75 mm height enable space-saving design.
Product Description
Nexperia PESD4USB3B-TTSX Bi-Directional ESD Protection Device is engineered for reliable protection of high-speed interfaces such as SuperSpeed USB 3.2 at 10 Gbps, HDMI, Display Port, eSATA, LVDS, and GMSL Serializer/Deserializer (SerDes) against ElectroStatic Discharge (ESD) events.
This component features a surface mount 10-Pin DFN2510D package with compact dimensions of 2.5 mm length, 1 mm width, and 0.75 mm height, optimized for high-density PCB layouts. The device’s line capacitance is only 0.5 pF per channel, ensuring minimal signal degradation and high data integrity for fast digital communication.
With a minimum breakdown voltage (Vbr) of 6 V, a maximum reverse stand-off voltage (Vwm) of 3.3 V, and a clamping voltage (VC) of 5.5 V, the device can effectively clamp transient voltage spikes. The maximum peak pulse current (Ippm) rating of 7 A provides robust protection against ESD pulses up to ±15 kV as per IEC61000-4-2 and ISO10605 standards.
The Nexperia PESD4USB3B-TTSX supports automotive-grade applications conforming to AEC-Q101 standards and operates reliably from -55°C to 150°C, making it suitable for infotainment systems, automotive displays, cameras, and various industrial and commercial interfaces.
Bi-Directional ESD protection for high-speed data lines. Low line capacitance reduces signal interference. Designed for compact, surface mount PCB layout. Common automotive standard AEC-Q101 compliant. High reliability under extended temperature ranges.
Ideal for USB 2.0, USB 3.2, HDMI 2.0, HDBaseT, and similar signal lines.
This advanced ESD Protection Diode enhances system protection while maintaining signal integrity in demanding industrial, automotive, and consumer electronics applications. For detailed technical documents including datasheets, PCB footprints, and design guidelines, Nexperia resources should be consulted.
Explore Nexperia’s comprehensive range of semiconductor components at EnvMart for diverse industrial and electronic applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for the PESD4USB3B-TTSX is 150°C.
The clamping voltage (VC) for the PESD4USB3B-TTSX is 5.5V.
The minimum breakdown voltage (Vbr) of this diode is 6V.
The PESD4USB3B-TTSX complies with ISO10605 and IEC61000-4-2 standards.
The line capacitance per channel is 0.5 pF, which minimizes signal distortion.
This model comes in a 10-Pin DFN2510D package.
The maximum peak pulse current (Ippm) rating for this device is 7A.
The minimum operating temperature for the PESD4USB3B-TTSX is -55°C.
This ESD protection device supports USB 2.0, USB 3.2, HDMI 2.0, and similar signal lines.
The dimensions are 2.5 mm in length, 1 mm in width, and 0.75 mm in height.
Yes, it complies with the automotive standard AEC-Q101, making it suitable for automotive applications.
The maximum reverse leakage current for the PESD4USB3B-TTSX is 100nA.
