RS PRO Illuminated Miniature Push Button Switch, Momentary, Panel Mount, 13.6 mm Cutout, SPST, Yellow LED, IP67 891-9842

RS PRO 891-9842 illuminated miniature push button switch is a momentary, panel mount electrical component designed for industrial, automation, and control applications. This high-quality switch features a 13.6 mm panel cutout diameter and integrates a yellow LED for illumination to provide clear operational status indication.

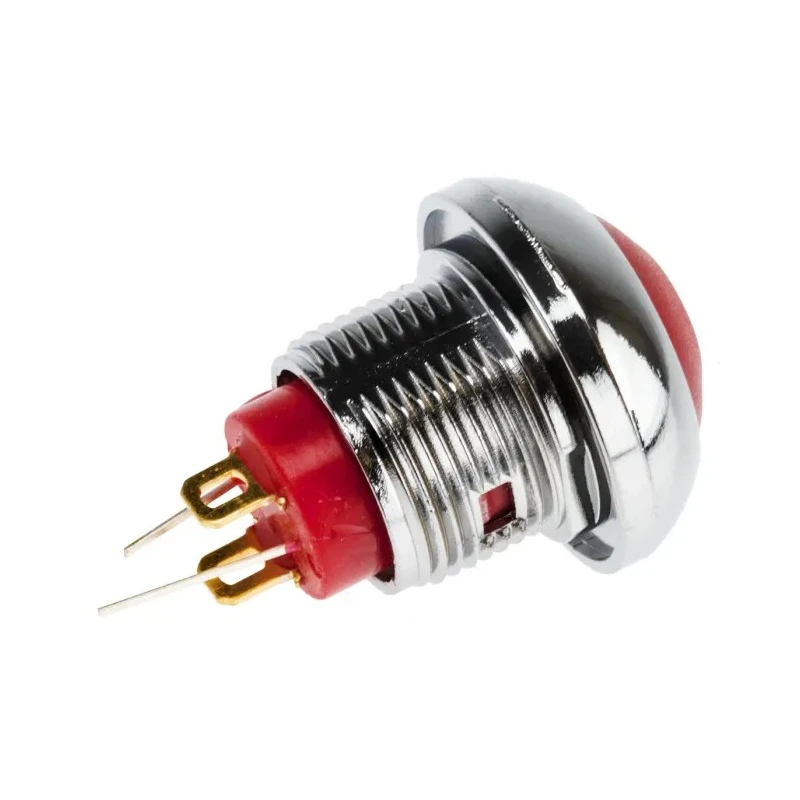

Manufactured to meet IEC 60629 2001 standards, it offers IP67 rating for water and dust ingress protection on the actuator side, ensuring reliable performance in harsh environments. The switch utilizes a single pole, single throw (SPST) contact configuration with solder lug terminals plated with gold over silver for optimal electrical connection and corrosion resistance.

It supports a contact voltage rating of up to 250 V AC and DC with a maximum contact current of 200mA. The switch’s operating force ranges from 2 to 5 Newtons, allowing ergonomic and consistent actuation. The device's operating temperature spectrum is from -30°C to 85°C, suitable for a broad variety of industrial and automation environments.

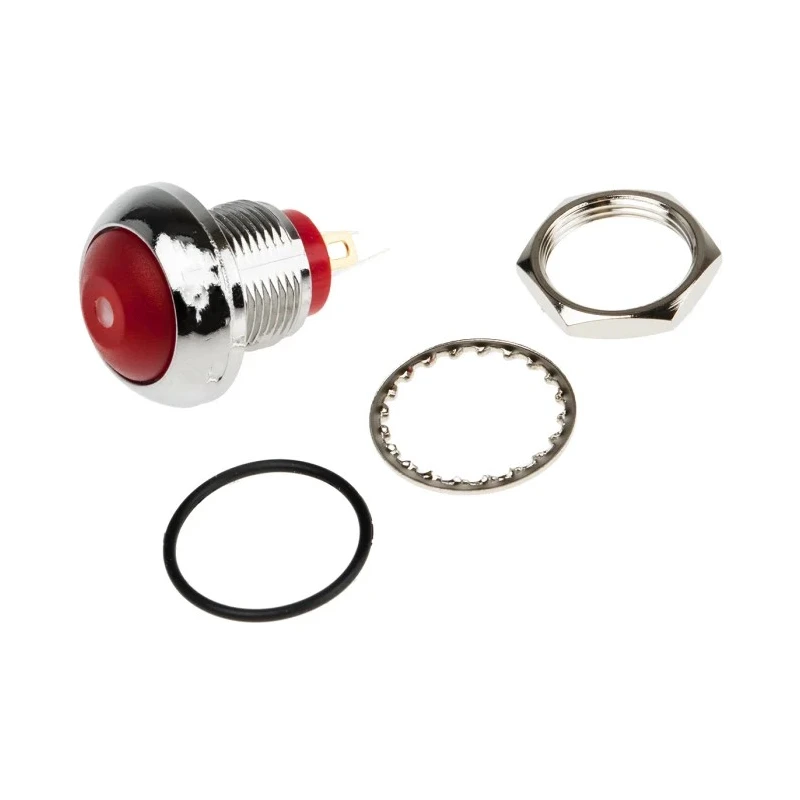

Designed with mechanical longevity in mind, this switch guarantees a minimum of 1,000,000 mechanical actuations without load, and an electrical life of 500,000 cycles at full load, making it ideal for frequent switching applications. The product is supplied with an M12 nut, locking washer, and splash proof O-ring to facilitate easy and secure panel mounting.

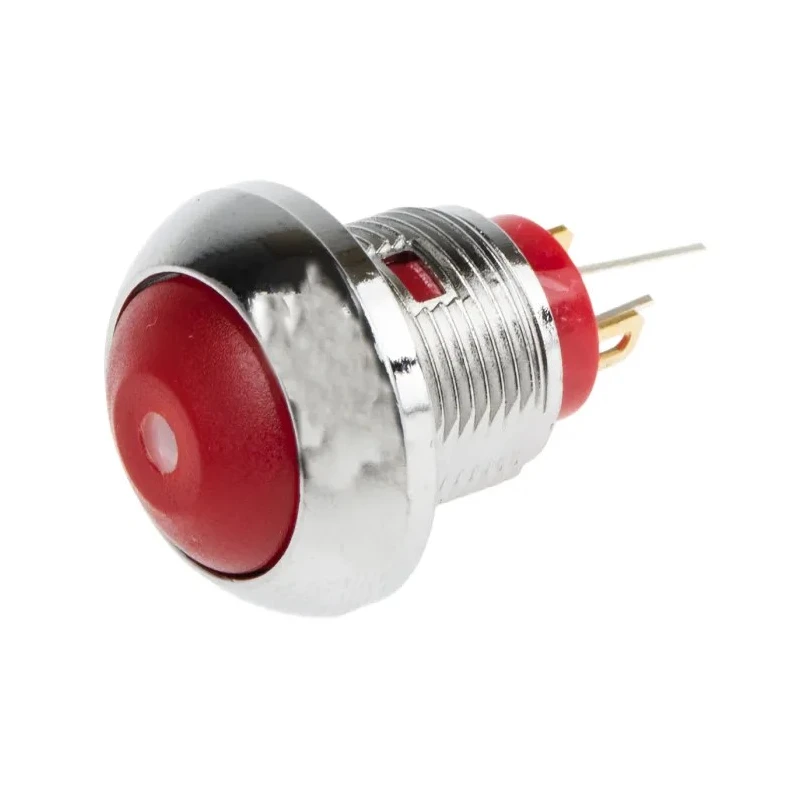

The switch includes a round red actuator with water clear lens for enhanced visibility. Gold over silver plated contact terminals provide excellent electrical performance and durability. It features a wide temperature and environmental operating range with IP67 sealing.

Panel cutout of 13.6 mm ensures compatibility with standard mounting setups. Suitable for use in industrial automation, manufacturing control panels, electrical equipment, and harsh environment applications.

This miniature push button switch offers an industrial-grade solution combining durability, precision, and ease of installation. It is suitable for use in electrical, automation, manufacturing, and control system applications requiring reliable momentary push button operation with illumination and environmental sealing.
