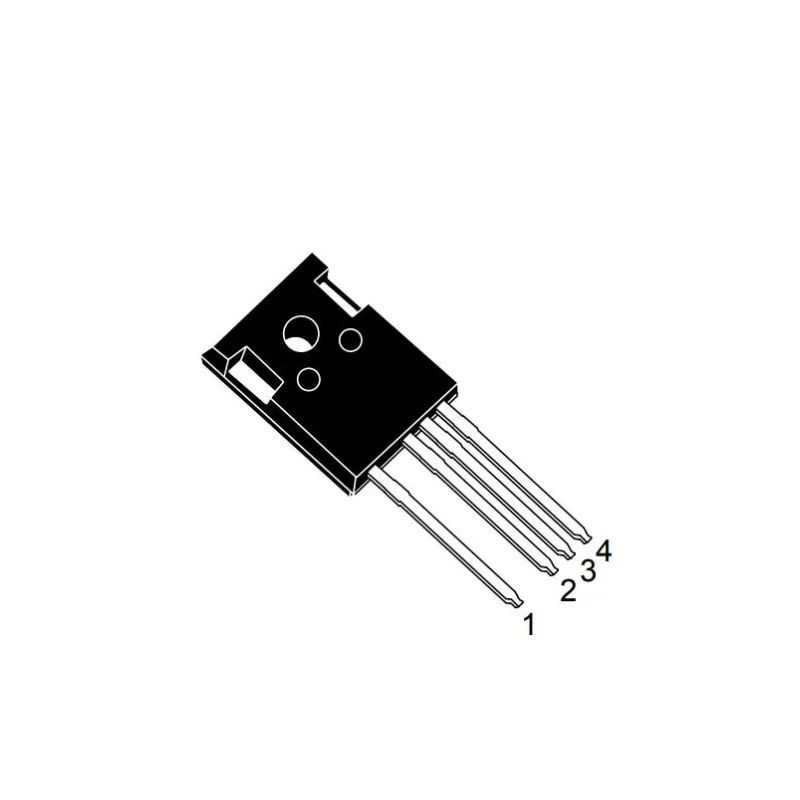

STMicroelectronics Power MOSFET STW75N65DM6-4 N-Channel 30 V 55 A TO-247 4-Pin Enhancement Mode
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 5.1mm |
| Length | 40.92mm |
| Model | STW75N65DM6-4 |
| Width | 15.8mm |
| Mount Type | Through Hole |
| Series | STW |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-247 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | UL |
| Pin Count | 4 |
| Automotive Standard | AEC-Q101 |
| Channel Type | N |
| Maximum Continuous Drain Current Id | 55A |
| Maximum Drain Source Voltage Vds | 30V |
| Maximum Drain Source Resistance Rds | 45mΩ |
| Channel Mode | Enhancement |
| Maximum Power Dissipation Pd | 480W |
| Typical Gate Charge Qg @ Vgs | 118nC |
| Maximum Gate Source Voltage Vgs | 20V |
| Forward Voltage Vf | 1.5V |
Key Features
- The device supports a maximum drain-source voltage of 30 V in a TO-247 4-pin package.
- It features low gate charge and low RDS(on) resistance for optimized performance.
- The MOSFET operates in enhancement mode and is suitable for through-hole mounting.
- Maximum power dissipation is rated at 480 W, allowing high reliability under demanding conditions.
- The high dv/dt ruggedness and Zener protection make it ideal for industrial and automotive applications.
- Temperature range is from -55°C minimum to 150°C maximum operating temperature.
- Typical gate charge at Vgs is 118 nC, enabling fast switching.
- Complies with UL standards and automotive AEC-Q101 certification.
Product Description
STMicroelectronics STW75N65DM6-4 is a high-performance N-channel Power MOSFET in a durable TO-247 4-pin package designed for through-hole mounting. It supports a maximum continuous drain current of 55 A and a drain-source voltage rating of 30 V, making it suitable for demanding power applications.
This MOSFET is optimized for high-efficiency bridge topologies and zero voltage switching (ZVS) phase-shift converters, delivering extremely low RDS(on) resistance and reduced switching losses due to its low gate charge and input capacitance.
The device belongs to the MDmesh DM6 series, which incorporates fast recovery body diodes and exceptional avalanche ruggedness to ensure durability in industrial, automotive, and power management environments.
Operating temperature ranges from -55°C to 150°C, ensuring reliability across harsh conditions. The package dimensions are 15.8 mm width, 5.1 mm height, and 40.92 mm length. The MOSFET features low RDS(on) resistance at 45 mΩ, reducing conduction losses.
Typical gate charge at Vgs is 118 nC, enabling efficient switching performance. Maximum power dissipation rating of 480 W supports prolonged heavy loads. The device is Zener-protected and 100% avalanche tested for ruggedness against voltage spikes.
Compliance with UL and automotive AEC-Q101 standards guarantees quality and safety. Compatibility with various industrial applications including power electronics, motor drives, and energy management systems.
STMicroelectronics products are ideal for semiconductor discrete component needs in electronics manufacturing, industrial power conversion, and automotive sectors requiring robust and efficient power devices.
Explore the Electronics & Electricals section at EnvMart for a comprehensive range of Power MOSFETs and related semiconductor components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous drain current for this model is 55 A.
It supports a maximum drain-source voltage of 30 V.
The package dimensions are 15.8 mm in width, 5.1 mm in height, and 40.92 mm in length.
The maximum drain-source resistance (RDS(on)) is rated at 45 mΩ.
The typical gate charge at Vgs is 118 nC.
The operating temperature range is from -55°C to 150°C.
It supports through-hole mounting.
The maximum power dissipation is rated at 480 W.
Yes, it complies with UL standards and is certified under automotive AEC-Q101.
It is suitable for industrial and automotive applications, including power electronics and motor drives.
This model features an N-channel configuration.
It belongs to the MDmesh DM6 series, which incorporates fast recovery body diodes.
