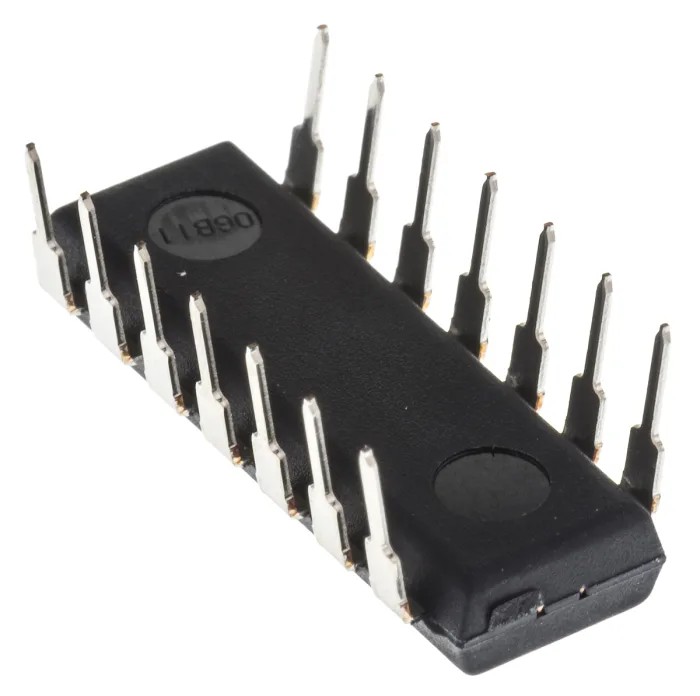

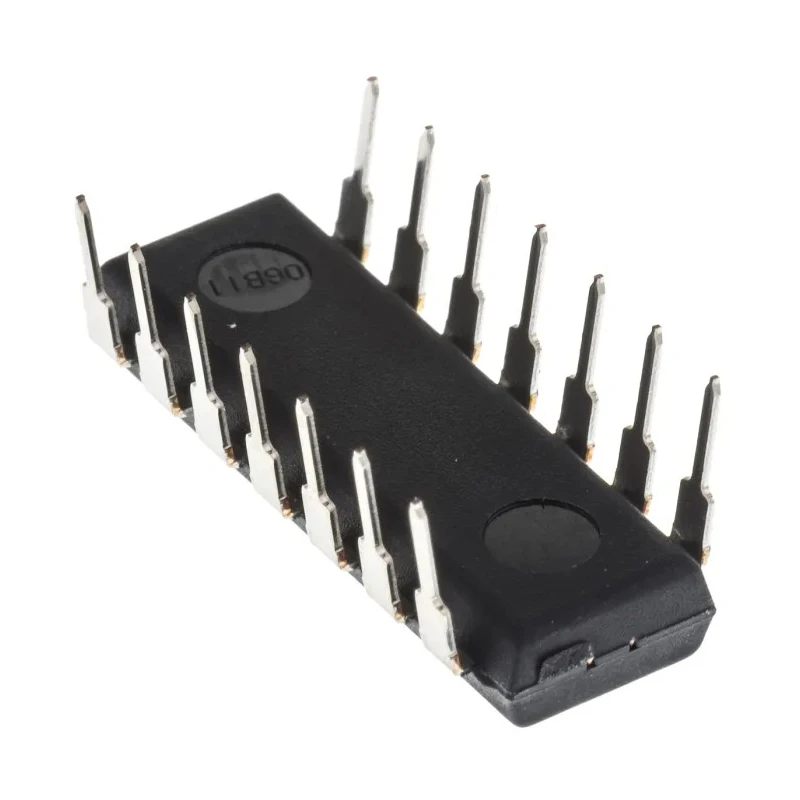

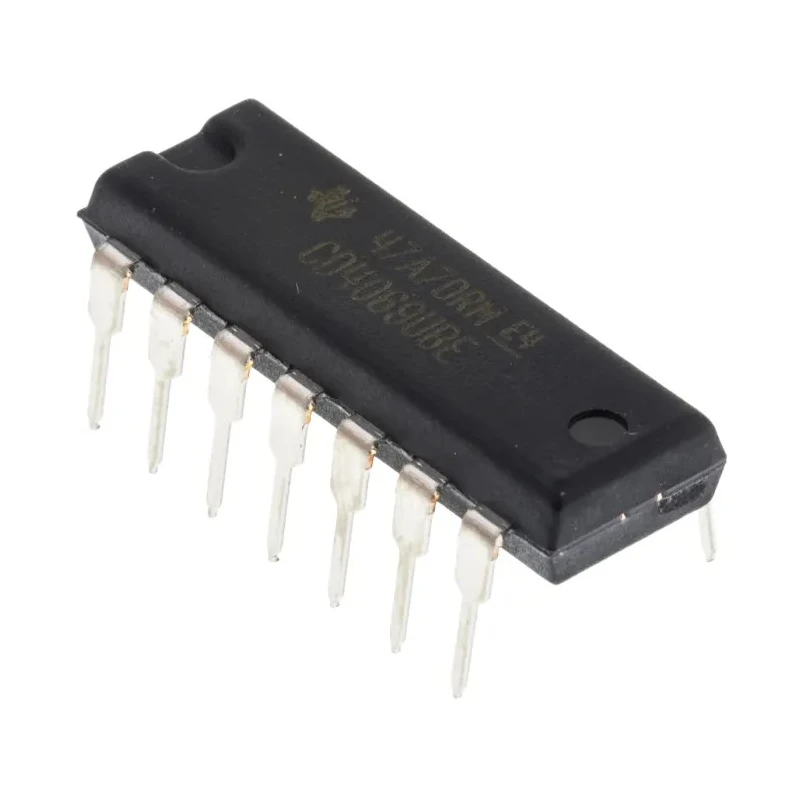

Texas Instruments CMOS Logic Inverter 6 Elements 14-Pin PDIP 3-18V CD4069UBE
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.3mm |
| Model | CD4069UBE |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Output type | TTL |
| Series | CD4069UB |
| Input Type | CMOS |
| Maximum Operating Temperature | 125°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -55°C |
| Pin Count | 14 |
| Number of Elements per Chip | 6 |
| Maximum Supply Voltage | 18V |
| Logic Family | 4000 |
| Logic Function | Inverter |
| Minimum Supply Voltage | 3V |
| Maximum High Level Output Current | -4.2mA |
| Maximum Propagation Delay Time @ CL | 110ns |
| Maximum Low Level Output Current | 4.2mA |
| Wide operating voltage range | 3 to 18V |
Key Features
- The device contains 6 inverter elements in a single chip.
- Utilizes CMOS input type and TTL output type for logic signals.
- Operating voltage range from 3V minimum to 18V maximum.
- Maximum propagation delay time is 110ns ensuring efficient switching.
- Operating temperature range spans from -55°C to 125°C for reliability.
- Package type is PDIP with 14 pins for easy through-hole mounting.
- Part of the 4000 logic family series by Texas Instruments.
- Designed without Schmitt Trigger input, suitable for standard logic applications.
Product Description
Texas Instruments CD4069UBE is a CMOS logic inverter IC designed for electronic circuit applications requiring stable and efficient signal inversion. This product consists of 6 independent inverter elements integrated into a compact 14-pin PDIP package, suitable for through-hole mounting on printed circuit boards.
Operating across a wide supply voltage range from 3V to 18V, this inverter ensures compatibility with various power systems. The device outputs TTL-level signals and offers low propagation delay of 110 nanoseconds, making it ideal for timing-critical circuits.
The IC operates reliably across a broad temperature range of -55°C to 125°C, making it suitable for industrial and commercial environment use. Its robust design excludes Schmitt trigger inputs, focusing on standard inverter logic functions within the 4000 series logic family.
Physical dimensions of the package are approximately 19.3 mm in length, 6.35 mm in width, and 4.57 mm in height, providing a compact footprint. Maximum output currents are specified at -4.2 mA for high-level outputs and 4.2 mA for low-level outputs, supporting moderate load drives.
This Texas Instruments CD4069UBE inverter IC is optimized for use in industrial automation, electronic signal processing, power management, and embedded system designs. It is suitable for laboratory, manufacturing, and educational electronics projects.
The device includes 6 inverter elements per chip. CMOS input type and TTL output ensure proper compatibility. Wide supply voltage range from 3V to 18V. Maximum propagation delay time of 110 nanoseconds. Functionally supports logic inversion without Schmitt trigger input.
Package is a through-hole 14-pin PDIP size. Operating temperature from -55°C to 125°C. Part of the 4000 series logic IC family. Dimensions: 19.3 mm length, 6.35 mm width, 4.57 mm height. Output current drive capability of ±4.2 mA.
Explore more semiconductor logic ICs and inverters at EnvMart for industrial and laboratory electronic needs.
Explore more products in our Inverter ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating voltage range of this model is from 3V minimum to 18V maximum.
It contains 6 independent inverter elements integrated into a single chip.
The maximum propagation delay time is 110 nanoseconds, ensuring efficient switching performance.
It provides TTL-level output signals, making it compatible with standard logic applications.
The package dimensions are approximately 19.3 mm in length, 6.35 mm in width, and 4.57 mm in height.
The operating temperature range spans from -55°C to 125°C, suitable for various environments.
It utilizes a CMOS input type for logic signals, ensuring compatibility with various systems.
This model features a through-hole mounting type, designed for easy installation on printed circuit boards.
The maximum high-level output current is specified at -4.2 mA.
Yes, it is part of the 4000 series logic family by Texas Instruments.
The minimum supply voltage is 3V, allowing for compatibility with low-voltage applications.
It is optimized for use in industrial automation, electronic signal processing, power management, and embedded system designs.
