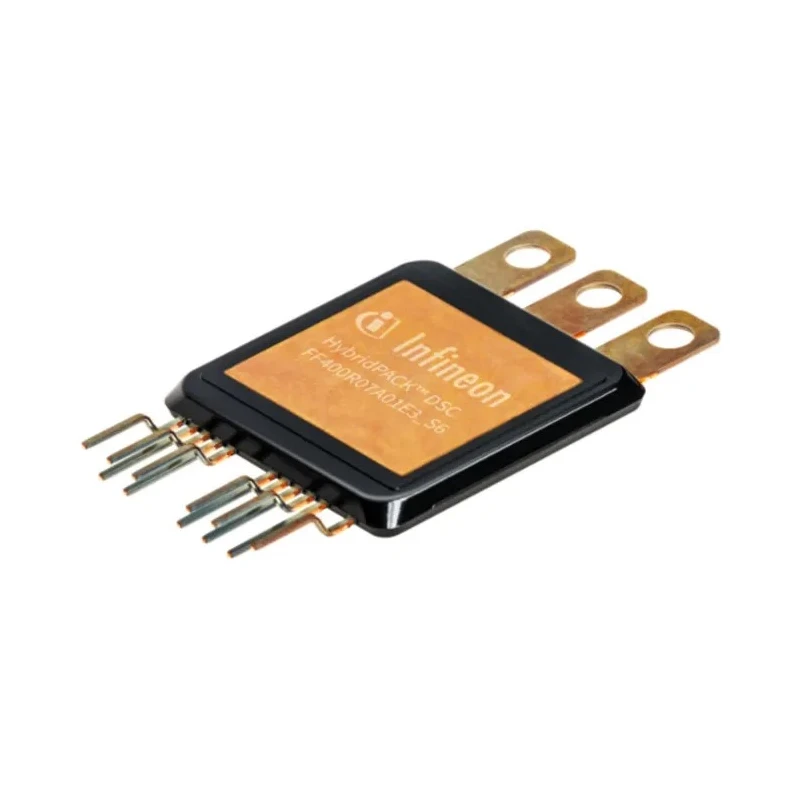

Infineon N-Channel IGBT Module 400 A 700 V 14-Pin MDIP Through Hole FF400R07A01E3S6XKSA2

Infineon FF400R07A01E3S6XKSA2 is a high-performance N-Channel IGBT Module optimized for demanding industrial power applications, supporting up to 400 A continuous collector current and 700 V collector-emitter voltage. It is packaged in a compact 14-pin MDIP form factor designed for through-hole mounting, facilitating easy installation in power electronic systems.

The module features double-sided cooling capabilities to significantly enhance thermal dissipation, allowing for reliable operation at elevated temperatures up to 175°C. Its low stray inductance design ensures efficient switching and power handling with minimal losses. With a maximum power dissipation of 1500 W, it supports high power density applications.

These characteristics make it suitable for use in hybrid and electric vehicle powertrains, renewable energy converters such as solar and wind inverters, industrial automation control systems, electric traction for public transport, and uninterruptible power supplies (UPS) for critical energy storage.

Technical highlights include a dual transistor configuration, 14 pins for robust electrical connectivity, and a compact size of 42.5 mm length, 42 mm width, and 4.7 mm height. The module also operates reliably over a wide temperature range from -40°C up to 175°C, enhancing durability in harsh environments.

Supports a maximum continuous collector current of 400 A. Maximum collector-emitter voltage rating of 700 V for robust power management. Features 2 transistors in a compact 14-pin MDIP package with through-hole mounting.

Optimized for double-sided cooling to enhance thermal performance. Robust thermal management allows operation up to 175°C maximum temperature. Low stray inductance design improves efficiency in power circuits. High power dissipation capability of up to 1500 W.

Compact dimensions measuring approximately 42.5 x 42 x 4.7 mm. Ideal for use in electric vehicles, renewable energy inverters, industrial automation, and UPS systems.

This component is an advanced solution for power electronics requiring high current handling, efficiency, and thermal reliability. It integrates seamlessly into motor drive controllers, inverters, and energy management systems used in contemporary industrial and transportation settings.

Explore the full range of Infineon power modules and components for tailored system performance and reliability on EnvMart.
