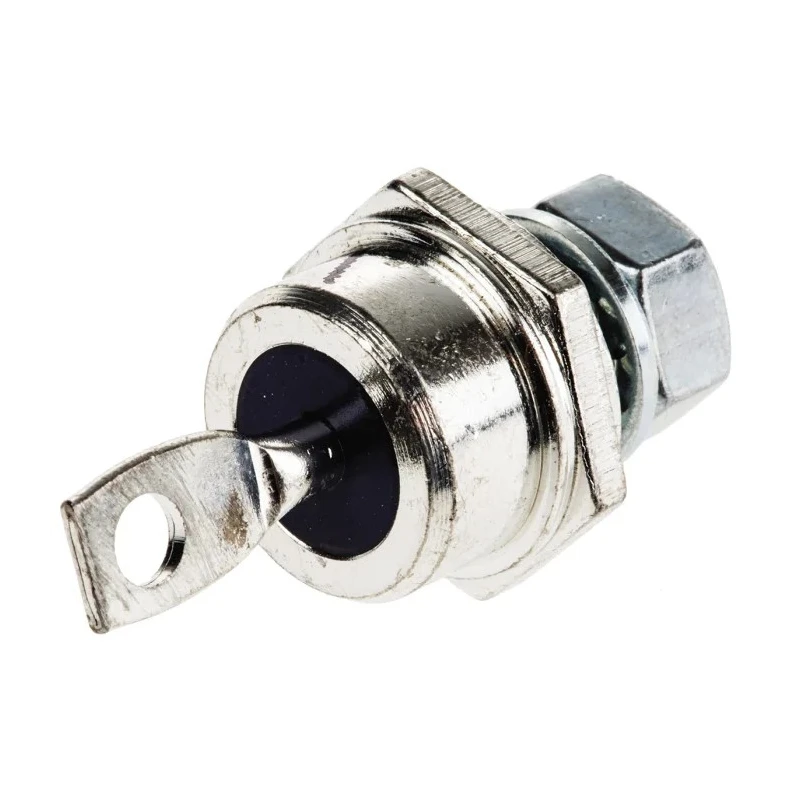

Vishay 1200 V 70 A Standard Recovery Switching Diode 2-Pin DO-203AB VS-70HF120
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 17.4mm |
| Brand | Vishay |
| Height | 22.9mm |
| Length | 20.02mm |
| Model | VS-70HF120 |
| Width | 17.35mm |
| Mount Type | Screw |
| Series | VS-70HF |
| Maximum Operating Temperature | 180°C |
| Package Type | DO-203AB |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 70A |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Diode Configuration | Stud Cathode |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 9mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1.3kA |
| Maximum Forward Voltage Vf | 1.35V |
| Vishay 1 kV 70 A Diode Switching 2-Pin DO-203ABBrand | Vishay |
| IXYS 1200V 49A, Diode, 2-Pin DO-203AB DSI35-12ABrand | IXYS |
| Vishay 1200V 70A, Silicon Junction Diode, 2-Pin DO-5 VS-70HF120Brand | Vishay |
Key Features
- The diode features a stud cathode configuration with 2 pins for secure mounting.
- It has a maximum forward voltage drop of 1.35 V ensuring efficient conduction.
- Built to withstand peak non-repetitive forward surge currents of up to 1.3 kA.
- Operating temperature range spans from -65°C to 180°C for wide environmental tolerance.
- Compact dimensions with length 20.02 mm, width 17.35 mm, height 22.9 mm, and diameter 17.4 mm.
- Designed as a standard recovery rectifier suitable for industrial electronic applications.
- No automotive or special approvals; intended for use in standard industrial, power electronics and switching circuits.
Product Description
Vishay VS-70HF120 is a 1200 V, 70 A Standard Recovery Switching Diode housed in a 2-pin DO-203AB package, designed for high efficiency and reliability in power electronic and switching applications.
This diode utilizes a stud cathode configuration with a screw mounting style ensuring robust mechanical and electrical connections suitable for industrial electronics. It handles a maximum continuous forward current of 70 A and supports peak surge currents of up to 1.3 kA, making it capable of managing substantial transient loads.
The device supports a wide operating temperature range from -65°C to 180°C, enabling performance stability under varied thermal conditions in commercial, industrial, and laboratory environments.
With a maximum forward voltage drop of 1.35 V, VS-70HF120 provides efficient conduction minimizing power loss in rectifier circuits.
The diode's dimensions are compact with a length of 20.02 mm, width of 17.35 mm, height of 22.9 mm, and diameter of 17.4 mm, fitting easily into existing semiconductor designs requiring space optimization.
The diode features a stud cathode with a screw mount for reliable attachment. Maximum continuous current: 70 A for sustained high load applications. Peak reverse voltage of 1200 V to withstand high voltage stress. High surge current tolerance of 1.3 kA for transient event handling.
Wide operating temperature window from -65°C to 180°C. Standard recovery switching type suitable for efficient power management. Compact DO-203AB package dimensions.
This switching diode is well suited for industrial power supplies, electronic switching circuits, automotive electronics (non-certified), and laboratory test equipment requiring a reliable, high-current silicon junction diode.
Choose Vishay VS-70HF120 for a robust, industry-standard switching diode with proven performance and durability. Explore more Vishay semiconductor components and industrial electronic parts on EnvMart.
Explore more products in our Schottky Diode category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Vishay VS-70HF120 is 70 A.
It has a peak reverse voltage rating of 1200 V, allowing it to withstand high voltage stress.
The operating temperature range spans from -65°C to 180°C, providing wide environmental tolerance.
The maximum forward voltage drop is 1.35 V, ensuring efficient conduction.
This diode features a stud cathode configuration with a screw mounting style for secure attachment.
The dimensions are as follows: length 20.02 mm, width 17.35 mm, height 22.9 mm, and diameter 17.4 mm.
The peak non-repetitive forward surge current rating is up to 1.3 kA, allowing it to handle substantial transient loads.
This model is intended for standard industrial and power electronics applications and does not have automotive or special approvals.
The rectifier type is standard recovery switching, suitable for efficient power management.
The peak reverse current is specified at 9 mA.
It is designed for use in industrial power supplies, electronic switching circuits, and laboratory test equipment.
The diode is manufactured in India.
