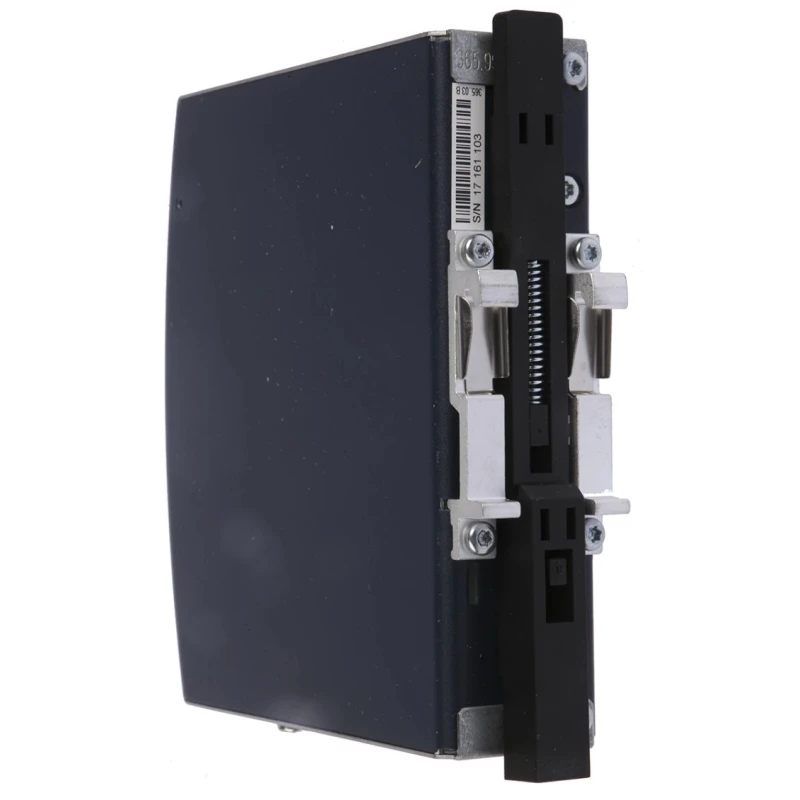

TRACOPOWER DIMENSION Switched Mode Single Phase DIN Rail Power Supply 264V AC Input 28V DC 5A 120W CS5.244
Specifications
| Country of Origin | China |
|---|---|
| Brand | TRACOPOWER |
| Power | 120W |
| Efficiency | 90.2% |
| Height | 124mm |
| Model | CS5.244 |
| Depth | 117mm |
| IP Rating | IP20 |
| Width | 117mm |
| Series | DIMENSION |
| Output Current | 5A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -10°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V ac |
| Electrical Phase | 1 |
| Maximum Output Voltage | 28V dc |
| Minimum Input Voltage | 180V ac |
Key Features
- High efficiency of up to 90.2% ensures energy savings.
- Wide input voltage range from 180V to 264V AC supports global applications.
- Slim design with IP20 protection for DIN rail mounting flexibility.
- Operating temperature range from -10°C to 70°C for various environments.
- Minimal inrush current and low electromagnetic emissions improve system stability.
- Long electrolyte capacitor life expectancy of 50,000 hours enhances durability.
- Overload and short circuit protection ensure safe operation.
- Complies with multiple international safety and EMC standards.
Product Description
PULS CS5.244 DIMENSION switched mode DIN rail power supply offers a stable 28V DC output with a 5A current rating and 120W power capacity. Designed for industrial and automation applications, it provides an input voltage range of 180V to 264V AC suitable for single-phase systems.
This power supply features a compact slim design optimized for DIN rail mounting, with IP20 ingress protection. Its high efficiency of 90.2% minimizes energy loss, and the unit is engineered with a long-lasting electrolytic capacitor rated for 50,000 hours, ensuring extended operational reliability under harsh conditions.
The device automatically switches voltage range between 200V and 240V AC to simplify installation and prevent faults. It has a low ripple factor (less than 50mVpp) and minimal electromagnetic interference, complying with multiple certifications such as EN 55011, CB scheme, EAC, CE, UL, and cULus.
Suitable for industrial control, automation, communication, and instrumentation equipment, this DIN rail power supply operates over a temperature range of -10°C to 70°C with power derating above 60°C. It incorporates safety features including overload protection, short circuit protection, and minimal inrush current to extend service life. The IP20 rated enclosure ensures protection against solid particles while maintaining ventilation.
High efficiency up to 90.2% reduces power loss. Wide voltage input supports global applications between 180V and 264V AC. Compact DIN rail mounting with slim 117mm width and 124mm height. Extended electrolytic capacitor lifetime of 50,000 hours provides durability.
Automatic voltage range switching enhances user convenience and fault avoidance. Compliance with international EMC and safety standards ensures installation safety. Low electromagnetic emissions support sensitive industrial environments.
Overload and short circuit protections safeguard connected equipment.
Choose the PULS DIMENSION CS5.244 for reliable 28V DC power supply needs in industrial, manufacturing, and communication sectors. Available with full technical documentation and conformity certificates.
Discover a wide range of DIN Rail Power Supplies and industrial components on EnvMart to support your automation and control requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The CS5.244 provides a stable output voltage of 28V DC with a current rating of 5A.
It supports an input voltage range from 180V to 264V AC, making it suitable for global applications.
This model has a high efficiency rating of up to 90.2%, which minimizes energy loss during operation.
The dimensions of this unit are 117mm in width, 124mm in height, and it has a depth of 117mm, making it compact for DIN rail mounting.
The maximum operating temperature for the CS5.244 is 70°C, with power derating above 60°C.
This model has an IP20 rating, which provides protection against solid particles while allowing ventilation.
It is suitable for industrial control, automation, communication, and instrumentation equipment.
The device automatically switches voltage range between 200V and 240V AC, simplifying installation and preventing faults.
It is designed to have low electromagnetic emissions, which supports sensitive industrial environments.
This power supply complies with multiple international safety and EMC standards, including EN 55011, CB scheme, EAC, CE, UL, and cULus.
