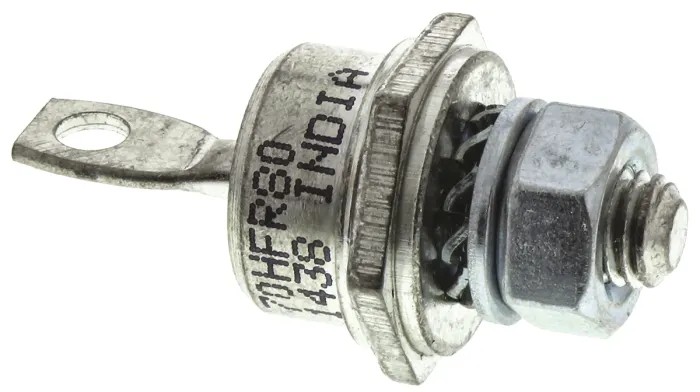

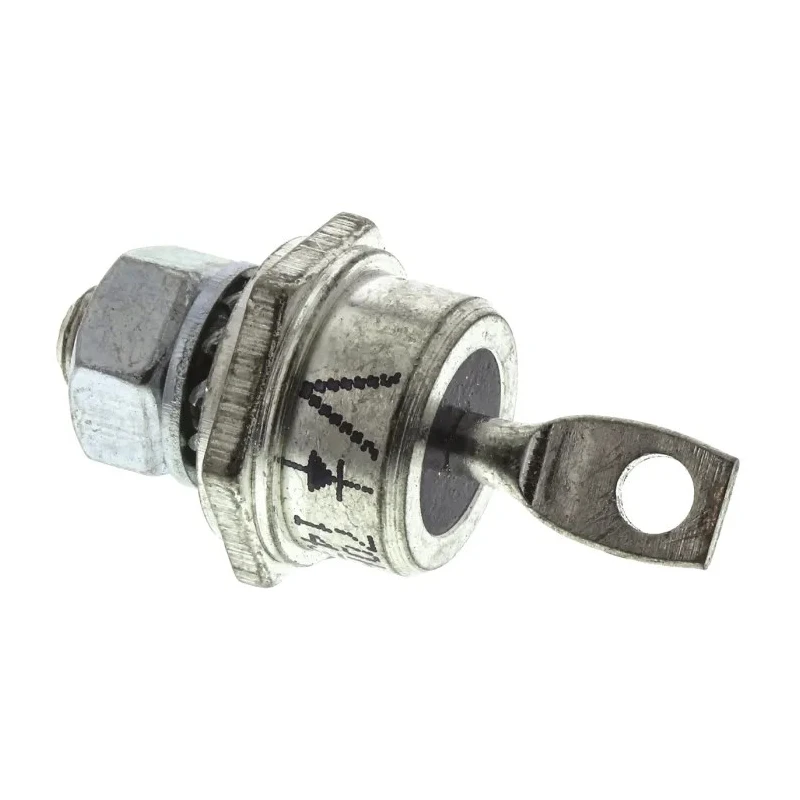

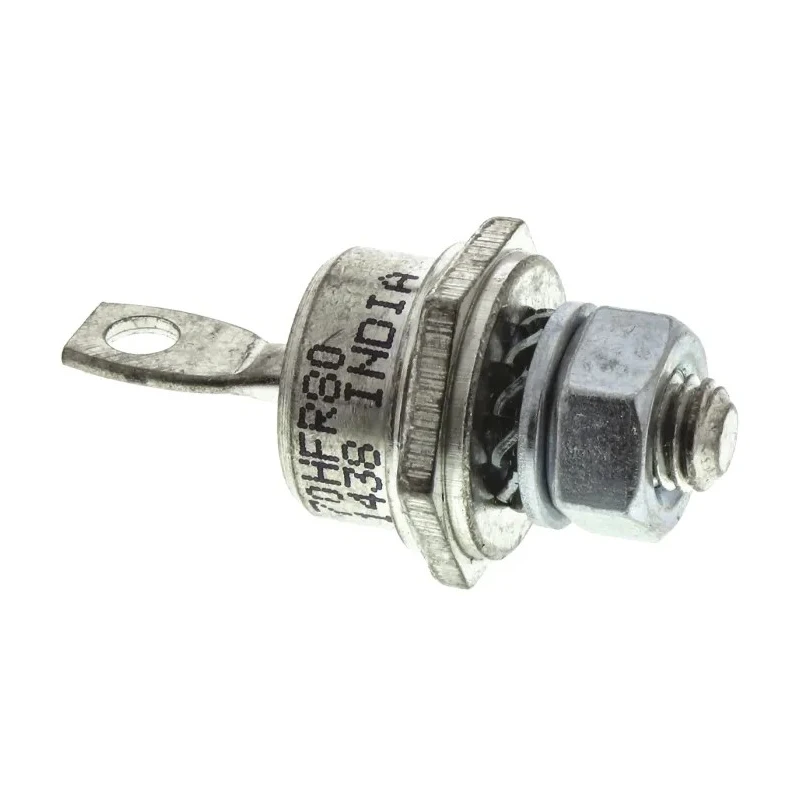

Vishay 800 V 70 A Standard Recovery Switching Diode 2-Pin DO-203AB VS-70HFR80
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 22.9mm |
| Length | 20.02mm |
| Model | VS-70HFR80 |
| Width | 17.35mm |
| Mount Type | Screw |
| Series | 70HF |
| Maximum Operating Temperature | 180°C |
| Package Type | DO-203AB |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 70A |
| Peak Reverse Repetitive Voltage Vrrm | 800V |
| Diode Configuration | Stud Anode |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 9mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1.3kA |
| Maximum Forward Voltage Vf | 1.35V |
| Vishay 800V 70A, Rectifier Diode, 2-Pin DO-5 VS-70HF80MBrand | Vishay |
| Vishay 1 kV 70 A Diode Switching 2-Pin DO-203ABBrand | Vishay |
Key Features
- Capable of handling a maximum continuous forward current of 70 A.
- Rated for peak reverse repetitive voltage of 800 V.
- Features a maximum forward voltage of 1.35 V.
- Operating temperature range from -65°C up to 180°C.
- Supports a peak non-repetitive forward surge current of 1.3 kA.
- Compact dimensions with height 22.9 mm, width 17.35 mm, and length 20.02 mm.
- Equipped with stud anode diode configuration and screw mounting type.
- Designed for standard recovery type rectification in industrial and electronic applications.
Product Description
Vishay VS-70HFR80 is a high-performance Standard Recovery Switching Diode designed for robust power rectification tasks with a peak reverse voltage of 800 V and a maximum continuous forward current rating of 70 A. Packaged in a durable and industry-standard 2-Pin DO-203AB form factor, this diode offers excellent reliability in stringent industrial environments.
With a maximum forward voltage drop of 1.35 V, it ensures efficient conduction while minimizing power dissipation. The diode operates comfortably over a wide temperature range from -65°C to 180°C, making it suitable for diverse applications ranging from power supplies to automotive electronics. Its capability to tolerate a peak non-repetitive forward surge current of up to 1.3 kA adds to its ruggedness under transient conditions.
The physical dimensions of the device are compact with a height of 22.9 mm, width of 17.35 mm, and length of 20.02 mm, facilitating easy integration into existing systems requiring screw mounting and stud anode configuration.
Standard Recovery Switching Diodes like the VS-70HFR80 are widely used in industrial power conversion, motor drives, and power management assemblies within manufacturing, construction, water treatment, and commercial electronic systems.
Maximum continuous forward current rating of 70 A supports high load applications. Peak reverse repetitive voltage of 800 V allows operation in demanding voltage environments. Wide operating temperature range ensures reliability in harsh conditions.
Compact DO-203AB package simplifies handling and assembly. Standard recovery rectifier ensures efficient switching performance. Screw mounting enhances installation stability. Stud anode diode configuration facilitates secure electrical connections.
Explore the Electronics & Electricals Semiconductors category at EnvMart for compatible diodes and related components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating for this model is 70 A.
This diode is rated for a peak reverse repetitive voltage of 800 V.
The operating temperature range for the VS-70HFR80 is from -65°C to 180°C.
The dimensions of this model are a height of 22.9 mm, width of 17.35 mm, and length of 20.02 mm.
It features a screw mounting type, which enhances installation stability.
The maximum forward voltage drop for the VS-70HFR80 is 1.35 V.
This diode can tolerate a peak non-repetitive forward surge current of up to 1.3 kA.
It is equipped with a stud anode diode configuration.
The VS-70HFR80 is classified as a standard recovery switching diode.
This model is designed for industrial power conversion, motor drives, and power management assemblies.
The VS-70HFR80 has a pin count of 2.
The country of origin for this diode is India.
