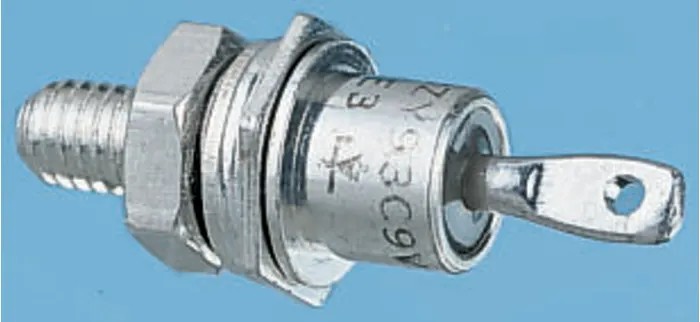

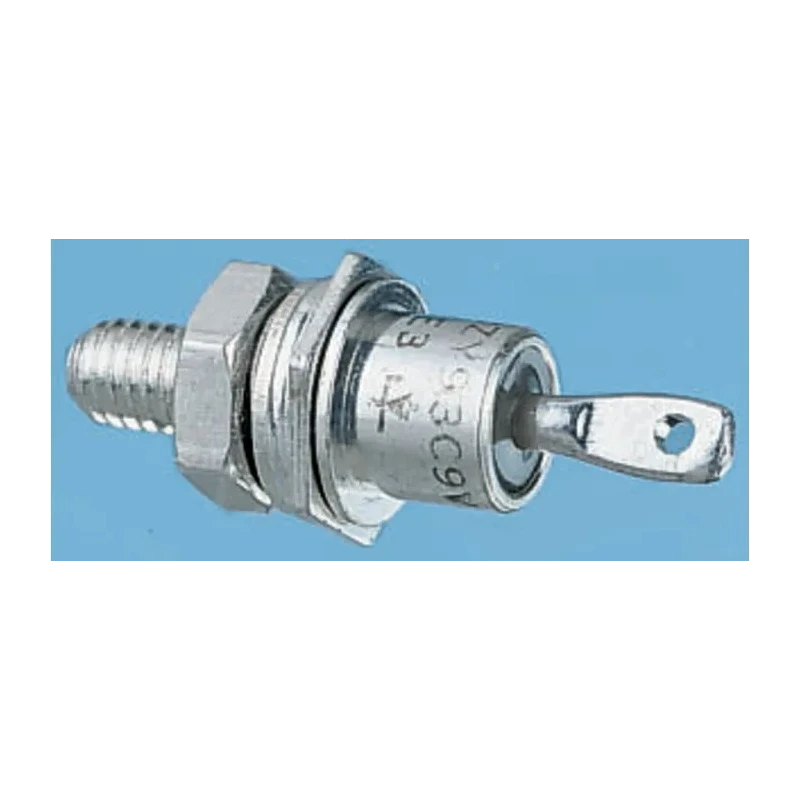

Vishay Standard Recovery Switching Diode 800 V 25 A 2-Pin DO-203AA VS-25FR80
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 31.8mm |
| Length | 12.69mm |
| Model | VS-25FR80 |
| Width | 11mm |
| Mount Type | Screw |
| Series | VS-25F |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-203AA |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 25A |
| Peak Reverse Repetitive Voltage Vrrm | 800V |
| Diode Configuration | Stud Anode |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 12mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 373A |
| Maximum Forward Voltage Vf | 1.3V |
| Vishay 1200 V 25 A Diode Switching 2-Pin DO-203AABrand | Vishay |
Key Features
- This diode features a maximum forward voltage drop of 1.3 V for efficient switching performance.
- It complies with industry-standard package dimensions of 31.8 mm height, 12.69 mm length, and 11 mm width.
- Designed for tough conditions with operating temperature range from -65°C to 175°C.
- The diode has a peak non-repetitive surge current rating of 373 A for transient robustness.
- The 2-pin stud anode configuration ensures reliable electrical connection.
- It supports switching rectifier applications requiring high efficiency and durability.
- Suitable for industrial electronics, power management, and semiconductor circuits.
Product Description
Vishay VS-25FR80 is a high-performance Standard Recovery Switching Diode designed to handle a maximum continuous forward current of 25 A and withstand peak reverse repetitive voltage up to 800 V. Packaged in a rugged 2-pin DO-203AA format, this diode delivers reliable switching performance with a maximum forward voltage drop of 1.3 V, enabling efficiency in power rectification tasks.
Engineered to operate in demanding thermal environments, this diode supports a broad temperature range from -65°C minimum to 175°C maximum, making it suitable for various industrial and power electronics applications. Its robust surge current capability of 373 A peak non-repetitive forward surge current ensures durability under transient overload conditions.
The stud anode diode configuration and compact package dimensions (31.8 mm height, 12.69 mm length, and 11 mm width) provide ease of mounting and integration into standard electronic assemblies. Although it does not carry specific automotive certifications, it meets general semiconductor standards for reliability and performance.
Applications include use in power and discrete semiconductor equipment, switching regulators, industrial control units, and other electrical systems requiring efficient high-current diode switching components. Vishay's semiconductor lines emphasize quality and longevity in challenging electronic environments.
This diode features a maximum forward voltage drop of 1.3 V for efficient switching performance. It complies with industry-standard package dimensions suitable for electronic assemblies. Designed for harsh operating conditions with wide temperature tolerance.
High surge current capacity enhances device robustness and reliability. Standard 2-pin DO-203AA package allows straightforward mounting. The component is fit for industrial semiconductor and power electronics use. Vishay product, representing established semiconductor manufacturing quality.
Explore more Semiconductor Diodes from Vishay and related power management electronic components to fulfill demanding circuit design needs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this diode is 25 A.
This model has a peak reverse repetitive voltage rating of 800 V.
The maximum forward voltage drop for this diode is 1.3 V.
It operates within a temperature range from -65°C to 175°C.
The diode has a peak non-repetitive forward surge current rating of 373 A.
The diode has dimensions of 31.8 mm in height, 12.69 mm in length, and 11 mm in width.
This diode supports screw mounting.
The diode features a stud anode configuration.
It is suitable for applications in power management, industrial electronics, and semiconductor circuits.
This model has a pin count of 2.
This diode is classified as a switching rectifier.
The country of origin for this diode is India.
