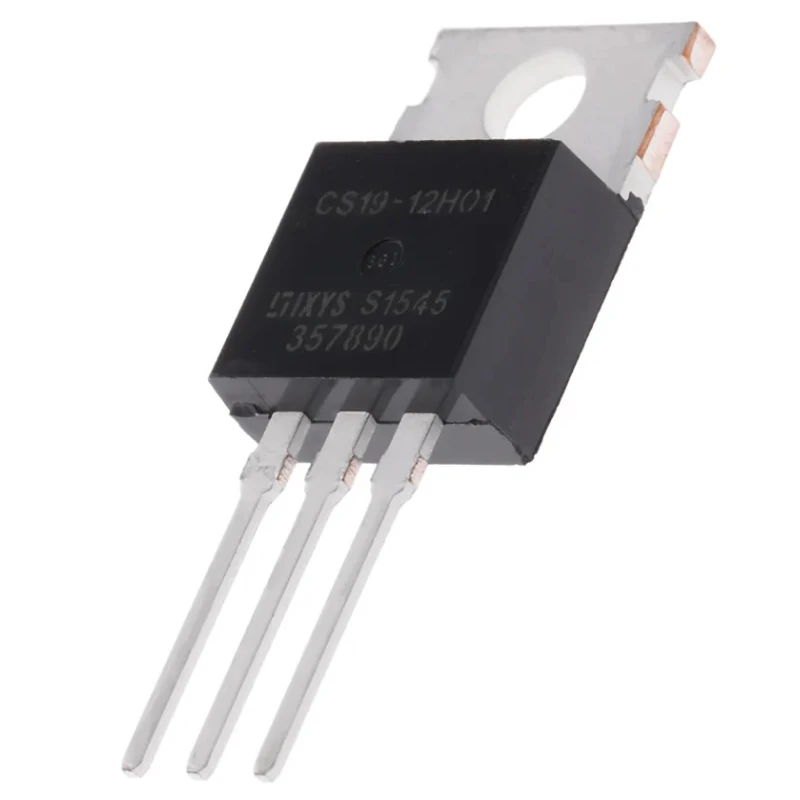

IXYS Thyristor 1200 V, 19 A Rated Average On-State Current, 28 mA Gate Trigger Current, 180 A Surge Current CS19-12HO1

The IXYS CS19-12HO1 Thyristor is a robust and reliable solid-state semiconductor device designed for power control and switching applications. Rated for 1200 V repetitive peak reverse voltage and 19 A rated average on-state current, it features a surge current capacity of 180 A, making it suitable for high-demand industrial environments.

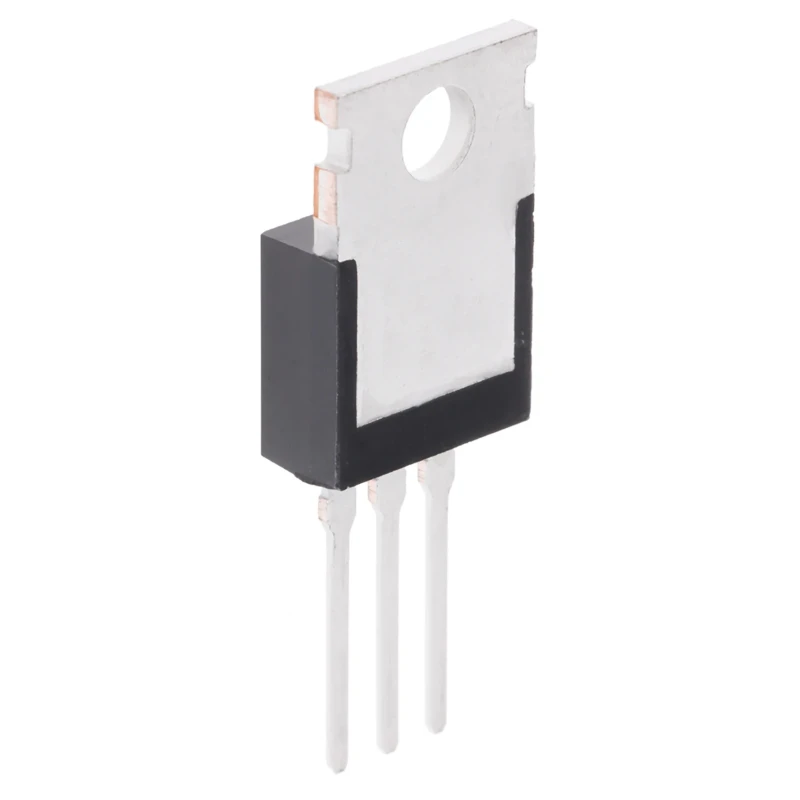

Encapsulated in a TO-220 package, this device supports through-hole mounting, facilitating easy installation in electronic assemblies. Its maximum gate trigger current of 28 mA and gate trigger voltage of 1.5 V ensure efficient triggering with minimal input signal requirements.

Operational within a temperature range from -40°C to 125°C, the CS19-12HO1 delivers dependable performance in temperature-sensitive applications such as battery chargers, welding machines, regulated power supplies, and motor speed controllers.

With a maximum holding current of 50 mA and a repetitive peak off-state current of 5 mA, it maintains stable conduction and blocking states, essential for phase control applications. The device's 3-pin configuration simplifies integration into power control circuits.

High surge current rating of 180 A supports transient load handling. Low gate trigger requirements reduce control power consumption. Wide operating temperature range suitable for industrial use. Durable TO-220 package ensures effective heat dissipation.

Applications include battery chargers, welders, and regulated power supplies.

IXYS thyristors are engineered for demanding environments in industrial, manufacturing, and power management sectors. This component enables efficient and reliable power control solutions in electronic circuits.
