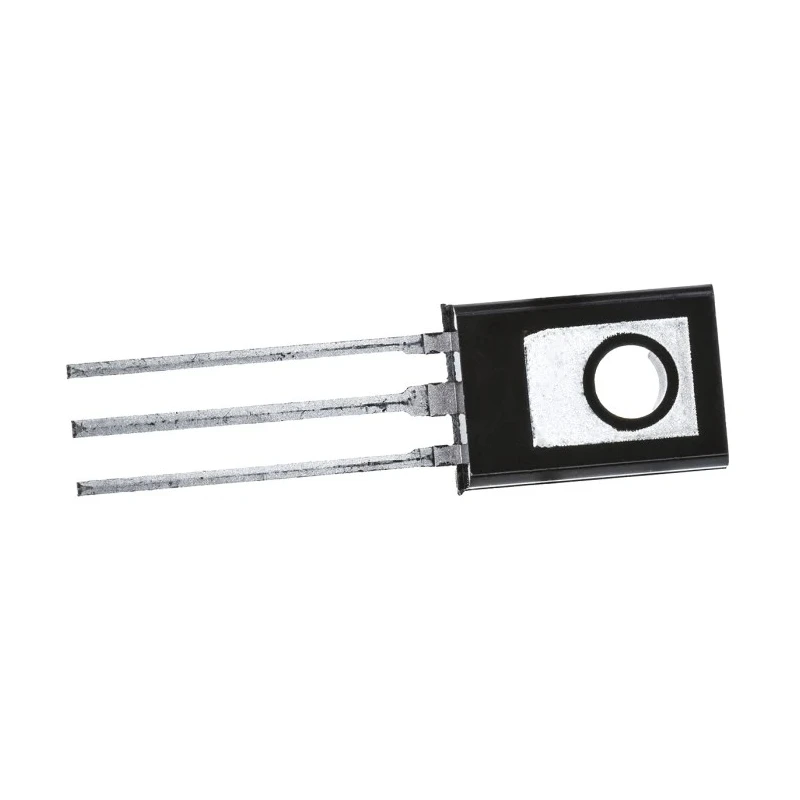

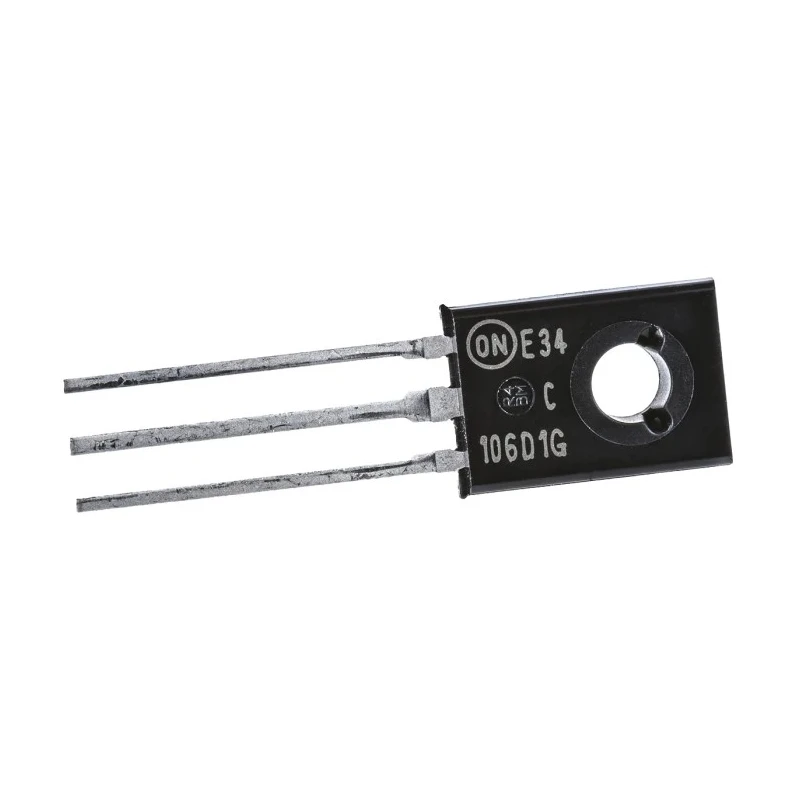

Littelfuse Sensitive Gate Silicon Controlled Rectifier SCR 600 V 4 A TO-225 Package C106D1G
Specifications
| Country of Origin | India |
|---|---|
| Brand | Littelfuse |
| Model | C106D1G |
| Mount Type | Chassis, Lead |
| Series | C106 |
| Maximum Operating Temperature | 110°C |
| Package Type | TO-225 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 4A |
| Thyristor Type | SCR |
| Repetitive Peak Reverse Voltage VDRM | 600V |
| Surge Current Rating | 20A |
| Maximum Gate Trigger Current Igt | 200μA |
| Maximum Holding Current Ih | 6mA |
| Maximum Gate Trigger Voltage Vgt | 1V |
| Peak On-State Voltage | 2.2V |
| Repetitive Peak Off-State Current | 0.01mA |
Key Features
- Equipped with a TO-225 package for chassis and lead mounting.
- Repetitive peak reverse voltage of 600 V suitable for high voltage applications.
- Maximum gate trigger current of 200 μA for sensitive gate triggering.
- Surge current rating of 20 A ensures robust transient handling.
- Operates reliably in temperatures ranging from -40°C to 110°C.
- Contains 3 pins with a maximum gate trigger voltage of 1 V.
- Peak on-state voltage of 2.2 V minimizes power dissipation during operation.
- Designed to hold a maximum current of 6 mA with repetitive peak off-state current of 0.01 mA.
Product Description
The Littelfuse C106D1G is a sensitive gate silicon controlled rectifier (SCR) designed for precise phase control and switching in electronic circuits. Rated for a repetitive peak reverse voltage of 600 V and an average on-state current of 4 A, this SCR offers robust performance in a compact TO-225 package optimized for chassis and lead mounting.
Its low gate trigger current of 200 μA enables efficient triggering with minimal input power. This device can withstand surge currents up to 20 A, making it suitable for transient heavy-duty applications. Operating temperature ranges from -40°C to 110°C allow for use in demanding environmental conditions.
The C106D1G includes 3 pins and features a maximum gate trigger voltage of 1 V, along with a peak on-state voltage of 2.2 V to ensure low conduction losses. Its maximum holding current is 6 mA, complemented by a minimal repetitive peak off-state current of 0.01 mA, enhancing its off-state reliability.
This SCR is suitable for industrial, power electronics, and electronic component applications where controlled rectification and switching are required. It complies with no specific certifications but is a trusted component from Littelfuse, recognized for quality and reliability.
Equipped with a TO-225 package for chassis and lead mounting. Repetitive peak reverse voltage of 600 V suitable for high voltage applications. Maximum gate trigger current of 200 μA for sensitive gate triggering. Surge current rating of 20 A ensures robust transient handling.
Operates reliably in temperatures ranging from -40°C to 110°C. Contains 3 pins with a maximum gate trigger voltage of 1 V. Peak on-state voltage of 2.2 V minimizes power dissipation during operation. Designed to hold a maximum current of 6 mA with repetitive peak off-state current of 0.01 mA.
Ideal for phase control and switching applications in industrial and electronic systems. Explore more electronics and semiconductor components on EnvMart for your industrial, laboratory, and commercial electronic needs.
Explore more products in our Thyristors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Littelfuse C106D1G has a maximum repetitive peak reverse voltage of 600 V, making it suitable for high voltage applications.
This model is rated for an average on-state current of 4 A, allowing it to handle significant current in applications.
The surge current rating for this SCR is 20 A, ensuring robust handling of transient conditions.
The maximum gate trigger current for the C106D1G is 200 μA, which facilitates sensitive gate triggering.
It operates reliably within a temperature range of -40°C to 110°C, suitable for demanding environments.
This SCR contains 3 pins, designed for effective mounting and connection in electronic circuits.
The peak on-state voltage for the C106D1G is 2.2 V, which helps minimize power dissipation during operation.
The maximum holding current for the C106D1G is 6 mA, providing reliable off-state performance.
The maximum gate trigger voltage for this model is 1 V, allowing for efficient control during operation.
This SCR is packaged in a TO-225 type, which is optimized for chassis and lead mounting.
It is designed for phase control and switching applications in industrial and electronic systems.
The Littelfuse C106D1G is manufactured in India.
