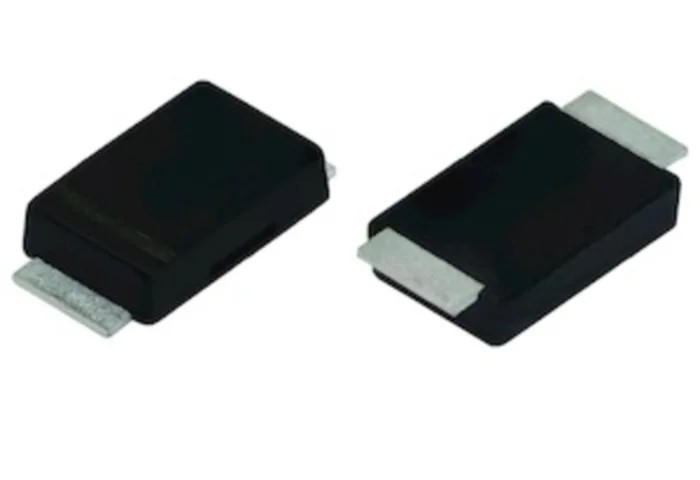

Vishay Schottky Barrier Diode 150 V 2 A Surface Mount DO-221AD VSS8D2M15HM3/H
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 2.7mm |
| Length | 5mm |
| Model | VSS8D2M15HM3/H |
| Mount Type | Surface |
| Series | VSS8D2M15 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-221AD |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 150V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 0.64V |
Key Features
- This Schottky diode features a maximum forward voltage of 0.64 V.
- It supports a peak reverse repetitive voltage of 150 V.
- The diode has a maximum continuous forward current rating of 2 A.
- It operates reliably within a temperature range of -40°C to 175°C.
- Designed for high-frequency inverter and DC/DC converter applications.
- Low forward voltage drop ensures high efficiency with reduced power loss.
- Surface mount device suitable for automated assembly processes.
- The diode meets RoHS and automotive standard AEC-Q101 compliance.
Product Description
Vishay VSS8D2M15HM3/H Schottky Barrier Diode is a compact, surface-mounted semiconductor device housed in a 2-pin DO-221AD package with a length of 5 mm and height of 2.7 mm. Rated for 150 V peak reverse repetitive voltage and continuous forward current of 2 A, it features a low maximum forward voltage of 0.64 V. This enables high efficiency with low power losses, making it ideal for usage in high-frequency inverters, freewheeling circuits, DC/DC converters, and polarity protection in commercial, industrial, and automotive electronics.
The device is designed to operate reliably within a temperature range of -40°C to 175°C, with a peak non-repetitive forward surge current of 50 A, ensuring robustness even in surge conditions. The Schottky diode's low leakage current and fast switching capabilities allow it to meet the demanding needs of modern electronic systems. Its compliance with RoHS directives and the automotive standard AEC-Q101 highlights its quality and suitability for automotive applications.
This diode is optimized for automated placement due to its surface mount configuration and compact form factor, supporting efficient manufacturing processes. The single diode configuration simplifies integration into circuits requiring rectification or barrier switching capabilities.
This Schottky diode has a maximum forward voltage of 0.64 V, providing efficient current flow. Rated for a peak reverse voltage of up to 150 V, ensuring reliable operation under voltage stresses. Supports continuous forward current of 2 A with surge capabilities up to 50 A.
Operates across a wide temperature range from -40°C to 175°C for versatile environmental tolerance. Compliant with RoHS and automotive AEC-Q101 standards for quality and safety assurance. Compact 5 mm x 2.7 mm dimensions suit space-constrained designs.
Surface mount package facilitates automated assembly processes. Suitable for applications in power electronics including DC/DC converters and inverters.
The Vishay VSS8D2M15HM3/H Schottky Barrier Diode is an essential component for engineers designing efficient and reliable electronic circuits in industrial, automotive, and commercial sectors. Discover more related Schottky diodes and semiconductor products in EnvMart's Electronics & Electricals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum peak reverse repetitive voltage rating for this diode is 150 V.
This model supports a maximum continuous forward current rating of 2 A.
The maximum forward voltage drop for this Schottky diode is 0.64 V.
It operates reliably within a temperature range of -40°C to 175°C.
The diode is housed in a 2-pin DO-221AD package.
The peak non-repetitive forward surge current is rated at 50 A.
Yes, it meets RoHS and automotive standard AEC-Q101 compliance.
The diode has a height of 2.7 mm and a length of 5 mm.
It is a surface mount device, suitable for automated assembly processes.
This diode is designed for high-frequency inverters, DC/DC converters, and polarity protection in various electronic circuits.
The diode features a single diode configuration, simplifying integration into circuits.
The country of origin for this Schottky diode is China.
