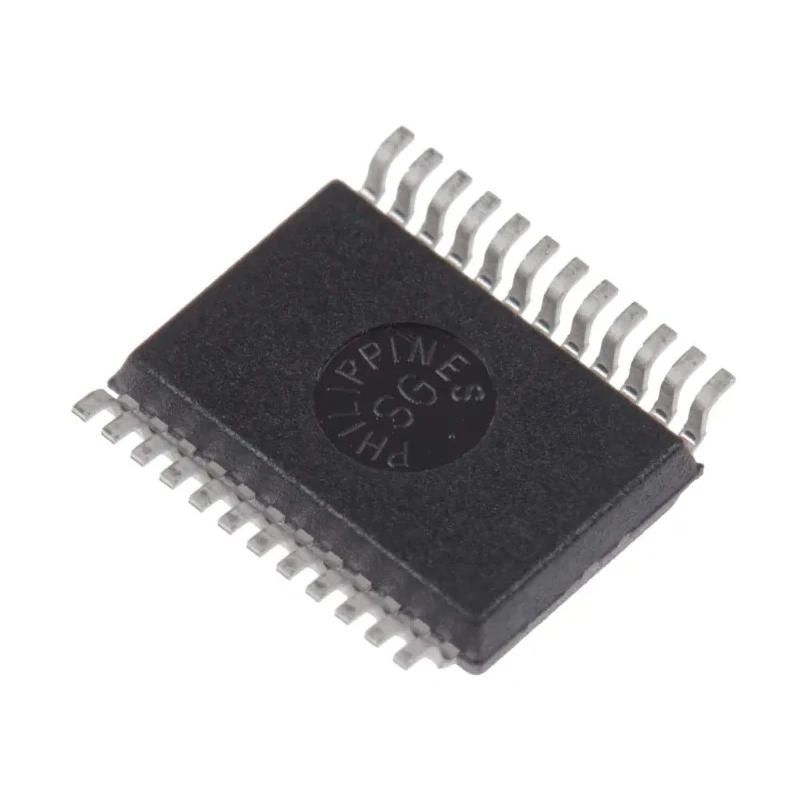

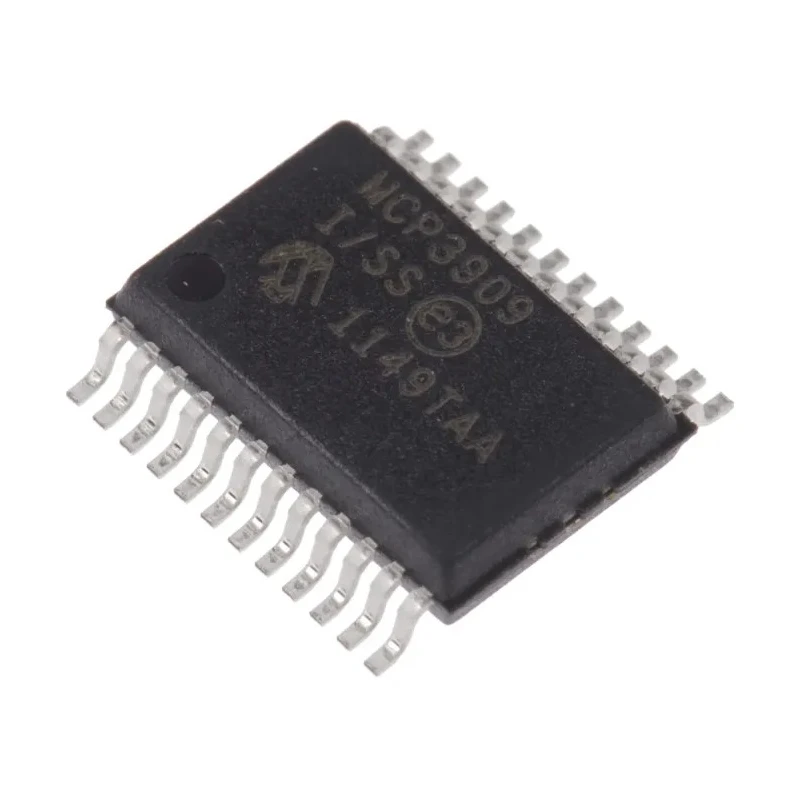

Microchip 24-Pin Energy Meter IC, 16 Bit Resolution, 2 Phase, Surface Mount, SSOP Package, Minimum Supply MCP3909-I/SS
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 16 bit |
| Brand | Microchip |
| Height | 1.78mm |
| Length | 8.33mm |
| Model | MCP3909-I/SS |
| Width | 5.38mm |
| Mount Type | Surface |
| Series | MCP3909 |
| Maximum Operating Temperature | 125°C |
| Meter Type | 2 Phase |
| Package Type | SSOP |
| Minimum Operating Temperature | -65°C |
| Pin Count | 24 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 4.5V |
Key Features
- High-resolution 16 bit energy measurement for precise monitoring.
- SSOP surface mount package efficient for compact PCB designs.
- Operates reliably between 4.5V and 5.5V supply voltage.
- Ideal for measurement of 2-phase energy systems.
- Robust operating temperature range from -65°C to 125°C.
- 24-pin configuration provides versatile interface options.
- Series MCP3909 with dedicated energy/power measurement capabilities.
- Surface mount design facilitates automated assembly workflows.
Product Description
Microchip MCP3909-I/SS Energy Meter IC is a precision energy measurement integrated circuit designed for advanced electronic metering systems. With its 16-bit resolution, this IC allows accurate tracking of electrical energy usage across 2-phase systems, supporting applications from commercial and industrial energy meters to smart metering solutions.
Packaged in a compact SSOP format with 24 pins, the MCP3909-I/SS is tailored for surface mount assembly, making it highly compatible with automated PCB manufacturing. The device operates on a supply voltage range of 4.5V to 5.5V, ensuring reliability in a variety of electronics environments and maintaining accurate performance across its full voltage spectrum.
Engineered to tolerate demanding industrial temperatures, its functional range stretches from -65°C up to 125°C, providing resilience for harsh environments and extending application flexibility. The chip is part of Microchip's MCP3909 series, focused on advanced energy/power measurement and signal conversion for metering, automation, and monitoring systems.
With a dedicated 2-phase meter type, it is ideal for dual-phase installations and is foundational for multi-phase metering equipment, supporting thorough measurement protocols. The robust SSOP surface mount package simplifies integration into new products or legacy designs with limited space.
Additional features such as no automotive standard approval expand its usage beyond vehicle-specific applications. The IC's architecture supports signal processing required for accurate measurements, making it a reliable choice for system designers targeting precision and repeatability in industrial, laboratory, and commercial energy management solutions.
Explore more professional IC solutions in the Energy Meter IC category from Microchip and related brands on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a resolution of 16 bits, allowing for precise energy measurement in various applications.
It operates reliably within a temperature range of -65°C to 125°C, making it suitable for demanding environments.
This unit requires a supply voltage between 4.5V and 5.5V to function correctly.
It comes in a compact SSOP package, which is designed for surface mount assembly.
It is designed for 2-phase energy measurement, making it ideal for dual-phase installations.
This unit measures 8.33mm in length, 5.38mm in width, and 1.78mm in height.
Yes, its surface mount design facilitates automated assembly workflows, making it compatible with modern PCB manufacturing processes.
This energy meter IC is part of the MCP3909 series, which focuses on advanced energy and power measurement capabilities.
The MCP3909-I/SS is manufactured in India.
No, the MCP3909-I/SS does not have automotive standard approval, which expands its usage beyond vehicle-specific applications.
