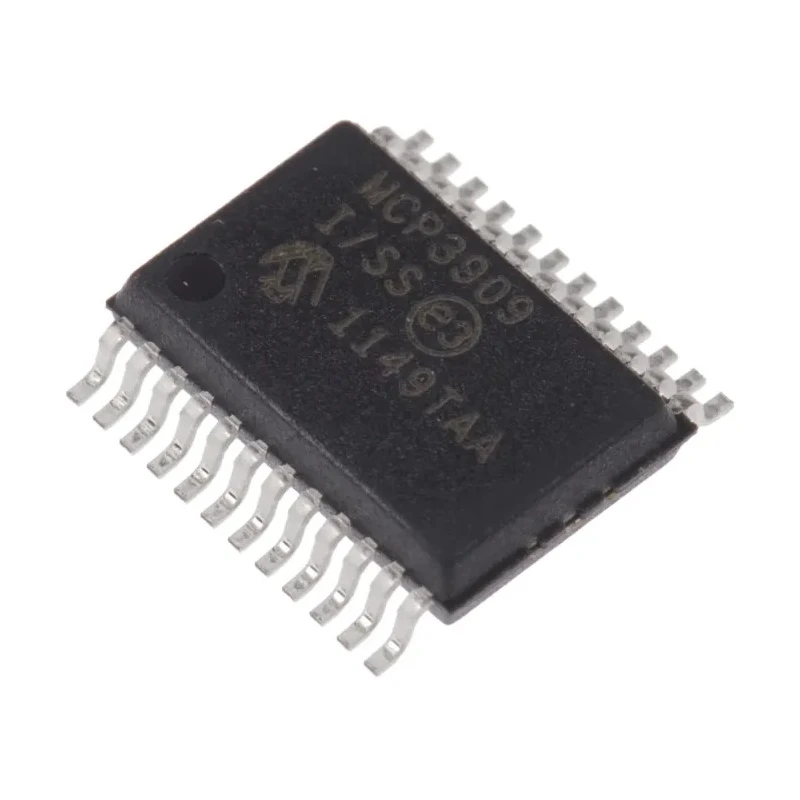

Microchip 24-Pin Energy Meter IC 16 bit SSOP Min Input Voltage 4.5 V Max 5.5 V MCP3909-I/SS
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 16 bit |
| Brand | Microchip |
| Height | 1.78mm |
| Length | 8.33mm |
| Model | MCP3909-I/SS |
| Width | 5.38mm |
| Mount Type | Surface |
| Series | MCP3909 |
| Maximum Operating Temperature | 125°C |
| Meter Type | 2 Phase |
| Package Type | SSOP |
| Minimum Operating Temperature | -65°C |
| Pin Count | 24 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 4.5V |
Key Features
- Operates within a supply voltage range of 4.5 V to 5.5 V.
- Surface mount device in compact SSOP package with 24 pins.
- Temperature tolerance range from -65°C to 125°C for versatile industrial applications.
- Supports 2-phase energy meter configuration for accurate power metering.
- Does not comply with automotive standards.
- Suitable for incorporation in electronic components, power, and connector modules.
- Ideal for industrial and instrumentation energy measurement use cases.
- Enables efficient energy monitoring and management in electrical systems.
Product Description
Microchip MCP3909-I/SS is a highly accurate 24-pin Energy Meter IC featuring 16 bit resolution and an SSOP compact surface mount package. Designed to operate with a minimum supply voltage of 4.5 V and a maximum of 5.5 V, it ensures reliable energy measurement over a wide temperature range from -65°C to 125°C.
This 2-phase meter type IC is ideal for integration into electronic and power connector applications requiring precise energy monitoring. Its compact dimensions of 8.33 mm length, 5.38 mm width, and 1.78 mm height allow space-efficient PCB assembly.
Though it is not certified for automotive standards, the MCP3909 series offers excellent performance for industrial, manufacturing, laboratory, and electrical instrumentation deployments. This model supports surface mount technology (SMT) simplifying installation in modern electronics equipment.
The device is suitable for energy measurement in a variety of sectors including renewable energy systems, electrical power distribution, and industrial production units where accurate power and energy metrics are essential.
Operates between 4.5 V and 5.5 V supply voltage. Provides 16-bit resolution energy measurement. Compact SSOP 24-pin surface mount package. Wide operating temperature range from -65°C to 125°C. Designed for 2-phase energy meter applications.
Not compliant with automotive standards but suited for industrial use. Facilitates precise energy monitoring in electrical systems. Ideal for industrial, laboratory, and manufacturing applications.
EnvMart offers a comprehensive selection of energy measurement ICs including the Microchip MCP3909-I/SS, enabling users to source reliable semiconductor components with detailed specifications and datasheet support.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP3909-I/SS operates within a supply voltage range of 4.5 V to 5.5 V.
This model features a resolution of 16 bits for accurate energy measurement.
The dimensions of this energy meter IC are 8.33 mm in length, 5.38 mm in width, and 1.78 mm in height.
It has a wide temperature tolerance range from -65°C to 125°C, making it suitable for various industrial applications.
This energy meter IC supports surface mount technology (SMT), facilitating easy installation in modern electronics.
This model is designed for 2-phase energy meter applications, enabling accurate power metering.
No, this model does not comply with automotive standards but is suitable for industrial use.
It is ideal for energy measurement in sectors such as renewable energy systems, electrical power distribution, and industrial production units.
This energy meter IC has a pin count of 24.
It belongs to the MCP3909 series of energy meter ICs.
The country of origin for this model is India.
The maximum operating temperature for this model is 125°C.
