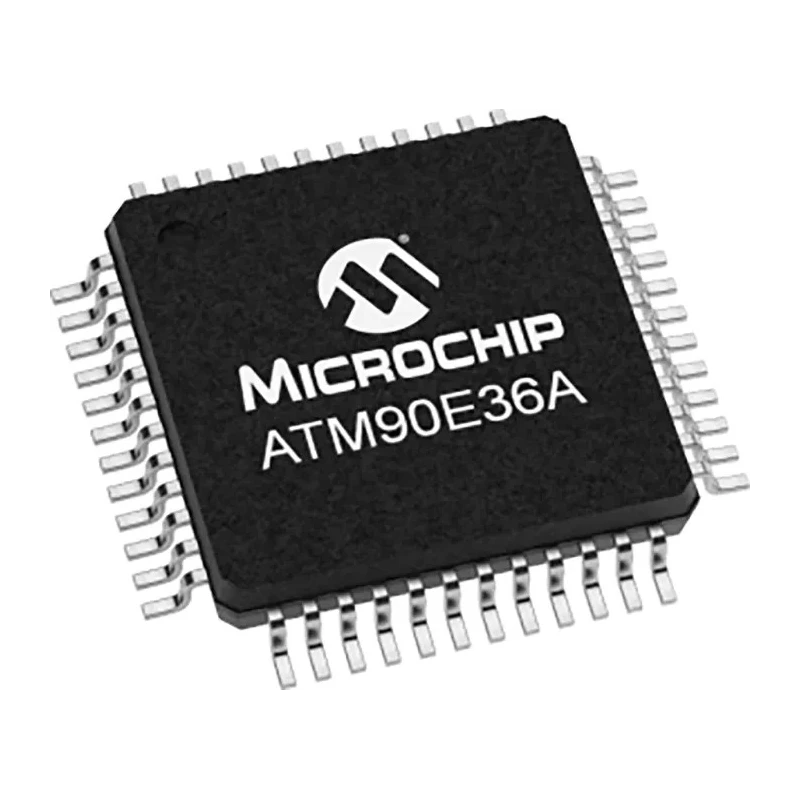

Microchip Wide-Span Energy Metering IC, 7-Channel 16 bit SPI, 48-Pin TQFP ATM90E36A-AU-Y
Specifications
| Country of Origin | Taiwan |
|---|---|
| Resolution | 16 bit |
| Brand | Microchip |
| Height | 1.05mm |
| Length | 7mm |
| Model | ATM90E36A-AU-Y |
| Mount Type | Surface |
| Series | M90E36A |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 7 |
| Interface Type | SPI |
| Pin Count | 48 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 2.8V |
| Number of ADCs | 1 |
Key Features
- Operates in three-phase four-wire or three-wire power systems.
- Features single ADC with 16-bit resolution for accurate measurements.
- Supports SPI interface for seamless communication.
- Wide supply voltage range from 2.8V to 3.6V.
- Operates reliably from -40°C to 85°C temperature range.
- Compact package with 48 pins in TQFP form factor.
- Complies with ANSI C12.20 and IEC standards for energy metering.
- Offers poly-phase solutions up to class 0.2 accuracy.
Product Description
Microchip ATM90E36A-AU-Y Wide-Span Energy Metering IC is designed for precise energy measurement in industrial, commercial, and utility power monitoring applications supporting three-phase four-wire (3P4W) and three-phase three-wire (3P3W) systems. This 7-channel device incorporates a high-resolution 16-bit ADC with SPI interface and a compact 48-pin TQFP surface mount package, optimized for reliable operation between -40°C and 85°C with supply voltages ranging from 2.8V to 3.6V.
The device supports advanced measurement functions including voltage, current, total harmonic distortion (THD), discrete Fourier transform (DFT), and mean power calculations, enabling sophisticated power monitoring and energy metering solutions compliant with ANSI and IEC metering standards including ANSI C12.20, IEC 62052-11, IEC 62053-23, and IEC 62053-22. Its wide dynamic range of 6000:1 ensures enhanced performance and reduced bill of materials cost for original equipment manufacturers.
Microchip ATM90E36A-AU-Y is ideal for industrial energy monitoring, power quality analysis, data acquisition terminals, and smart grid metering with poly-phase accuracy up to class 0.2. The device is manufactured in Taiwan, Province Of China, and does not include automotive standard certifications.
Operates in three-phase four-wire and three-wire systems for versatile energy measurement. High-performance single 16-bit ADC with SPI interface ensures accuracy and fast data transfer. Wide supply voltage and temperature ranges support varied industrial environments.
Compliant with multiple industry standards for accuracy and reliability. Compact TQFP 48-pin package facilitates easy surface mounting on PCBs. Features include Fourier analysis for THD and DFT measurements, enhancing power monitoring capabilities.
Microchip offers comprehensive documentation and technical support to facilitate integration into power monitoring instruments. This energy metering IC is suitable for applications in industrial automation, energy management systems, smart metering, and data acquisition.
Explore more products in the Energy Meter IC category on EnvMart for comprehensive solutions to your energy monitoring and measurement requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The resolution of the ATM90E36A-AU-Y is 16 bits, allowing for accurate energy measurements.
It operates in three-phase four-wire (3P4W) and three-phase three-wire (3P3W) power systems, providing versatility in energy measurement.
The device supports a supply voltage range from 2.8V to 3.6V, making it suitable for various industrial applications.
It operates reliably within a temperature range of -40°C to 85°C, accommodating a wide range of environmental conditions.
This model features 7 channels, enabling comprehensive energy monitoring capabilities.
It utilizes an SPI interface for seamless communication and data transfer.
The ATM90E36A-AU-Y comes in a TQFP package type with 48 pins, facilitating surface mounting on PCBs.
It supports advanced functions such as voltage, current, total harmonic distortion (THD), discrete Fourier transform (DFT), and mean power calculations.
This energy metering IC complies with ANSI C12.20 and IEC standards, ensuring accuracy and reliability in energy measurement.
The dimensions of this model are 1.05 mm in height and 7 mm in length, making it compact for integration into devices.
It is manufactured in Taiwan, Province Of China, ensuring compliance with regional manufacturing standards.
It is suitable for industrial energy monitoring, power quality analysis, data acquisition terminals, and smart grid metering.
