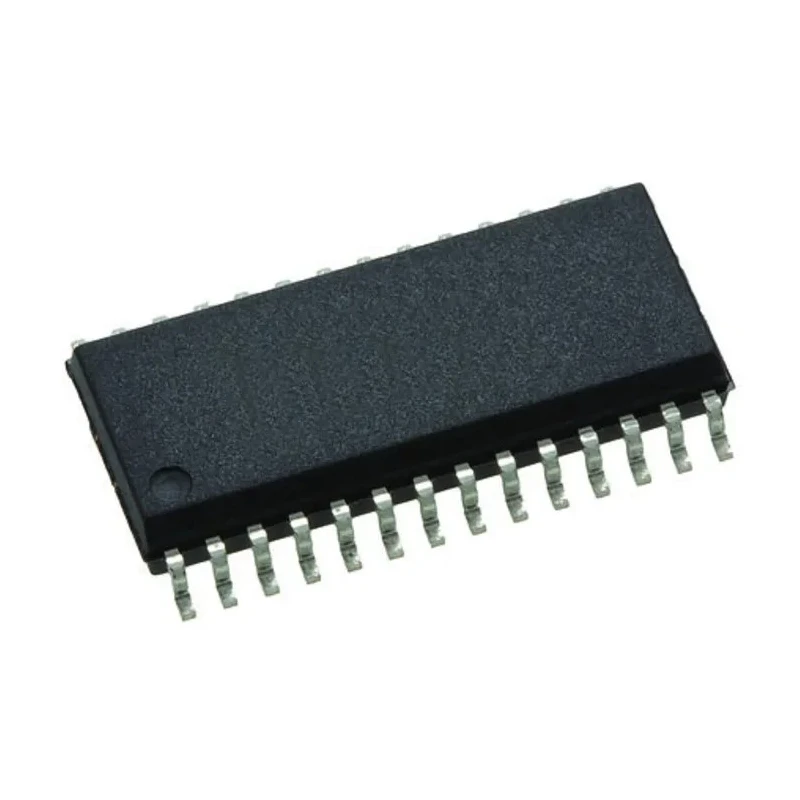

Texas Instruments 16-Bit SAR Analogue to Digital Converter 250 ksps, 28-Pin SOIC ADS8505IDW
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 16 bit |
| Brand | Texas Instruments |
| Height | 2.64mm |
| Length | 18.08mm |
| Model | ADS8505IDW |
| Mount Type | Surface |
| Sampling rate | 250ksps |
| Series | ADS8505 |
| Input Type | Voltage |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Interface Type | Parallel |
| Architecture | SAR |
| Pin Count | 28 |
| Maximum Supply Voltage | 5.25V |
| Minimum Supply Voltage | 5V |
| Number of ADCs | 1 |
Key Features
- The ADC features a 16-bit resolution for precise digital conversion.
- It operates with a sampling rate of 250 ksps suitable for moderate speed applications.
- The architecture is SAR type ensuring low power consumption during operation.
- The device supports a parallel interface and voltage input type.
- Operating temperature range spans from -40°C to 85°C for robust industrial applications.
- The component has a surface mount type with 28 pins in an SOIC package design.
- Minimum supply voltage is 5V with a maximum voltage of 5.25V ensuring stable performance.
- No automotive or special standards approvals are included.
Product Description
Texas Instruments ADS8505IDW is a high precision 16-bit Analogue to Digital Converter (ADC) featuring a Successive Approximation Register (SAR) architecture. It provides a sampling rate of 250 kilo samples per second (ksps) and comes in a 28-pin SOIC surface mount package. This ADC is intended for use in electronic components, power and connectors, and semiconductor applications requiring accurate signal conversion.
Designed to operate across a wide temperature range from -40°C to 85°C, the ADS8505IDW offers robust performance in industrial and commercial environments. Its parallel interface and voltage input type make it suitable for a variety of system designs where precise and efficient data conversion is needed.
The device operates between 5 V and 5.25 V supply voltages. Its compact dimensions (length 18.08 mm, height 2.64 mm) facilitate space-efficient PCB layouts. It is not certified for automotive standards but is ideal for instrumentation, industrial automation, and data acquisition systems that require high-fidelity analog-to-digital conversion.
The ADC's SAR architecture ensures low power consumption and high accuracy. A single-channel input contributes to simplified system integration. The 16-bit resolution supports fine analog signal measurement. The 28-pin SOIC package supports surface mount assembly techniques.
The broad operating temperature range supports diverse industrial applications. Stable and consistent sampling rate of 250ksps for reliable performance. Parallel interface supports straightforward integration into existing designs.
Voltage input type is standard for most analog signal measurements. Compact physical dimensions allow use in space-constrained devices. New product condition assures reliability and long-term usage.
This Texas Instruments ADC product is ideal for electronics manufacturing, industrial instrumentation, laboratory measurement equipment, and embedded control devices. It supports a variety of signal conversion needs from industrial machines to laboratory systems.
Explore other semiconductor components and Analogue to Digital Converters at EnvMart to enhance your electronic design projects with reliable, high-quality parts.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ADS8505IDW features a resolution of 16 bits, allowing for precise digital conversion of analog signals.
This model operates with a maximum sampling rate of 250 kilo samples per second (ksps), suitable for moderate speed applications.
It supports a parallel interface, facilitating straightforward integration into existing electronic designs.
The operating temperature range spans from -40°C to 85°C, making it suitable for robust industrial applications.
This unit requires a minimum supply voltage of 5V and a maximum of 5.25V for stable performance.
The ADS8505IDW comes in a 28-pin SOIC surface mount package, designed for space-efficient PCB layouts.
The SAR architecture ensures low power consumption during operation while maintaining high accuracy in signal conversion.
This model has a height of 2.64 mm and a length of 18.08 mm, which supports compact designs.
This unit integrates a single ADC, simplifying system integration for various applications.
It supports a voltage input type, which is standard for most analog signal measurements.
The ADS8505IDW is manufactured in India, as indicated by its country of origin.
It is ideal for applications in instrumentation, industrial automation, and data acquisition systems requiring high-fidelity analog-to-digital conversion.
