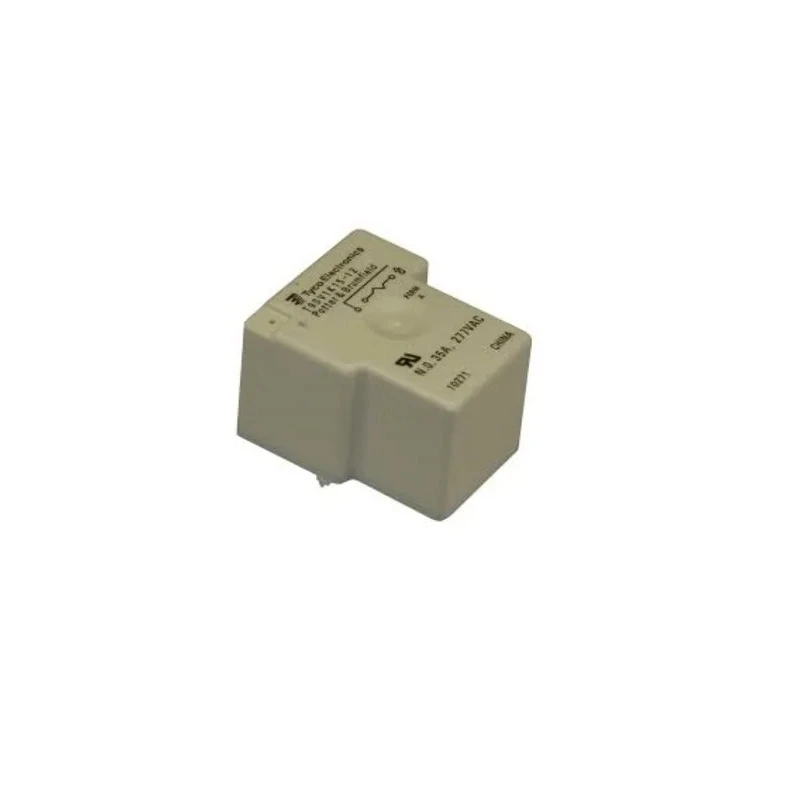

TE Connectivity T9SV1K15-12 Power Relay 12V DC Coil 35A Switching Current SPST PCB Mount
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Height | 32.5mm |
| Length | 27.4mm |
| Model | T9SV1K15-12 |
| Width | 20.4mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | T9S |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 35A |
| Terminal type | PCB Pin |
| Contact Resistance | 75mΩ |
| Standards/Approvals | CE, RoHS |
| Coil Resistance | 64Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 277V ac |
| Coil Power | 2.25W |
Key Features
- Coil voltage of 12V DC ensures efficient operation.
- Supports a high switching current of 35A, ideal for demanding electrical loads.
- Single Pole Single Throw (SPST) contact configuration for straightforward switching.
- Compact dimensions of 27.4mm length, 20.4mm width, and 32.5mm height enable easy PCB integration.
- Operates reliably within a temperature range of -40°C to 85°C.
- Silver alloy contacts provide excellent conductivity and durability.
- Coil resistance of 64 ohms with a coil power rating of 2.25W.
- Contact resistance is low at 75 milliohms to minimize losses.
Product Description
TE Connectivity T9SV1K15-12 power relay is a high-performance component designed for industrial and commercial electrical applications requiring reliable switching capabilities. Featuring a 12V DC coil and a robust 35A switching current, this SPST relay is mounted directly on PCBs, making it suitable for compact designs.
The relay's dimensions are 27.4mm in length, 20.4mm in width, and 32.5mm in height, allowing it to fit easily into various electronic assemblies. It operates efficiently across a wide temperature range from -40°C to 85°C, suitable for a variety of challenging environments.
Constructed with silver alloy contacts, the relay ensures superior electrical conductivity and longevity. The coil resistance is specified at 64 ohms, consuming 2.25 watts of power during operation, while maintaining a low contact resistance of 75 milliohms, which reduces electrical losses and heat generation.
This relay is commonly used in photovoltaic inverters, electric vehicle charging stations, and other applications where high current switching and reliability are critical. It complies with CE and RoHS standards, guaranteeing environmental and operational safety.
Coil voltage of 12V DC for efficient electromagnetic operation. High switching current capacity of 35A to handle demanding circuits. SPST contact configuration simplifies circuit design. Compact PCB mounting enhances integration into electronic systems.
Wide temperature operating range from -40°C to 85°C for durability. Silver alloy contact material enhances performance durability. Low coil power consumption of 2.25W ensures energy efficiency. Low contact resistance minimizes power loss and heating.
Certified to CE and RoHS standards for safety and compliance. Ideal for industrial and automotive electrical systems. Explore more Power Relays and TE Connectivity products on EnvMart for your electrical and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 12V DC, ensuring efficient electromagnetic operation.
It supports a high switching current of 35A, making it suitable for demanding electrical loads.
The T9SV1K15-12 features a Single Pole Single Throw (SPST) contact configuration, simplifying circuit design.
The relay has compact dimensions of 27.4mm in length, 20.4mm in width, and 32.5mm in height, allowing for easy PCB integration.
It operates reliably within a temperature range of -40°C to 85°C, suitable for various challenging environments.
The coil resistance is specified at 64 ohms, with a coil power rating of 2.25W during operation.
The contact resistance is low at 75 milliohms, which minimizes electrical losses.
The contacts are made of silver alloy, which provides excellent conductivity and durability.
This relay complies with CE and RoHS standards, ensuring environmental and operational safety.
It is designed for PCB mounting, making it suitable for compact electronic assemblies.
It is commonly used in photovoltaic inverters, electric vehicle charging stations, and other applications requiring high current switching.
The T9SV1K15-12 can switch AC voltage up to 277V.
