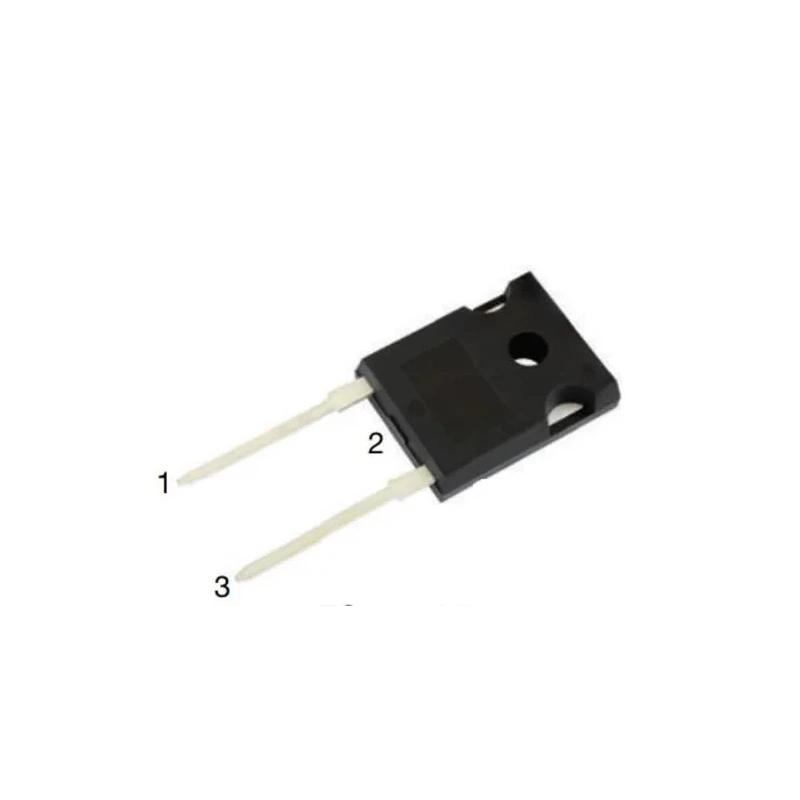

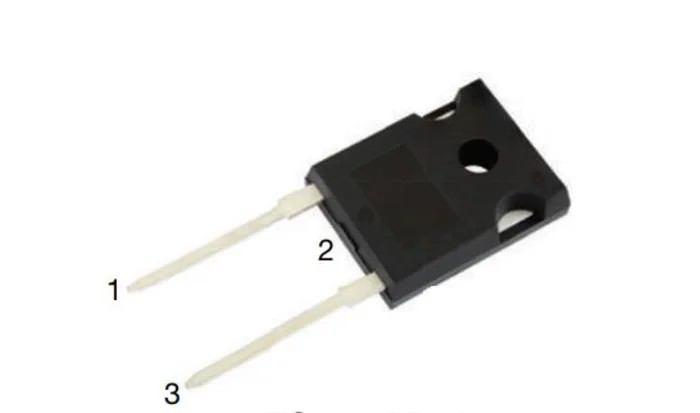

Vishay 600 V 120 A Rectifier & Schottky Diode General Purpose TO-247AD 2L VS-E5PX6006LHN3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | VS-E5PX6006LHN3 |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-247AD 2L |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Maximum Continuous Forward Current If | 120A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 500μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 480A |
| Maximum Forward Voltage Vf | 2.2V |
| Peak Reverse Recovery Time trr | 67ns |
Key Features
- Features a TO-247AD 2L through-hole mount package.
- Maximum forward voltage drop is 2.2 V, optimizing efficiency.
- Handles peak non-repetitive forward surge current of up to 480 A.
- Operates at temperatures ranging from -55°C to 175°C.
- Peak reverse recovery time of 67 ns enables high-speed switching.
- Designed for low conduction and switching losses in power applications.
- RoHS compliant and suitable for medium frequency hard switching converters.
- AEC-Q101 qualified for automotive-grade performance.
Product Description
Vishay VS-E5PX6006LHN3 is a high-performance rectifier and Schottky diode designed for general purpose applications requiring robust current handling and voltage tolerance. It operates at a maximum continuous forward current of 120 A and peak reverse repetitive voltage of 600 V, housed in a durable TO-247AD 2L through-hole package suitable for efficient heat dissipation.
The diode features a low forward voltage drop of 2.2 V and a peak reverse recovery time of 67 nanoseconds, making it ideal for efficient power conversion with reduced losses. It supports peak non-repetitive forward surge currents of up to 480 A and can function reliably within a temperature range from -55°C up to 175°C, supporting harsh industrial and automotive environments.
This device is optimized for high-speed operations, perfectly suited for soft-switched and resonant converters, as well as medium frequency hard switching converters. It is commonly used in EV/HEV onboard battery chargers and meets AEC-Q101 standards with JESD 201 class 1A whisker testing, ensuring automotive reliability.
The diode incorporates polyimide passivation and hyperfast switching characteristics, providing a favorable trade-off between conduction and switching losses. Its design enhances efficiency in LLC output rectification stages and similar power electronics applications.
TO-247AD 2L through-hole mounting for robust assembly. 600 V peak reverse voltage rating supports high voltage circuits. 120 A continuous forward current capacity for demanding loads. Low forward voltage drop of 2.2 V reduces power dissipation.
High surge current tolerance up to 480 A enhances reliability. Wide operating temperature range from -55°C to 175°C. Fast switching time of 67 ns enables efficient high-frequency operation. RoHS compliant and automotive qualified for quality assurance.
This Vishay rectifier and Schottky diode is suitable for industrial power supplies, automotive battery chargers, power management in commercial electronics, and laboratory equipment designs. It supports applications in manufacturing, automotive, and renewable energy sectors requiring reliable, high-performance semiconductor diodes.
Explore the full Vishay range of diodes and semiconductors in the Electronics & Electricals category at EnvMart for professional industrial solutions.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 120 A, making it suitable for demanding loads in various applications.
This diode has a peak reverse repetitive voltage rating of 600 V, allowing it to handle high voltage circuits effectively.
The maximum forward voltage drop for this unit is 2.2 V, which helps optimize efficiency in power applications.
It can handle a peak non-repetitive forward surge current of up to 480 A, enhancing its reliability in transient conditions.
This diode operates within a temperature range of -55°C to 175°C, making it suitable for harsh industrial and automotive environments.
The peak reverse recovery time for this diode is 67 ns, enabling efficient high-speed switching operations.
It features a TO-247AD 2L through-hole mount package, which is designed for efficient heat dissipation during operation.
Yes, this diode is RoHS compliant, ensuring it meets environmental standards for hazardous substances.
The diode configuration is single, which is typical for general-purpose applications.
This model is suitable for applications such as EV/HEV onboard battery chargers, industrial power supplies, and power management in commercial electronics.
It is AEC-Q101 qualified, ensuring it meets automotive-grade performance standards and reliability requirements.
The peak reverse current for this diode is rated at 500 μA, which is important for its operational limits in various applications.
