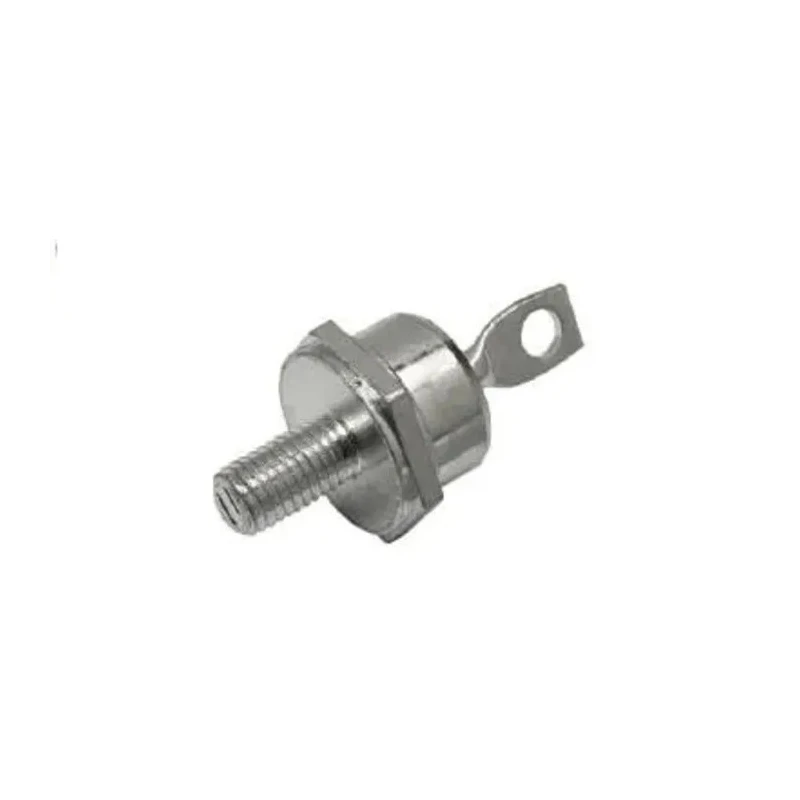

Vishay 1200 V 40 A Switching Diode 2-Pin DO-203AB VS-40HFR120M
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 17.4mm |
| Brand | Vishay |
| Height | 22.9mm |
| Length | 20.02mm |
| Model | VS-40HFR120M |
| Width | 17.35mm |
| Mount Type | Screw |
| Series | VS-40HF(R) |
| Maximum Operating Temperature | 190°C |
| Package Type | DO-203AB |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 40A |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Diode Configuration | Stud Anode |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 9mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 595A |
| Maximum Forward Voltage Vf | 1.3V |
| Vishay 1400 V 40 A Diode Switching 2-Pin DO-203ABBrand | Vishay |
Key Features
- The diode supports stud anode configuration with screw mount type.
- Maximum forward voltage is 1.3 V for efficient switching performance.
- It has a peak reverse repetitive voltage rating of 1200 V.
- Peak non-repetitive forward surge current capability is 595 A.
- Operating temperature ranges from -65°C to 190°C, suitable for harsh environments.
- The diode height measures 22.9 mm, with length 20.02 mm and width 17.35 mm for compact mounting.
- Pin count is 2, ideal for discrete semiconductor circuits.
- It is designed for high surge current applications with a 9 mA peak reverse current.
Product Description
Vishay VS-40HFR120M is a high-performance switching diode rated for 1200 V peak reverse voltage and 40 A maximum continuous forward current. Packaged in a 2-pin DO-203AB format with stud anode configuration, it ensures reliable operation in demanding semiconductor applications. Its screw mount type allows secure and convenient installation in electronic circuits.
Notably, the diode features a low maximum forward voltage of 1.3 V, minimizing power loss and enhancing efficiency in switching tasks. The device supports a wide operating temperature range from -65°C up to 190°C, making it suitable for industrial, power electronics, and other harsh environment applications.
Physically, the diode dimensions include a height of 22.9 mm, length of 20.02 mm, diameter of 17.4 mm, and width of 17.35 mm, fitting compact circuit layouts. With a peak non-repetitive forward surge current rating of 595 A, it effectively handles high transient currents without damage.
The diode supports stud anode configuration with screw mount type. Maximum forward voltage is 1.3 V for efficient switching performance. It has a peak reverse repetitive voltage rating of 1200 V. Peak non-repetitive forward surge current capability is 595 A.
Operating temperature ranges from -65°C to 190°C, suitable for harsh environments. The diode height measures 22.9 mm, with length 20.02 mm and width 17.35 mm for compact mounting. Pin count is 2, ideal for discrete semiconductor circuits.
It is designed for high surge current applications with a 9 mA peak reverse current.
This diode is widely used in industrial power electronics, electronic component assemblies, and semiconductor switching circuits. Its robust construction and wide ratings meet demanding application needs reliably.
Explore the Vishay series of switching diodes on EnvMart for components tailored to high-performance semiconductor applications.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The diode has a peak reverse repetitive voltage rating of 1200 V.
It is rated for a maximum continuous forward current of 40 A.
The maximum forward voltage is 1.3 V, which helps minimize power loss during operation.
The operating temperature ranges from -65°C to 190°C, making it suitable for harsh environments.
It features a stud anode configuration with a screw mount type for secure installation.
The diode has a height of 22.9 mm, a length of 20.02 mm, and a width of 17.35 mm.
The diode can handle a peak non-repetitive forward surge current of 595 A.
This model has a pin count of 2, making it ideal for discrete semiconductor circuits.
It is packaged in a 2-pin DO-203AB format, suitable for compact circuit layouts.
The peak reverse current is rated at 9 mA.
It is widely used in industrial power electronics, electronic component assemblies, and semiconductor switching circuits.
The country of origin for this diode is India.
