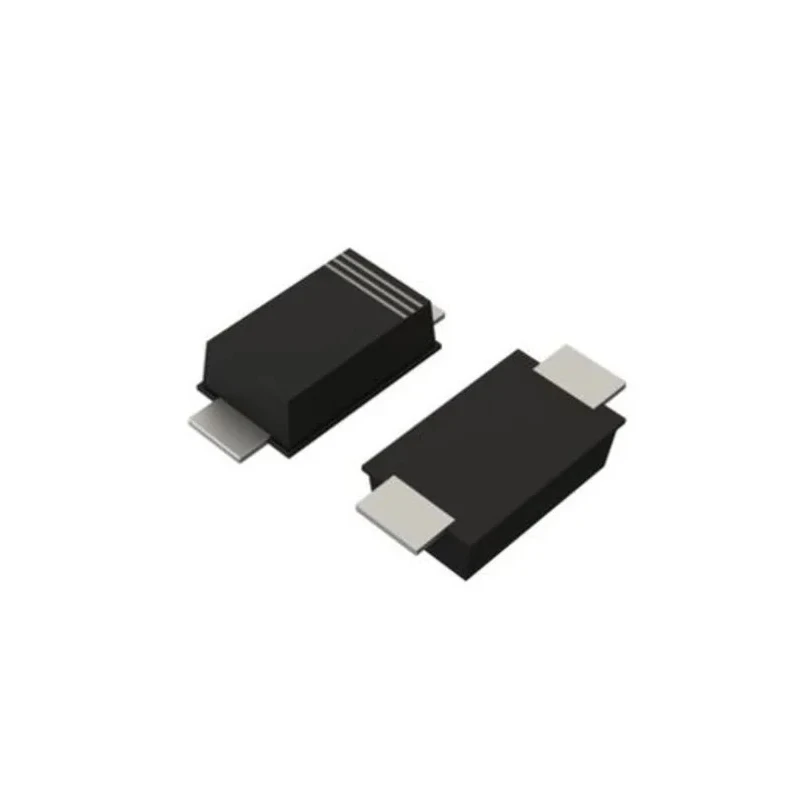

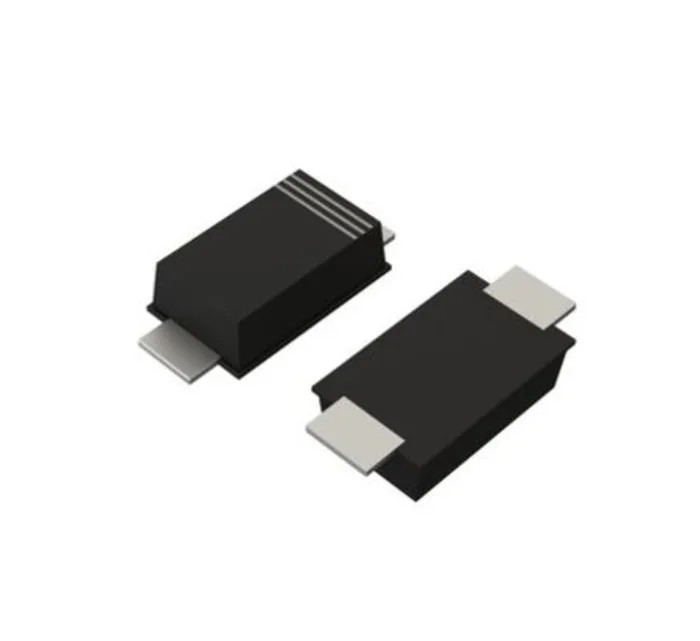

ROHM 40 V 3 A Schottky Diode Surface Mount SOD-123FL RBR3MM40BTFTR
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Height | 0.9mm |
| Length | 2.7mm |
| Model | RBR3MM40BTFTR |
| Width | 1.7mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-123FL |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 100μA |
| Maximum Forward Voltage Vf | 0.58V |
Key Features
- Designed as a single diode configuration for general rectification application.
- Surface mount type with SOD-123FL package ensuring compact installation.
- Maximum continuous forward current of 3 A to support efficient power flow.
- Peak reverse repetitive voltage rated at 40 V for robust reverse voltage handling.
- Peak reverse current of 100 μA minimizing leakage and power loss.
- Low forward voltage drop of 0.58 V enhances efficiency in power circuits.
- Wide operating temperature range from -55°C to 150°C ensures reliability in various environments.
- Meets automotive standard AEC-Q101, suitable for automotive and industrial applications.
Product Description
ROHM RBR3MM40BTFTR is a surface mount Schottky diode designed for efficient rectification and power management in electronic circuits. It features a compact SOD-123FL package suitable for high-density PCB layouts.
This diode supports a maximum continuous forward current of 3 A and peak reverse repetitive voltage of 40 V, making it ideal for managing moderate power loads in automotive, industrial, and consumer electronics environments.
Key electrical characteristics include a low forward voltage drop (Vf) of 0.58 V and a peak reverse current (Ir) of just 100 μA, which contribute to lower power dissipation and improved efficiency.
The diode operates reliably across a wide temperature range from -55°C to 150°C and complies with automotive standard AEC-Q101, assuring robust performance and quality in demanding applications.
Its epitaxial planar type structure and small mold design offer high reliability and make it suitable for general rectification, power supply designs, and automotive circuits. Designed as a single diode configuration for general rectification application.
Surface mount SOD-123FL package ensures compactness and ease of assembly. Maximum continuous forward current of 3 A supports efficient power delivery. Peak reverse repetitive voltage of 40 V safeguards circuit integrity against voltage spikes.
Very low peak reverse current of 100 μA reduces leakage losses. Low forward voltage drop of 0.58 V enhances overall circuit efficiency. Wide operating temperature range (-55°C to 150°C) for versatility across environments.
Certified to automotive standard AEC-Q101 for quality and automotive acceptability.
This ROHM Schottky diode is ideal for applications in power rectification, automotive electronics, industrial equipment, and general electronic design requiring robust, low-loss diode performance.
Explore additional ROHM semiconductor components and electronic devices on EnvMart to meet diverse industrial and commercial requirements.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 3 A, allowing it to support efficient power delivery in various applications.
This diode has a peak reverse repetitive voltage rating of 40 V, which helps safeguard circuit integrity against voltage spikes.
The forward voltage drop of this unit is 0.58 V, contributing to lower power dissipation and improved efficiency in power circuits.
The peak reverse current for this Schottky diode is 100 μA, which minimizes leakage and power loss during operation.
It operates reliably within a wide temperature range from -55°C to 150°C, making it suitable for various environments.
This diode is packaged in a SOD-123FL surface mount type, which ensures compact installation on high-density PCBs.
It meets the automotive standard AEC-Q101, making it suitable for automotive and industrial applications.
This model has a pin count of 2, which is typical for a single diode configuration.
The height of this Schottky diode is 0.9 mm, contributing to its compact design.
The dimensions of this model are 2.7 mm in length, 1.7 mm in width, and 0.9 mm in height.
This diode is manufactured in India, ensuring compliance with specific manufacturing standards.
It is suitable for general rectification, power supply designs, and automotive circuits requiring low-loss diode performance.
