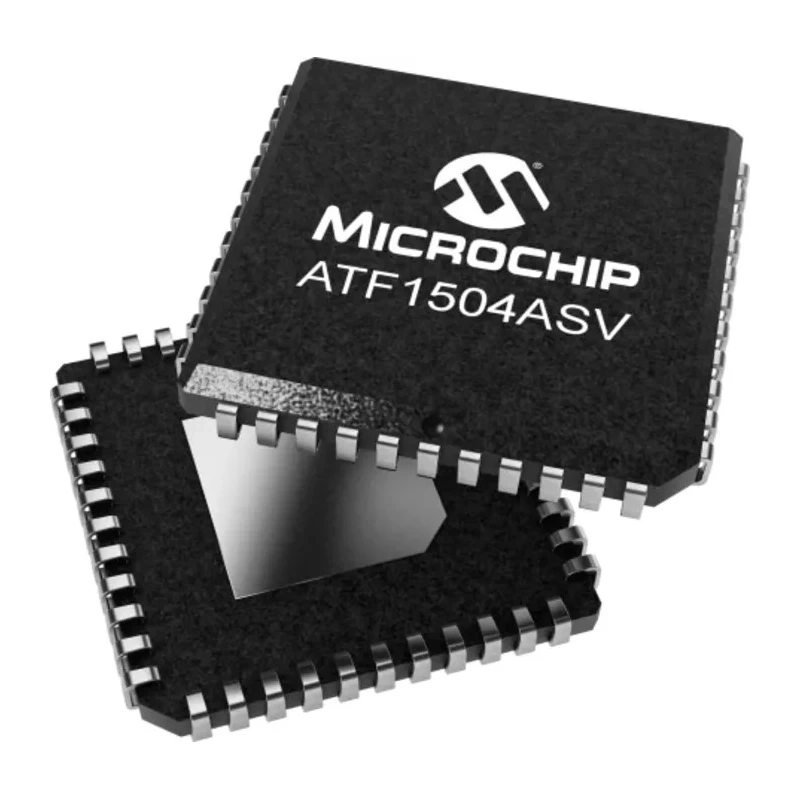

Microchip Complex Programmable Logic Device EEPROM 64 Cells, 64 I/O, 15 ns Propagation Delay, 3-3.6V ATF1504ASV-15AU44

Microchip ATF1504ASV-15AU44 is a high-performance complex programmable logic device (CPLD) incorporating EEPROM memory technology. It features 64 macro cells and 64 user input/output pins, offering versatile logic functions and re-programmability with in-system programming capability. The device supports individual output enable control for enhanced circuit flexibility.

Operating within a supply voltage range of 3 to 3.6 volts, it is housed in a surface-mount TQFP package comprising 44 pins, with compact dimensions of 10 mm length and 1 mm height, making it ideal for space-constrained electronic designs. The programmable logic device functions efficiently at ambient temperatures from -40°C to 85°C and achieves a maximum frequency of 77 MHz, enabling rapid signal processing and logic operations.

This CPLD is mainly used in embedded system design, industrial automation, telecommunications, and electronic component applications. Its EEPROM memory allows for secure electrical erasability and reprogramming, ensuring flexibility in design modifications and system upgrades without physical replacements.

Utilizes EEPROM memory technology for in-system programmability. Operates within 3 to 3.6 V voltage range. Supports up to 64 macro cells and 64 user I/Os. Has a 15 ns maximum propagation delay and 77 MHz operating frequency.

Compact TQFP package with 44 pins and small dimensions. Wide operating temperature range from -40°C to 85°C. Individual output enable control and re-programmability supported. Suitable for industrial, laboratory, and electronic component design applications.

Choose the Microchip ATF1504ASV-15AU44 for reliable complex programmable logic solutions backed by high performance and flexible programmability. Explore similar Programmable Logic ICs and semiconductor products in the EnvMart catalog to find compatible devices and accessories.
